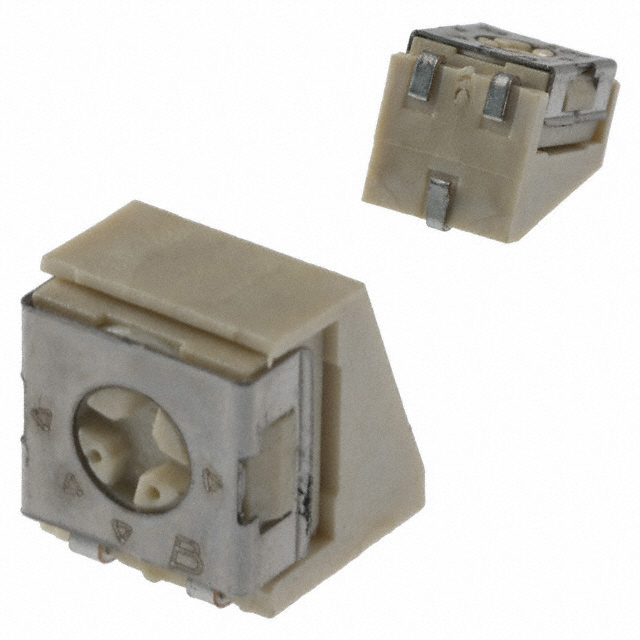

3314Z Series

Catalog

RES CERMET TRIMMER 10K OHM 20% 0.25W(1/4W) 1(ELEC)/1(MECH)TURNS 2.41MM (5.01 X 5.56 X 5.76MM) J-HOOK SMD AUTOMOTIVE AEC-Q200 T/R

Part	Termination Style	Resistance	Mounting Type	Adjustment Type	Power (Watts)	Power (Watts)	Number of Turns	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Resistive Material	Temperature Coefficient
Bourns Inc. 3314Z-1-103G	J Lead	10000 Ohms	Surface Mount	Side Adjustment	0.25 W	0.25 W	1	20 %	0.219 in 5.56 mm	0.197 in 5.01 mm	Cermet	100 ppm/°C
Bourns Inc. 3314Z-1-504E	J Lead		Surface Mount	Side Adjustment	0.25 W	0.25 W	1	20 %	0.219 in 5.56 mm	0.197 in 5.01 mm	Cermet	100 ppm/°C
Bourns Inc. 3314Z-1-501G	J Lead	0.5 kOhms	Surface Mount	Side Adjustment	0.25 W	0.25 W	1	20 %	0.219 in 5.56 mm	0.197 in 5.01 mm	Cermet	100 ppm/°C
Bourns Inc. 3314Z-1-502G	J Lead	5 kOhms	Surface Mount	Side Adjustment	0.25 W	0.25 W	1	20 %	0.219 in 5.56 mm	0.197 in 5.01 mm	Cermet	100 ppm/°C
Bourns Inc. 3314Z-1-100E	J Lead	10 Ohms	Surface Mount	Side Adjustment	0.25 W	0.25 W	1	20 %	0.219 in 5.56 mm	0.197 in 5.01 mm	Cermet	100 ppm/°C
Bourns Inc. 3314Z-GA4-101E	J Lead	100 Ohms	Surface Mount	Side Adjustment	0.25 W	0.25 W	1	20 %	0.219 in 5.56 mm	0.197 in 5.01 mm	Cermet	100 ppm/°C
Bourns Inc. 3314Z-1-102G	J Lead	1000 Ohms	Surface Mount	Side Adjustment	0.25 W	0.25 W	1	20 %	0.219 in 5.56 mm	0.197 in 5.01 mm	Cermet	100 ppm/°C
Bourns Inc. 3314Z-GA4-502E	J Lead	5 kOhms	Surface Mount	Side Adjustment	0.25 W	0.25 W	1	20 %	0.219 in 5.56 mm	0.197 in 5.01 mm	Cermet	100 ppm/°C
Bourns Inc. 3314Z-GA4-503E	J Lead	50000 Ohms	Surface Mount	Side Adjustment	0.25 W	0.25 W	1	20 %	0.219 in 5.56 mm	0.197 in 5.01 mm	Cermet	100 ppm/°C
Bourns Inc. 3314Z-1-104E	J Lead	100 kOhms	Surface Mount	Side Adjustment	0.25 W	0.25 W	1	20 %	0.219 in 5.56 mm	0.197 in 5.01 mm	Cermet	100 ppm/°C
