AWHW 40 Series

Catalog

CONN HEADER R/A 40POS 2.54MM

Part	Contact Finish - Post	Shrouding	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Fastening Type	Connector Type	Insulation Height [z]	Insulation Height [z]	Insulation Material	Contact Finish - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Material	Number of Rows [custom]	Insulation Color	Mounting Type	Contact Shape	Contact Length - Post	Contact Length - Post	Termination	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating

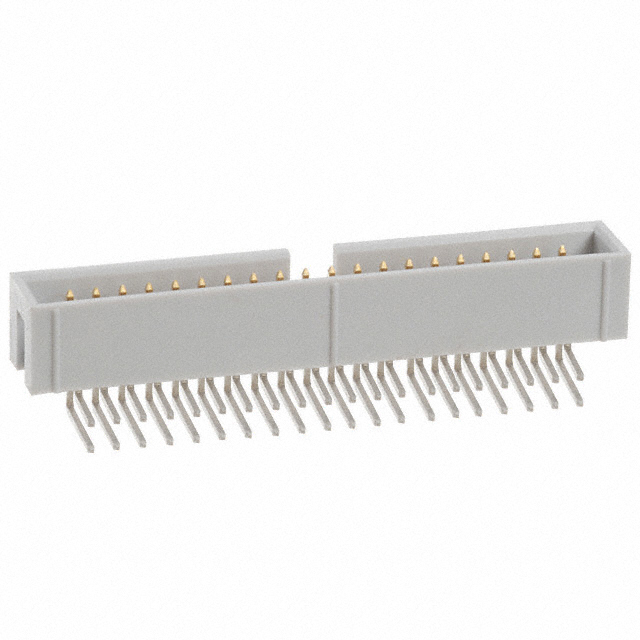

Assmann WSW Components AWHW 40A-0102-T	Tin	Shrouded - 4 Wall	UL94 V-0	0.1 in	2.54 mm	Board to Cable/Wire	Keying Slot	-40 C	105 ░C	All	Push-Pull	Header	0.352 in	8.95 mm	Polybutylene Terephthalate (PBT) Glass Filled	Gold	40	0.224 in	5.7 mm	3 A	Brass	2	Gray	Right Angle Through Hole	Square	0.124 in	3.15 mm	Solder	Male Pin	0.1 "	2.54 mm	0.76 Ám	30 Áin

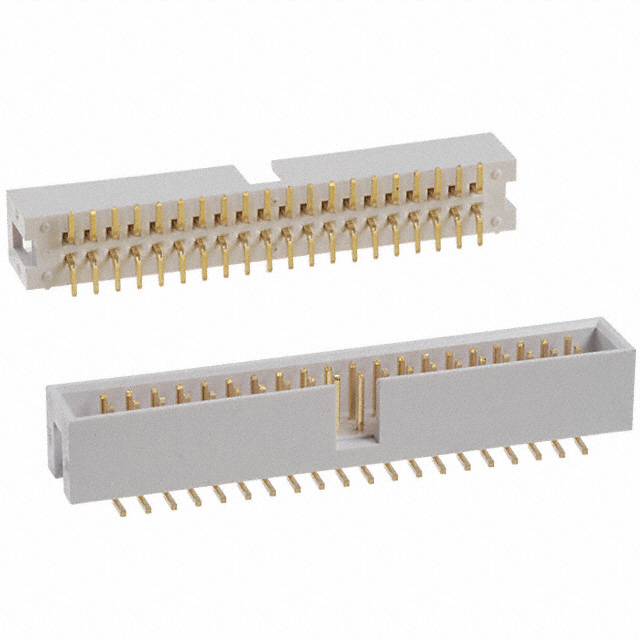

Assmann WSW Components AWHW 40G-SMD		Shrouded - 4 Wall	UL94 V-0	0.1 in	2.54 mm	Board to Cable/Wire	Keying Slot Pick and Place	-40 C	105 ░C	All	Push-Pull	Header			Glass Filled Nylon 9T Polyamide (PA9T)	Gold	40	0.232 in	5.9 mm	3 A	Brass	2	Black	Surface Mount	Square			Solder	Male Pin	0.1 "	2.54 mm			Flash	0.354 in	9 mm
Assmann WSW Components AWHW 40A-0202-T	Tin	Shrouded - 4 Wall	UL94 V-0	0.1 in	2.54 mm	Board to Cable/Wire	Keying Slot	-40 C	105 ░C	All	Push-Pull	Header	0.352 in	8.95 mm	Polybutylene Terephthalate (PBT) Glass Filled	Gold	40	0.224 in	5.7 mm	3 A	Brass	2	Gray	Right Angle Through Hole	Square	0.124 in	3.15 mm	Solder	Male Pin	0.1 "	2.54 mm			Flash
Assmann WSW Components AWHW 40G-SMD-200		Shrouded - 4 Wall	UL94 V-0			Board to Cable/Wire	Keying Slot Pick and Place	-40 C	105 ░C	All	Push-Pull	Header			Glass Filled Nylon 9T Polyamide (PA9T)	Gold	40	0.157 in	4 mm	1.5 A	Brass	2	Black	Surface Mount	Square			Solder	Male Pin	0.079 "	2 mm			Flash	0.226 in	5.74 mm	2 mm	0.079 in
