LCA250 Series

Catalog

250 KCMIL CABLE, 45 ANGLE TONGUE, 3/8" BOLT HOLE ROHS COMPLIANT: YES

Part	Tab Thickness	Tab Thickness	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Wire Gauge	Wire Gauge	Terminal Style	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Stud/Tab Size	Contact Finish	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Contact Material	Mounting Type	Color	Insulation	Terminal Type	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Diameter - Ring ID [diameter]
Panduit Corp LCA250-38H-X	0.14 "	3.56 mm	16 mm	0.63 in	250 kcmil	250 MCM	Single Stud Hole	1.17 in	29.72 mm	Barrel Crimp	0.77 "	19.56 mm	3/8 Stud	Electro-Tin	10.41 mm	0.41 "	Copper	45° Angle Free Hanging (In-Line)	Yellow	Non-Insulated	Rectangular Tongue

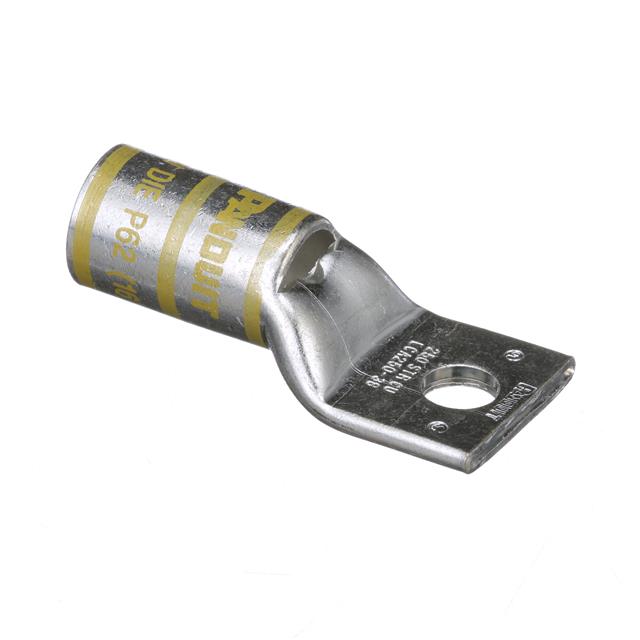

Panduit Corp LCA250-38-X	0.14 "	3.56 mm	16 mm	0.63 in	250 kcmil	250 MCM	Single Stud Hole	1.17 in	29.72 mm	Barrel Crimp	0.77 "	19.56 mm	3/8 Stud	Electro-Tin	10.41 mm	0.41 "	Copper	Free Hanging (In-Line)	Yellow	Non-Insulated	Rectangular Tongue	64.52 mm	2.54 in

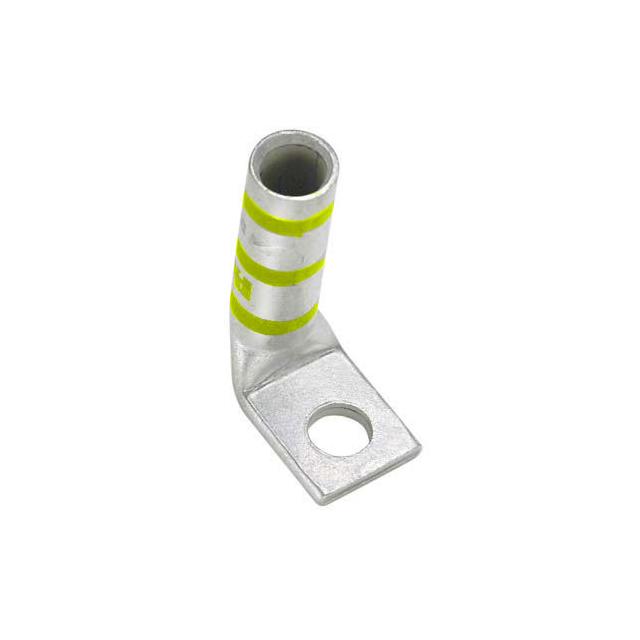

Panduit Corp LCA250-38F-X	0.14 "	3.56 mm	16 mm	0.63 in	250 kcmil	250 MCM	Single Stud Hole	1.17 in	29.72 mm	Barrel Crimp	0.77 "	19.56 mm	3/8 Stud	Electro-Tin	10.41 mm	0.41 "	Copper	Free Hanging (In-Line) Right Angle	Yellow	Non-Insulated	Rectangular Tongue

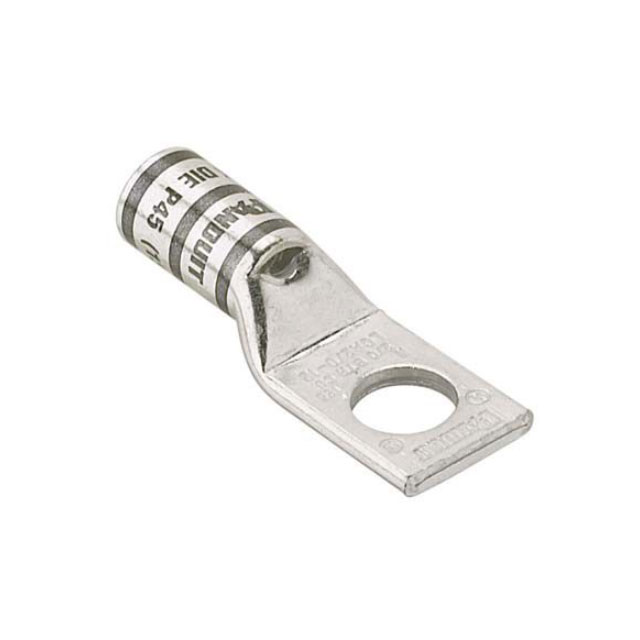

Panduit Corp LCA250-56-X	0.14 "	3.56 mm	16 mm	0.63 in	250 kcmil	250 MCM	Single Stud Hole	1.17 in	29.72 mm	Barrel Crimp	0.77 "	19.56 mm		Electro-Tin	0.34 in		Copper	Free Hanging (In-Line)	Yellow	Non-Insulated	Rectangular Tongue	62.74 mm	2.47 in	0.3125 Stud	8.64 mm
