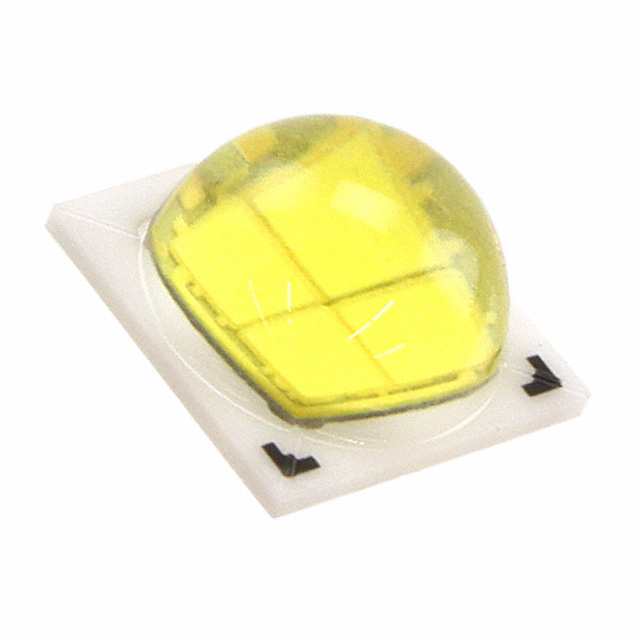

LXR7 Series

Manufacturer: Lumileds

Catalog

LED LUXEON COOL WHITE 5700K 2828

Part	Thermal Resistance of Package	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Lumens/Watt @ Current - Test	Viewing Angle	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Color	Flux @ 85°C, Current - Test	Package / Case	Supplier Device Package	Current - Test
Lumileds LXR7-SW57-K	1.25 °C/W	Surface Mount	0.152 in	3.87 mm	0.276 "	0.276 in	7 mm	7 mm	5700 K	142 lm/W	120 °	70	11.2 V	1.2 A	Cool White	1110 lm	2828 (7070 Metric)	2828
Lumileds LXR7-SW65-1160	1.25 °C/W	Surface Mount	0.152 in	3.87 mm	0.276 "	0.276 in	7 mm	7 mm	6500 K	144 lm/W	120 °	70	11.2 V	1.2 A	Cool White	1130 lm	2828 (7070 Metric)	2828
Lumileds LXR7-SW40-1160	1.25 °C/W	Surface Mount	0.152 in	3.87 mm	0.276 "	0.276 in	7 mm	7 mm	4000 K	137 lm/W	120 °	70	11.2 V	1.2 A	Neutral White	1076 lm	2828 (7070 Metric)	2828
Lumileds LXR7-RW65-1160	1.25 °C/W	Surface Mount	0.152 in	3.87 mm	0.276 "	0.276 in	7 mm	7 mm	6500 K	144 lm/W	120 °	70	5.6 V	2.4 A	Cool White	1130 lm	2828 (7070 Metric)	2828
Lumileds LXR7-SW50-1160	1.25 °C/W	Surface Mount	0.152 in	3.87 mm	0.276 "	0.276 in	7 mm	7 mm	5000 K	140 lm/W	120 °	70	11.2 V	1.2 A	Cool White	1100 lm	2828 (7070 Metric)	2828
Lumileds LXR7-QW65	1.25 °C/W	Surface Mount	0.152 in	3.87 mm	0.276 "	0.276 in	7 mm	7 mm	6500 K	135 lm/W	120 °	70	2.8 V	4.8 A	Cool White	1060 lm	2828 (7070 Metric)		2.8 A
Lumileds LXR7-SW50-K	1.25 °C/W	Surface Mount	0.152 in	3.87 mm	0.276 "	0.276 in	7 mm	7 mm	5000 K	140 lm/W	120 °	70	11.2 V	1.2 A	Cool White	1100 lm	2828 (7070 Metric)	2828
Lumileds LXR7-SW57-1160	1.25 °C/W	Surface Mount	0.152 in	3.87 mm	0.276 "	0.276 in	7 mm	7 mm	5700 K	142 lm/W	120 °	70	11.2 V	1.2 A	Cool White	1110 lm	2828 (7070 Metric)	2828
Lumileds LXR7-RW50-1160	1.25 °C/W	Surface Mount	0.152 in	3.87 mm	0.276 "	0.276 in	7 mm	7 mm	5000 K	140 lm/W	120 °	70	5.6 V	2.4 A	Cool White	1100 lm	2828 (7070 Metric)	2828
Lumileds LXR7-RW57-1160	1.25 °C/W	Surface Mount	0.152 in	3.87 mm	0.276 "	0.276 in	7 mm	7 mm	5700 K	142 lm/W	120 °	70	5.6 V	2.4 A	Cool White	1110 lm	2828 (7070 Metric)	2828
