EMMA240125 Series
Manufacturer: CUI Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

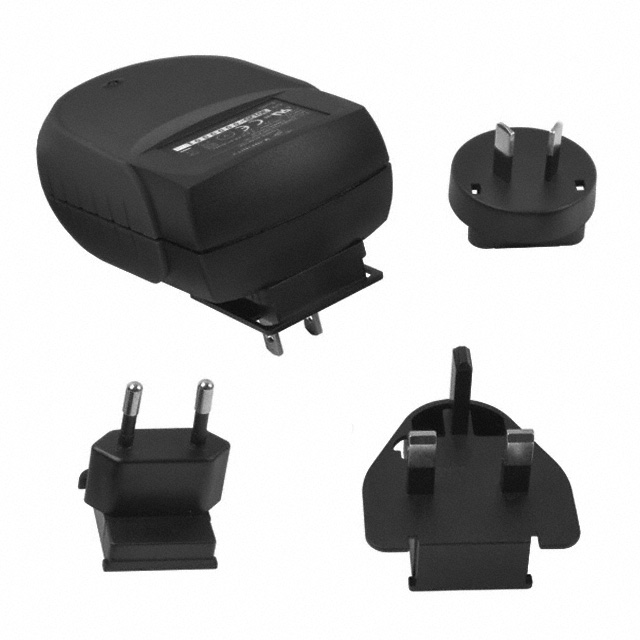

AC/DC WALL MOUNT ADAPTER 24V 30W
| Part | Current - Output (Max) | Efficiency | Region Utilized | No Load Power Consumption (Max) | Form | Approval Agency | Output Connector O.D. | Output Connector | Output Connector I.D. | Output Connector Length | Input Type | Applications | Input Connector | Weight | Polarization | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Cord Length | Size / Dimension Height | Size / Dimension Width | Size / Dimension Length | Power (Watts) | Standard Number | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 1.25 A | Level V | International | 300 mW | Wall Mount (Class II) | EN FCC SIQ TUV UL | 5.5 mm | Barrel Plug R/A | 2.5 mm | 9.5 mm | Multi-Blade (Included) | Medical | Multi-Blade | 0.662 lb | Positive Center | 90 V | 264 V | 70.9 in | 1.45 in | 2.44 in | 4.28 in | 30 W | 55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1 | 40 °C | 0 °C | 24 V |
CUI Inc. | 1.25 A | Level V | International | 300 mW | Wall Mount (Class II) | EN FCC SIQ TUV UL | 5.5 mm | Barrel Plug | 2.5 mm | 9.5 mm | Multi-Blade (Included) | Medical | Multi-Blade | 0.662 lb | Positive Center | 90 V | 264 V | 70.9 in | 1.45 in | 2.44 in | 4.28 in | 30 W | 55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1 | 40 °C | 0 °C | 24 V |
CUI Inc. | 1.25 A | Level V | International | 300 mW | Wall Mount (Class II) | EN FCC SIQ TUV UL | 5.5 mm | Barrel Plug R/A | 2.1 mm | 9.5 mm | Multi-Blade (Included) | Medical | Multi-Blade | 0.662 lb | Positive Center | 90 V | 264 V | 70.9 in | 1.45 in | 2.44 in | 4.28 in | 30 W | 55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1 | 40 °C | 0 °C | 24 V |
