T496 Series

Manufacturer: KEMET

Catalog

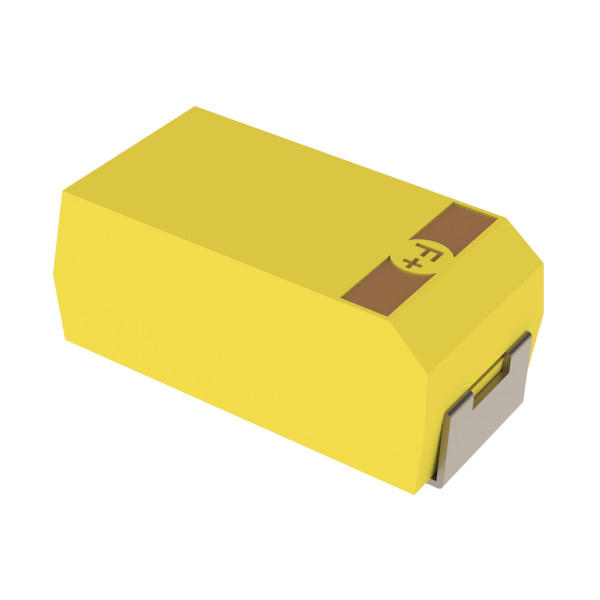

CAP TANT SOLID 47UF 16V X CASE 20% (7.3 X 4.3 X 4MM) INWARD L SMD 7343-43 0.9 OHM 125°C T/R

Part	Type	Capacitance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Tolerance	ESR (Equivalent Series Resistance)	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Manufacturer Size Code	Features	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case
KEMET T496X476M016ATE900	Molded	47 µF	Surface Mount	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	20 %	900 mOhm	2917 (7343 Metric)	0.169 in	4.3 mm	X	Fail Safe with Built-in Fuse	16 V
KEMET T496C105M050ATE2K7	Molded	1 µF	Surface Mount	-55 C	125 °C	0.126 in	6 mm	0.236 in	3.2 mm	2000 Hrs	20 %	2.7 Ohm	2312 (6032 Metric)				General Purpose	50 VDC
KEMET T496C475K025AHE2K5	Molded	4.7 µF	Surface Mount	-55 C	125 °C	0.126 in	6 mm	0.236 in	3.2 mm	2000 Hrs	10 %	2.5 Ohm	2312 (6032 Metric)				General Purpose	25 VDC
KEMET T496D157M010ATE700	Molded	150 µF	Surface Mount	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	20 %	700 mOhm	2917 (7343 Metric)			D	General Purpose	10 V	0.122 in	3.1 mm
KEMET T496B685M010ATE3K5	Molded	6.8 µF	Surface Mount	-55 C	125 °C	0.11 "	3.5 mm	0.138 in	2.8 mm	2000 Hrs	20 %	3.5 Ohm	1411			B	General Purpose	10 V	0.083 in	2.1 mm	3528 Metric
KEMET T496B225M016AHE3K5	Molded	2.2 µF	Surface Mount	-55 C	125 °C	0.11 "	3.5 mm	0.138 in	2.8 mm	2000 Hrs	20 %	3.5 Ohm	1411			B	General Purpose	16 V	0.083 in	2.1 mm	3528 Metric
KEMET T496C476K010AHE400	Molded	47 µF	Surface Mount	-55 C	125 °C	0.126 in	6 mm	0.236 in	3.2 mm	2000 Hrs	10 %	400 mOhm	2312 (6032 Metric)				General Purpose	10 V
KEMET T496D685K035AHE750	Molded	6.8 µF	Surface Mount	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	10 %	750 mOhm	2917 (7343 Metric)			D	General Purpose	35 V	0.122 in	3.1 mm
KEMET T496B474K035ATE2K6	Molded	0.47 µF	Surface Mount	-55 C	125 °C	0.11 "	3.5 mm	0.138 in	2.8 mm	2000 Hrs	10 %	2.6 Ohm	1411			B	General Purpose	35 V	0.083 in	2.1 mm	3528 Metric
KEMET T496C476K010ATE400	Molded	47 µF	Surface Mount	-55 C	125 °C	0.126 in	6 mm	0.236 in	3.2 mm	2000 Hrs	10 %	400 mOhm	2312 (6032 Metric)				General Purpose	10 V
