FX23RS Series

Catalog

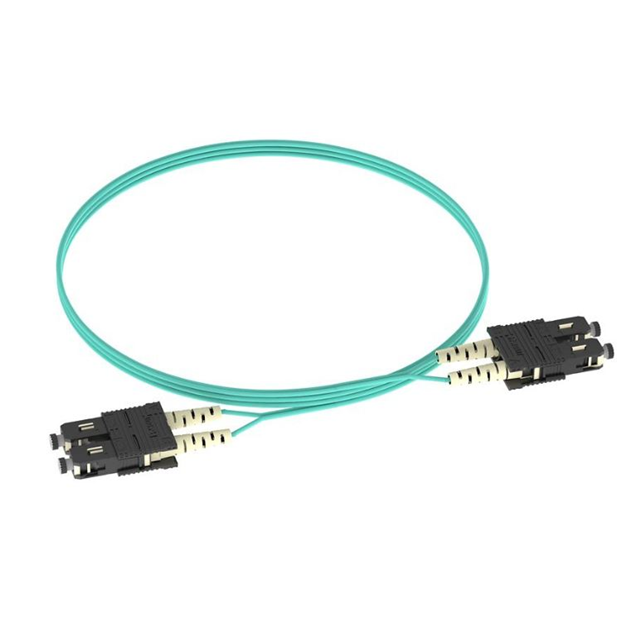

FIBER OPTIC CABLE ASSEMBLIES OM3 2F 3MM PC OFNR SC DUP / SC DUP STD P

Part	Insertion Loss	Bend Radius [radius]	Return Loss	Color - Connectors	Operating Temperature [Min]	Operating Temperature [Max]	Cable Diameter [diameter]	Cable Diameter [diameter]	1st Connector	Cable Type	Length - Overall [x]	Length - Overall [x]	Type	2nd Connector	Fiber Type	Length - Overall	Length - Overall
Panduit Corp FX23RSNSNSNM046	0.25 dB	29 mm	26 dB	Black	-20 ░C	70 °C	3 mm	0.12 in	SC Duplex	Buffered Fiber	46 m	150.9 ft	Duplex Multimode OM3	SC Duplex	50/125
Panduit Corp FX23RSNSNSNM032	0.25 dB	29 mm	26 dB	Black	-20 ░C	70 °C	3 mm	0.12 in	SC Duplex	Buffered Fiber	32 m	105 ft	Duplex Multimode OM3	SC Duplex	50/125
Panduit Corp FX23RSNSNSNM029	0.25 dB	29 mm	26 dB	Black	-20 ░C	70 °C	3 mm	0.12 in	SC Duplex	Buffered Fiber			Duplex Multimode OM3	SC Duplex	50/125
Panduit Corp FX23RSNSNSNF050	0.25 dB	29 mm	26 dB	Black	-20 ░C	70 °C	3 mm	0.12 in	SC Duplex	Buffered Fiber			Duplex Multimode OM3	SC Duplex	50/125	15.2 m	50 ft
Panduit Corp FX23RSNSNSNF045	0.25 dB	29 mm	26 dB	Black	-20 ░C	70 °C	3 mm	0.12 in	SC Duplex	Buffered Fiber	13.7 m	45 ft	Duplex Multimode OM3	SC Duplex	50/125
Panduit Corp FX23RSNSNSNM014	0.25 dB	29 mm	26 dB	Black	-20 ░C	70 °C	3 mm	0.12 in	SC Duplex	Buffered Fiber	14 m	45.9 ft	Duplex Multimode OM3	SC Duplex	50/125
Panduit Corp FX23RSNSNSNF040	0.25 dB	29 mm	26 dB	Black	-20 ░C	70 °C	3 mm	0.12 in	SC Duplex	Buffered Fiber	12.2 m	40 ft	Duplex Multimode OM3	SC Duplex	50/125
Panduit Corp FX23RSNSNSNM1.5	0.25 dB	29 mm	26 dB	Black	-20 ░C	70 °C	3 mm	0.12 in	SC Duplex	Buffered Fiber	1.5 m	4.9 ft	Duplex Multimode OM3	SC Duplex	50/125
Panduit Corp FX23RSNSNSNF065	0.25 dB	29 mm	26 dB	Black	-20 ░C	70 °C	3 mm	0.12 in	SC Duplex	Buffered Fiber	19.8 m	65 ft	Duplex Multimode OM3	SC Duplex	50/125
Panduit Corp FX23RSNSNSNM4.5	0.25 dB	29 mm	26 dB	Black	-20 ░C	70 °C	3 mm	0.12 in	SC Duplex	Buffered Fiber			Duplex Multimode OM3	SC Duplex	50/125	4.5 m	14.8 ft
