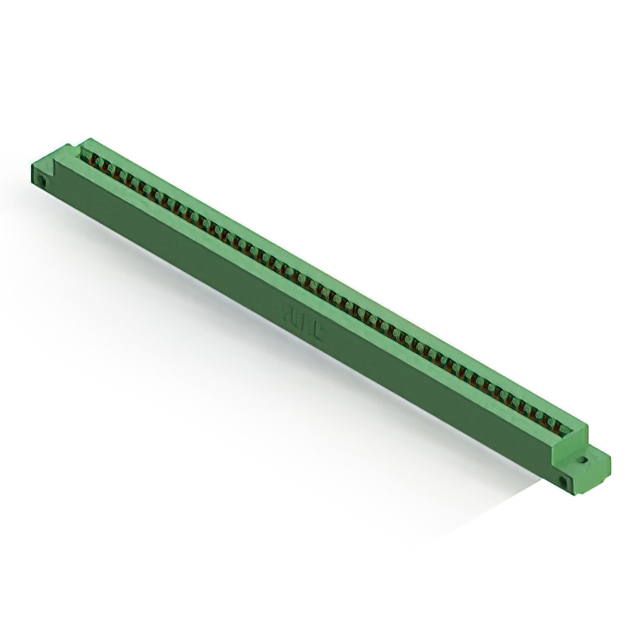

306-040 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 40 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Number of Rows [custom] | Contact Material | Termination | Read Out | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Features | Number of Positions | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Color | Gender | Number of Positions/Bay/Row [custom] | Mounting Type | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 2 | Copper Alloy | Solder | Dual | Gold | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | 80 | Non Specified - Dual Edge | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Green | Female | 40 | Panel Mount Through Hole | 3.96 mm | 0.156 in | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 2 | Copper Alloy | Solder | Dual | Gold | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 80 | Non Specified - Dual Edge | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | Green | Female | 40 | Panel Mount Through Hole | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 2 | Copper Alloy | Solder | Dual | Gold | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 80 | Non Specified - Dual Edge | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | Green | Female | 40 | Panel Mount Through Hole | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 2 | Copper Alloy | Solder Eyelet(s) | Dual | Tin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 80 | Non Specified - Dual Edge | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Green | Female | 40 | Panel Mount | 3.96 mm | 0.156 in | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 2 | Copper Alloy | Solder | Dual | Tin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | 80 | Non Specified - Dual Edge | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Green | Female | 40 | Panel Mount Through Hole | 3.96 mm | 0.156 in | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 2 | Copper Alloy | Solder | Dual | Gold | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 80 | Non Specified - Dual Edge | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | Green | Female | 40 | Panel Mount Through Hole | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 2 | Copper Alloy | Solder | Dual | Tin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | 80 | Non Specified - Dual Edge | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Green | Female | 40 | Panel Mount Through Hole | 3.96 mm | 0.156 in | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 2 | Copper Alloy | Solder | Dual | Tin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 80 | Non Specified - Dual Edge | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | Green | Female | 40 | Panel Mount Through Hole | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 2 | Copper Alloy | Solder | Dual | Tin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 80 | Non Specified - Dual Edge | -40 C | 105 ░C | Floating Bobbin Flush Mount | Green | Female | 40 | Panel Mount Through Hole | 3.96 mm | 0.156 in | 0.116 " | 2.95 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 2 | Copper Alloy | Solder | Dual | Tin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | 80 | Non Specified - Dual Edge | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Green | Female | 40 | Panel Mount Through Hole | 3.96 mm | 0.156 in |
