115-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC DIP SOCKET 14POS GOLD

Part	Contact Finish - Post	Contact Finish - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid)	Mounting Type	Contact Material - Post	Features	Contact Material - Mating	Termination Post Length [x]	Termination Post Length [x]	Type	Type	Type	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Resistance	Material Flammability Rating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Termination Post Length	Termination Post Length

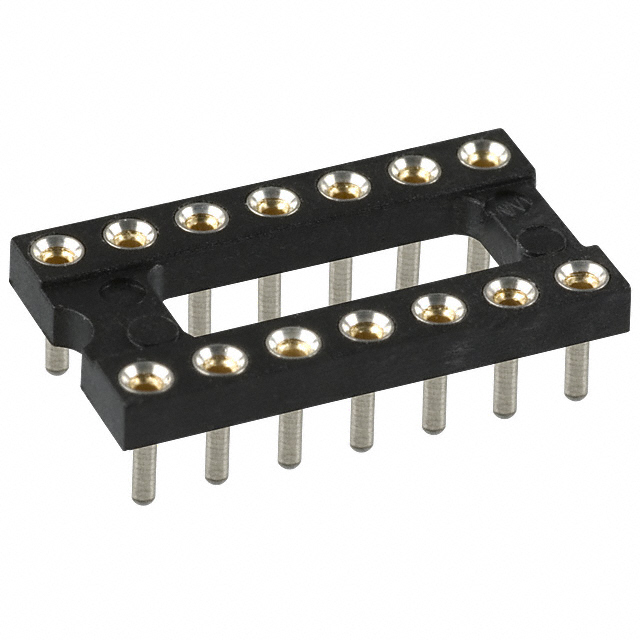

Mill-Max Manufacturing Corp. 115-43-314-41-003000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in	14	Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm

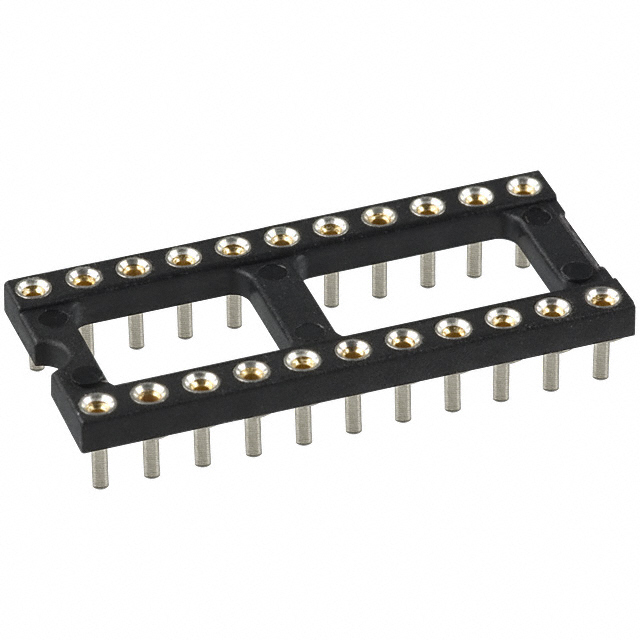

Mill-Max Manufacturing Corp. 115-43-422-41-003000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in	22	Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.4 in	10.16 mm	DIP	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 115-43-624-41-001000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in	24	Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.6 in	15.24 mm	DIP	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 115-43-632-61-001000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in		Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.6 in	15.24 mm	DIP	0.1 in	2.54 mm	2 x 16	32	10 mOhm	UL94 V-0

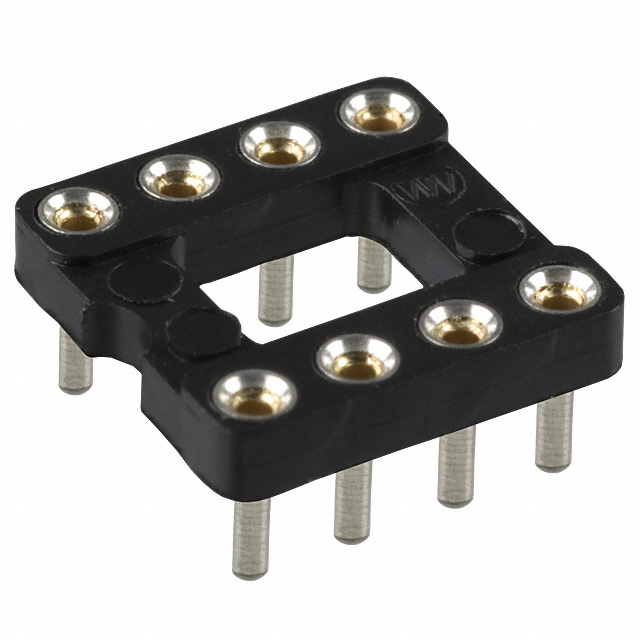

Mill-Max Manufacturing Corp. 115-43-308-41-003000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in	8	Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 115-43-322-61-001000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in	22	Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm			10 mOhm	UL94 V-0
Mill-Max Manufacturing Corp. 115-43-650-61-001000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in		Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.6 in	15.24 mm	DIP	0.1 in	2.54 mm			10 mOhm	UL94 V-0	25	2	50
Mill-Max Manufacturing Corp. 115-43-422-61-003000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in	22	Through Hole	Brass Alloy	Open Frame	Beryllium Copper			0.4 in	10.16 mm	DIP	0.1 in	2.54 mm			10 mOhm	UL94 V-0				2.41 mm	0.095 in
Mill-Max Manufacturing Corp. 115-43-432-61-001000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in		Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.4 in	10.16 mm	DIP	0.1 in	2.54 mm	2 x 16	32	10 mOhm	UL94 V-0
Mill-Max Manufacturing Corp. 115-43-650-41-001000	Tin	Gold	Solder	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	200 µin	5.08 µm	3 A	2.54 mm	0.1 in		Through Hole	Brass Alloy	Open Frame	Beryllium Copper	0.108 in	2.74 mm	0.6 in	15.24 mm	DIP	0.1 in	2.54 mm			10 mOhm	UL94 V-0	25	2	50
