BZE6 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Actuator Type	Voltage Rating - DC	Ingress Protection	Voltage Rating - AC	Release Force	Termination Style	Overtravel	Overtravel	Operating Force [Max]	Operating Force [Min]	Mounting Type	Differential Travel	Differential Travel	Current Rating (Amps)	Pretravel	Pretravel	Circuit	Switch Function	Features	Operating Position	Operating Position	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Position [custom]	Operating Position [custom]
Honeywell Sensing and Productivity Solutions BZE6-2RQ28	Lever Roller	125 VDC	IP40	125 V	170 gf	Screw Terminal	5.6 mm	0.219 in	510 gf	227 gf	Chassis Mount	0.15 mm	0.006 in	15 A 500 mA	0.188 in	4.8 mm	SPDT	On-Mom

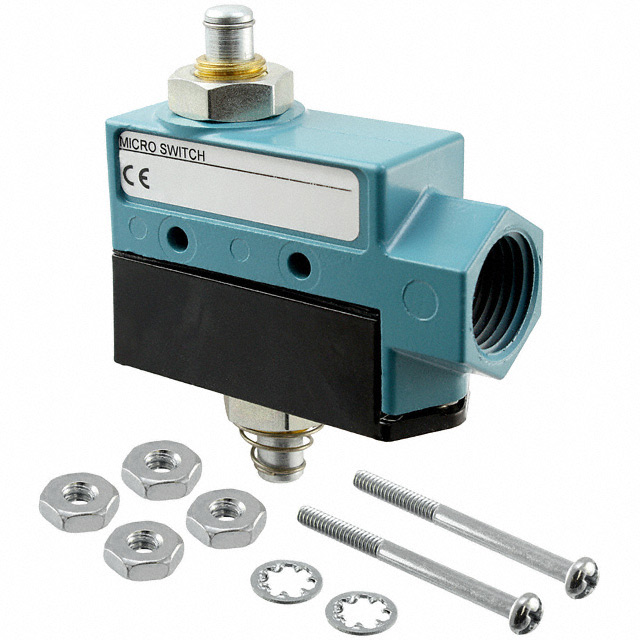

Honeywell Sensing and Productivity Solutions BZE6-RQX2	Round (Pin Plunger)	125 VDC	IP40	125 V		Screw Terminal	4.75 mm	0.187 in	269 gf	170 gf	Chassis Mount			15 A 500 mA	0.012 in	0.3 mm	SPDT	On-On	Reset Plunger on Bottom	1.5 in	38.1 mm
Honeywell Sensing and Productivity Solutions BZE6-2AN	Round (Pin Plunger)	125 VDC	IP66	125 V	113 gf	Screw Terminal	5.6 mm	0.219 in	992 gf	397 gf	Chassis Mount	0.1 mm	0.004 in		0.078 "	2 mm	SPDT (DB/DM)	On-Mom	Actuator Seal Boot	1.72 "	43.7 mm	15A 1A

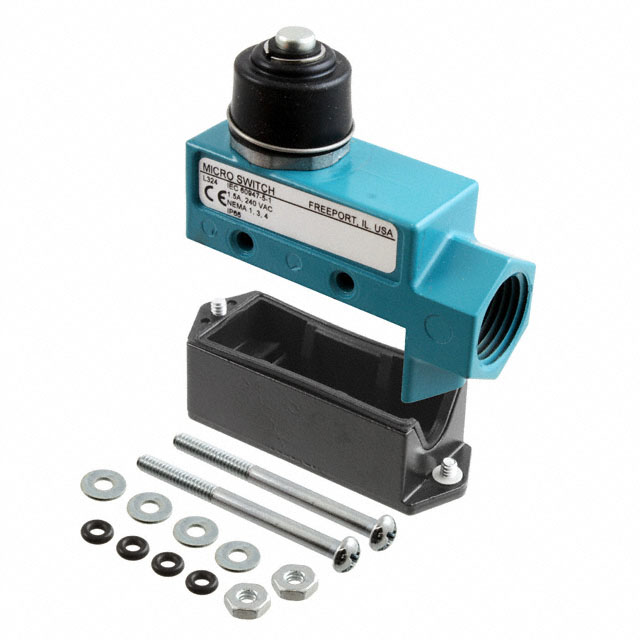

Honeywell Sensing and Productivity Solutions BZE6-2RN-M	Round (Pin Plunger)	125 VDC	IP66	125 V	113 gf	Screw Terminal	5.6 mm	0.219 in			Chassis Mount	0.05 mm	0.002 in	15 A 500 mA	0.078 "	2 mm	SPDT	On-Mom	Actuator Seal Boot	1.72 "	43.7 mm
Honeywell Sensing and Productivity Solutions BZE6-2RQ72	Round (Pin Plunger)		IP40	250 V	113 gf	Screw Terminal	5.6 mm	0.219 in	368 gf	255 gf	Chassis Mount	0.05 mm	0.002 in	1 A	0.015 in	0.4 mm	SPDT	On-Mom	Steel Plunger	1.5 in	38.1 mm		-32 °C	121 °C
Honeywell Sensing and Productivity Solutions BZE6-RQ81X2	Cross Roller Plunger	125 VDC	IP40	125 V		Screw Terminal	3.6 mm	0.141 in	269 gf	170 gf	Chassis Mount			15 A 500 mA	0.012 in	0.3 mm	SPDT	On-On	Reset Plunger on Bottom	2.015 in	51.2 mm

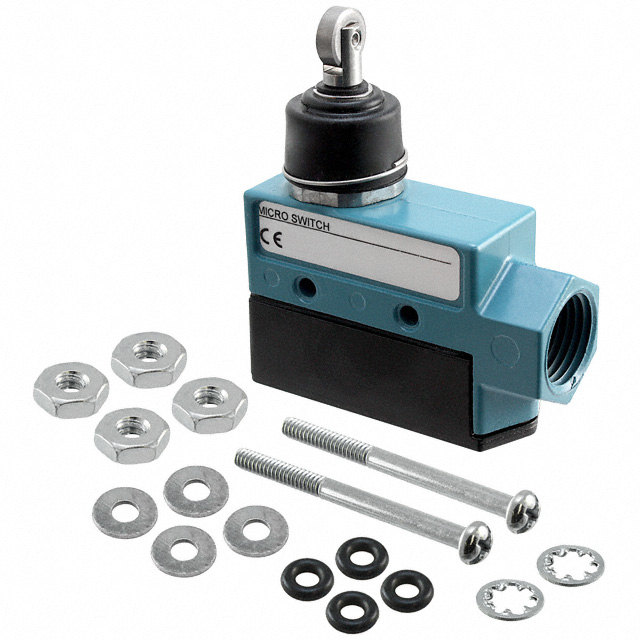

Honeywell Sensing and Productivity Solutions BZE6-2RN81	Roller Plunger	125 VDC	IP54 - Dust Protected Water Resistant	125 V	113 gf	Screw Terminal	5.6 mm	0.219 in			Chassis Mount	0.05 mm	0.002 in	15 A 500 mA	0.078 "	2 mm	SPDT	On-Mom	Actuator Seal Boot						56.7 mm	2.232 in
Honeywell Sensing and Productivity Solutions BZE6-2RQ814	Cross Roller Plunger	125 VDC	IP40	125 V	283 gf	Screw Terminal	3.6 mm	0.141 in	1134 gf	709 gf	Chassis Mount	0.05 mm	0.002 in	5 A 500 mA	0.015 in	0.4 mm	SPDT	On-Mom		1.953 in	49.6 mm

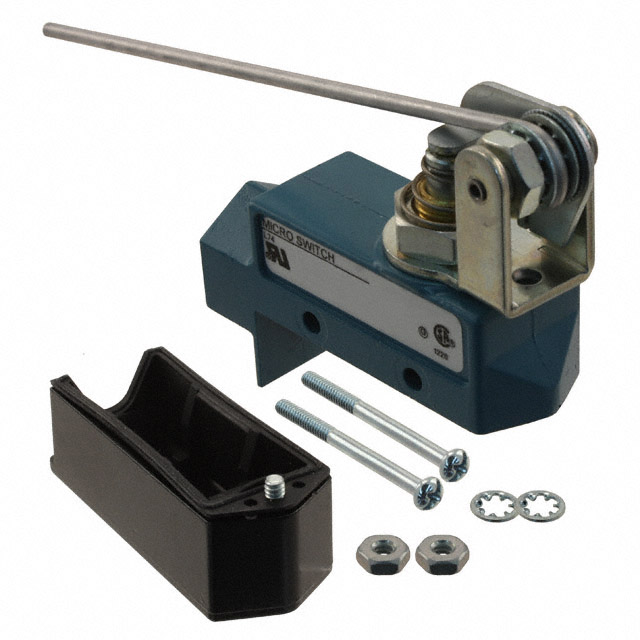

Honeywell Sensing and Productivity Solutions BZE6-2RQ62	Adjustable Rod	125 VDC	IP40	125 V	57 gf	Screw Terminal	21.3 mm	0.838 in	141 gf	56 gf	Chassis Mount	5.8 mm	0.229 in	15 A 500 mA	0.718 in	18.2 mm	SPDT	On-Mom
Honeywell Sensing and Productivity Solutions BZE6-7RQ8	Roller Plunger	125 VDC	IP40	125 V	113 gf	Screw Terminal	3.6 mm	0.141 in	794 gf	624 gf	Chassis Mount	0.13 mm	0.005 in	15 A 500 mA	0.03 in	0.8 mm	SPDT	On-Mom		1.953 in	49.6 mm
