1546311 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

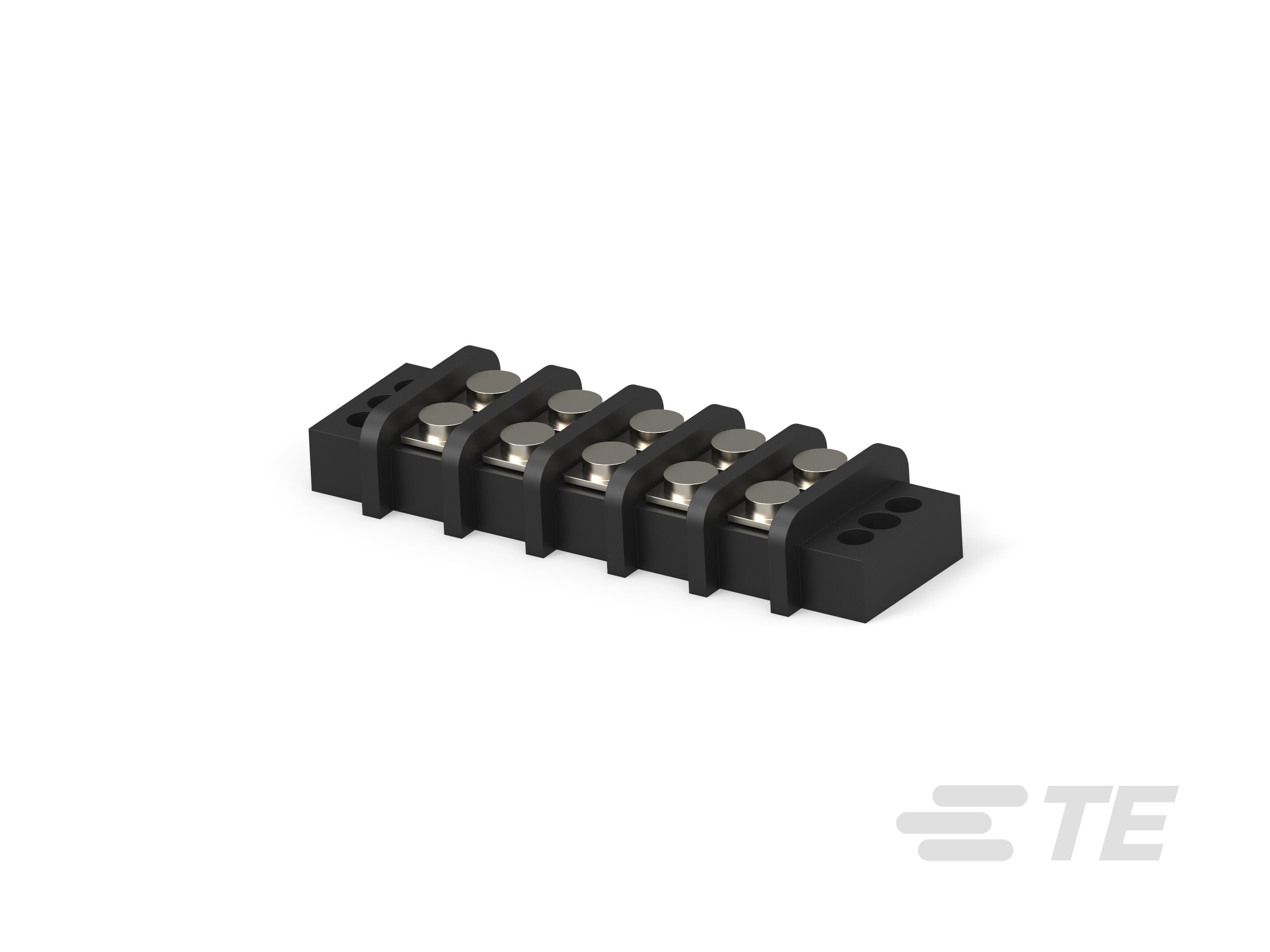

CONN BARRIER STRIP 5CIRC 0.563"
| Part | Terminal Screw Material | Terminal Screw Finish | Material - Insulation | Mounting Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Barrier Type | Color | Bottom Termination | Top Termination | Terminal Block Type | Voltage Rating | Number of Rows [custom] | Current Rating (Amps) | Features | Pitch | Pitch | Number of Wire Entries | Number of Circuits | Wire Gauge [Max] | Wire Gauge [Min] | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Steel | Nickel | Polybutylene Terephthalate (PBT) | Chassis Panel | UL94 V-0 | 120 °C | -40 C | 2 Wall (Dual) | Black | Closed | Screws with Captive Plate | Barrier Block | 300 VDC | 2 | 30 A | Flange | 14.3 mm | 0.563 " | 10 | 5 | 22 AWG | 10 AWG | |
 TE Connectivity AMP Connectors | Steel | Nickel | Polybutylene Terephthalate (PBT) | Chassis Panel | UL94 V-0 | 120 °C | -40 C | 2 Wall (Dual) | Black | Closed | Screws with Captive Plate | Barrier Block | 300 VDC | 2 | 30 A | Flange | 14.3 mm | 0.563 " | 18 | 22 AWG | 10 AWG | 9 | |
TE Connectivity AMP Connectors | Steel | Nickel | Polybutylene Terephthalate (PBT) | Chassis Panel | UL94 V-0 | 120 °C | -40 C | 2 Wall (Dual) | Black | Closed | Screws with Captive Plate | Barrier Block | 300 VDC | 2 | 30 A | Flange | 14.3 mm | 0.563 " | 20 | 10 | 22 AWG | 10 AWG |
