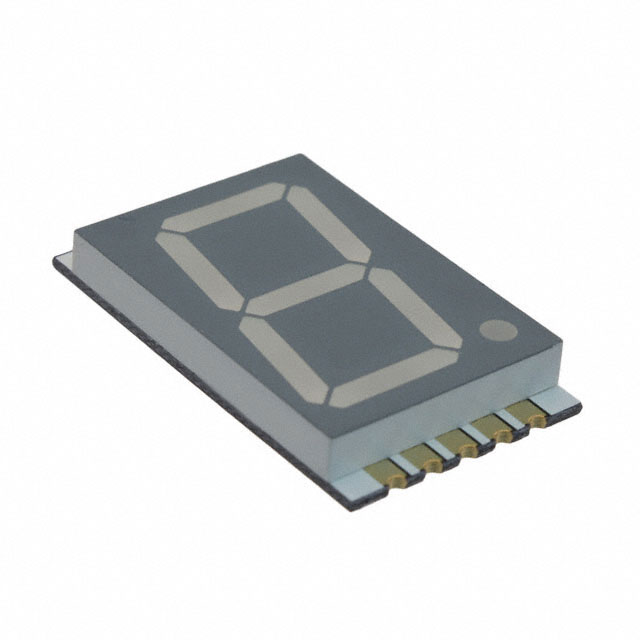

ACSC08 Series

Catalog

DISPLAY 7-SEG 0.8" SGL RED 10SMD

Part	Current - Test	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Display Type	Number of Characters	Wavelength - Peak	Common Pin	Color	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Package / Case	Millicandela Rating	Power Dissipation (Max)
Kingbright ACSC08-51SURKWA	20 mA	0.945 "	3.75 mm	0.148 in	0.661 in	24 mm	16.8 mm	7-Segment	1	650 nm	Common Cathode	Red	0.8 in	20.32 mm	1.95 V	75 mw	10-SMD No Lead	47 mcd
Kingbright ACSC08-51ZGWA	10 mA 20 mA	0.945 "	3.75 mm	0.148 in	0.661 in	24 mm	16.8 mm	7-Segment	1	515 nm	Common Cathode	Green	0.8 in	20.32 mm	3.3 V		10-SMD No Lead	100 mcd	102.5 mW
Kingbright ACSC08-51SGWA	20 mA	0.945 "	3.75 mm	0.148 in	0.661 in	24 mm	16.8 mm	7-Segment	1	565 nm	Common Cathode	Green	0.8 in	20.32 mm	2.2 V	62.5 mW	10-SMD No Lead	7.4 mcd
Kingbright ACSC08-51SYKWA	20 mA	0.945 "	3.75 mm	0.148 in	0.661 in	24 mm	16.8 mm	7-Segment	1	590 nm	Common Cathode	Yellow	0.8 in	20.32 mm	2 V	75 mw	10-SMD No Lead	76 mcd
Kingbright ACSC08-51CGKWA	20 mA	0.945 "	3.75 mm	0.148 in	0.661 in	24 mm	16.8 mm	7-Segment	1		Common Cathode	Green	0.8 in	20.32 mm	2.1 V	75 mw	10-SMD No Lead	22 mcd
Kingbright ACSC08-51QBWA/D	20 mA	0.945 "	3.75 mm	0.148 in	0.661 in	24 mm	16.8 mm	7-Segment	1	468 nm	Common Cathode	Blue	0.8 in	20.32 mm	3.3 V		10-SMD No Lead	12 mcd	120 mW
