M2039SS Series
Manufacturer: NKK Switches
Beta
⌘K

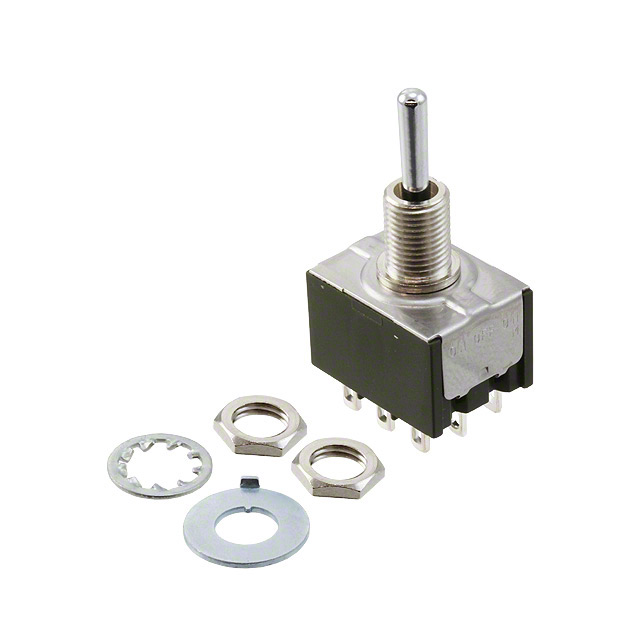

SWITCH TOGGLE 3PDT 6A 125V
| Part | Actuator Material | Electrical Life | Features | Voltage Rating - AC | Bushing Thread | Illumination | Switch Function | Circuit | Panel Cutout Dimensions [diameter] | Termination Style | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 25000 Steps | Epoxy Sealed Terminals | 125 V | 1/4-40 | Non-Illuminated | On-Off-Mom | 3PDT | 6.5 mm | Solder Lug | 3 A 6 A | 30 V | Standard Round | 85 °C | -30 ░C | Panel Mount |
