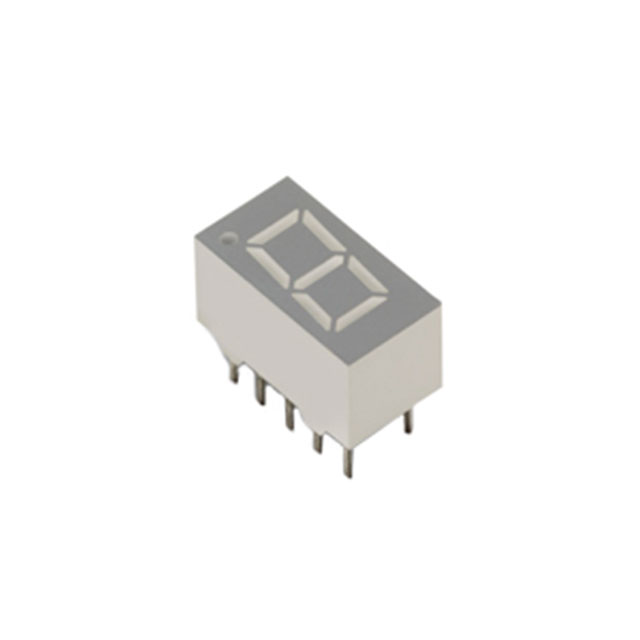

HDSP-H3 Series

Catalog

DISPLAY 7SEG 0.36" SGL RED 10DIP

Part	Current - Test	Wavelength - Peak	Number of Characters	Color	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Package / Case	Package / Case	Millicandela Rating	Display Type	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Power Dissipation (Max) [Max]
Broadcom Limited HDSP-H3A3	20 mA	644 nm	1	Red	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	10-DIP	0.2 in	5.08 mm	13 mcd	7-Segment	2 V	9.14 mm	0.36 in	Common Cathode	52 mW
Broadcom Limited HDSP-H3E3	20 mA	634 nm	1	Red	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	10-DIP	0.2 in	5.08 mm	15 mcd	7-Segment	2 V	9.14 mm	0.36 in	Common Cathode	52 mW
Broadcom Limited HDSP-H3G1	20 mA	570 nm	1	Green	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	10-DIP	0.2 in	5.08 mm	5 mcd	7-Segment	2 V	9.14 mm	0.36 in	Common Anode	52 mW
