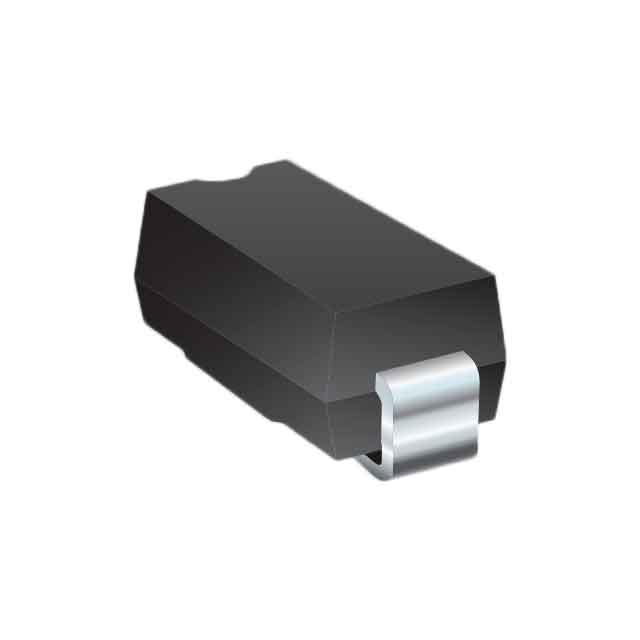

CD214A Series

Catalog

TVS DIODE 12VWM 19.9VC DO214AC

Part	Supplier Device Package	Mounting Type	Applications	Bidirectional Channels [custom]	Type	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Voltage - Forward (Vf) (Max) @ If	Speed	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Unidirectional Channels [custom]	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If [Max]	Speed [Min]
Bourns Inc. CD214A-T12CALF	DO-214AC (SMA)	Surface Mount	General Purpose	1	Zener	20.1 A	12 V	150 °C	-55 °C	19.9 V	DO-214AC SMA	400 W	13.3 V
Bourns Inc. CD214A-B240LLF	DO-214AC (SMA)	Surface Mount									DO-214AC SMA			2 A	40 V	Schottky	430 mV	200 mA 500 ns	2 mA	200 pF	-55 °C	125 °C
Bourns Inc. CD214A-T11ALF	DO-214AC (SMA)	Surface Mount	General Purpose		Zener	22 A	11 V	150 °C	-55 °C	18.2 V	DO-214AC SMA	400 W	12.2 V										1
Bourns Inc. CD214A-FS1D	2-SMD	Surface Mount									2-SMD No Lead			1 A	200 V	Standard	950 mV	200 mA 500 ns	5 ÁA	8 pF	-65 C	175 ░C		35 ns
Bourns Inc. CD214A-RS1M	2-SMD	Surface Mount									2-SMD No Lead			1 A	1000 V	Standard		200 mA 500 ns	5 µA	8.2 pF	-65 C	175 ░C		500 ns	1.3 V
Bourns Inc. CD214A-F1200	DO-214AC (SMA)	Surface Mount									DO-214AC SMA			1 A	200 V	Standard	950 mV	200 mA 500 ns	5 ÁA	10 pF	-55 °C	150 °C		25 ns
Bourns Inc. CD214A-S1M	2-SMD	Surface Mount									2-SMD No Lead			1 A	1000 V	Standard			5 µA		-65 C	175 ░C			1 V	200 mA 500 ns
Bourns Inc. CD214A-RS1K	DO-214AC (SMA)	Surface Mount									DO-214AC SMA			1 A	800 V	Standard		200 mA 500 ns	5 µA	8.2 pF				300 ns	1.3 V
Bourns Inc. CD214A-B130LLF	DO-214AC (SMA)	Surface Mount									DO-214AC SMA			1 A	30 V	Schottky		200 mA 500 ns	1 mA	100 pF	-55 °C	125 °C			410 mV
Bourns Inc. CD214A-T18ALF	DO-214AC (SMA)	Surface Mount	General Purpose		Zener	13.7 A	18 V	150 °C	-55 °C	29.2 V	DO-214AC SMA	400 W	20 V										1
