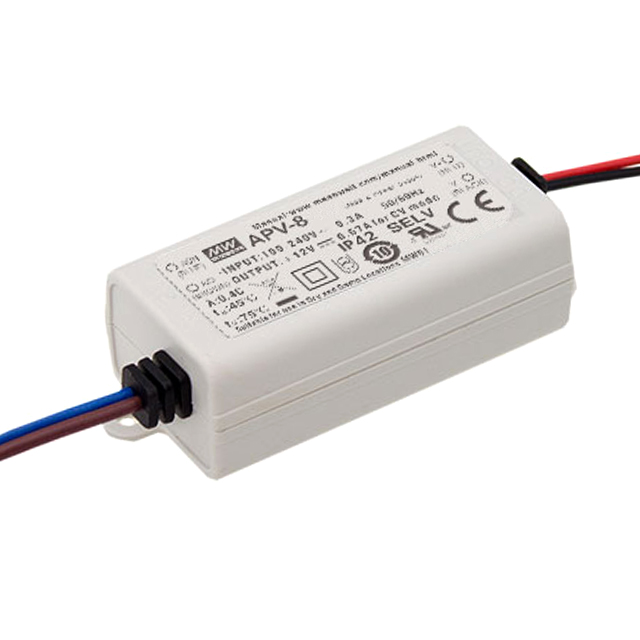

APV-8 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DRIVER CV AC/DC 5V 1.4A
| Part | Mounting Type | Power (Watts) | Voltage - Isolation | Ratings | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | Voltage - Input (Max) [Max] | Number of Outputs | Termination Style | Current - Output (Max) [Max] | Features | Efficiency | Approval Agency | Topology | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | 7 W | 3750 VDC | IP42 | 0.93 " | 23.5 mm | 1.18 " | 2.36 " | 30 mm | 60 mm | Constant Voltage | 264 VAC | 1 | Wire Leads | 1.4 A | OCP OVP SCP | 74 % | CCC CE cURus | AC DC Converter | 90 VAC | -30 ░C | 70 °C | 5 V |
 MEAN WELL USA Inc. | Chassis Mount | 8 W | 3750 VDC | IP42 | 0.93 " | 23.5 mm | 1.18 " | 2.36 " | 30 mm | 60 mm | Constant Voltage | 264 VAC | 1 | Wire Leads | 670 mA | OCP OVP SCP | 77.5 % | CB CE ENEC | AC DC Converter | 180 VAC | -30 ░C | 70 °C | 12 V |
MEAN WELL USA Inc. | Chassis Mount | 8 W | 3750 VDC | IP42 | 0.93 " | 23.5 mm | 1.18 " | 2.36 " | 30 mm | 60 mm | Constant Voltage | 264 VAC | 1 | Wire Leads | 340 mA | OCP OVP SCP | 78.5 % | CB CE ENEC | AC DC Converter | 180 VAC | -30 ░C | 70 °C | 24 V |
MEAN WELL USA Inc. | Chassis Mount | 7 W | 3750 VDC | IP42 | 0.93 " | 23.5 mm | 1.18 " | 2.36 " | 30 mm | 60 mm | Constant Voltage | 264 VAC | 1 | Wire Leads | 1.4 A | OCP OVP SCP | 74 % | CB CE ENEC | AC DC Converter | 180 VAC | -30 ░C | 70 °C | 5 V |
