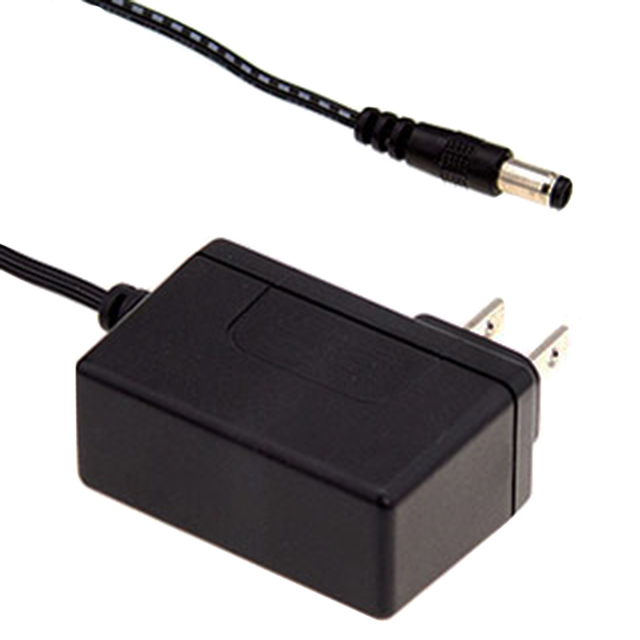

SGA12U15 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC WALL MOUNT ADAPTER 15V 12W
| Part | Polarization | Power (Watts) | Region Utilized | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Output Connector [x] | Output Connector [diameter] | Output Connector | Input Connector | Approval Agency | Form | Efficiency | Cord Length | Cord Length | Voltage - Input [Max] | Voltage - Input [Min] | Input Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | No Load Power Consumption | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Positive Center | 12 W | North America | 62.2 mm | 2.45 in | 45.5 mm | 1.08 in | 1.79 in | 27.4 mm | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | NEMA 1-15P | CB cURus | Wall Mount | Level VI | 70.9 " | 1.8 m | 264 VAC | 90 VAC | Fixed Blade | ITE (Commercial) | -20 ░C | 60 °C | 0.8 A | 75 mW | 15 V |
