2308107 Series

Catalog

DDR4 DIMM 288 PIN TH TYPE

Part	Mounting Feature	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Connector Style	Standards	Number of Positions	Features	Color	Mounting Type	Memory Type	Height [z]	Height [z]

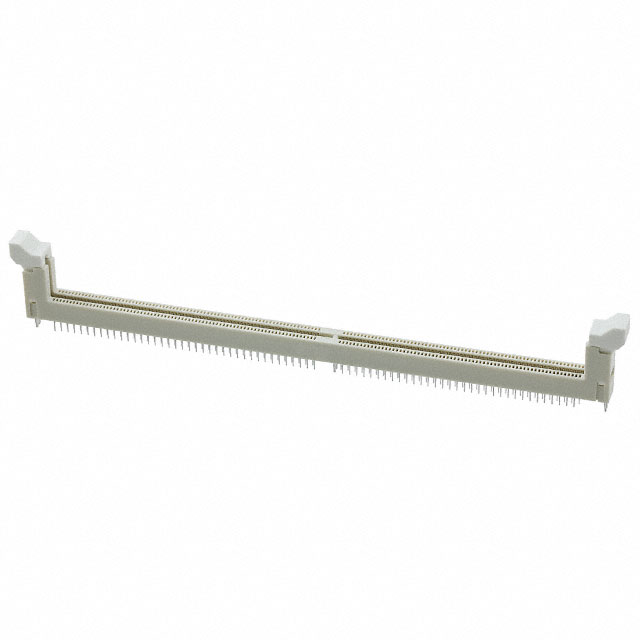

TE Connectivity Raychem Cable Protection 2308107-5	Normal Standard - Top	Gold	15 µin	0.38 µm	0.055 in	1.4 mm	DIMM	MO-309	288	Board Lock Latches	Natural	Through Hole	DDR4 SDRAM

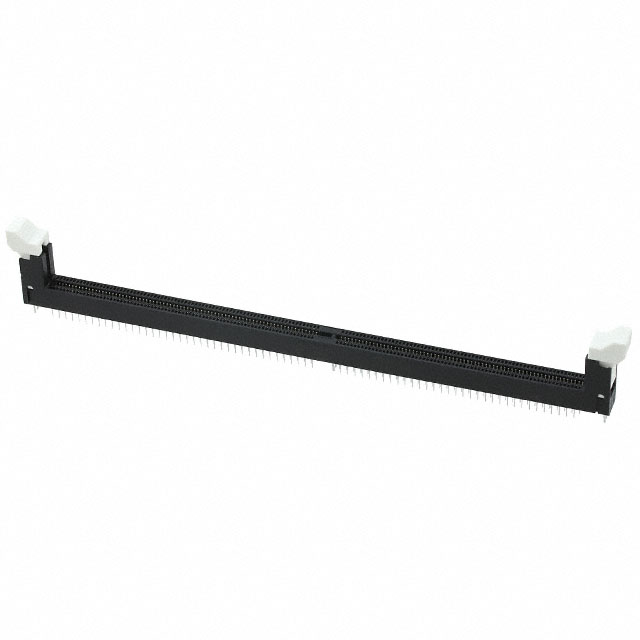

TE Connectivity Raychem Cable Protection 2-2308107-1	Normal Standard - Top	Gold	15 µin	0.38 µm	0.055 in	1.4 mm	DIMM	MO-309	288	Board Lock Latches	Black	Through Hole	DDR4 SDRAM	14.5 mm	0.57 in

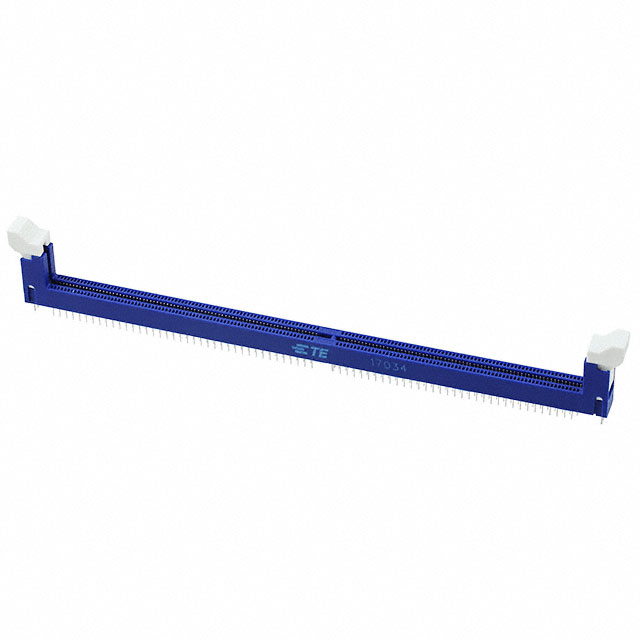

TE Connectivity Raychem Cable Protection 2308107-9	Normal Standard - Top	Gold	15 µin	0.38 µm	0.055 in	1.4 mm	DIMM	MO-309	288	Board Lock Latches	Blue	Through Hole	DDR4 SDRAM
TE Connectivity Raychem Cable Protection 2308107-7	Normal Standard - Top	Gold	15 µin	0.38 µm	0.055 in	1.4 mm	DIMM	MO-309	288	Board Lock Latches	Black	Through Hole	DDR4 SDRAM
