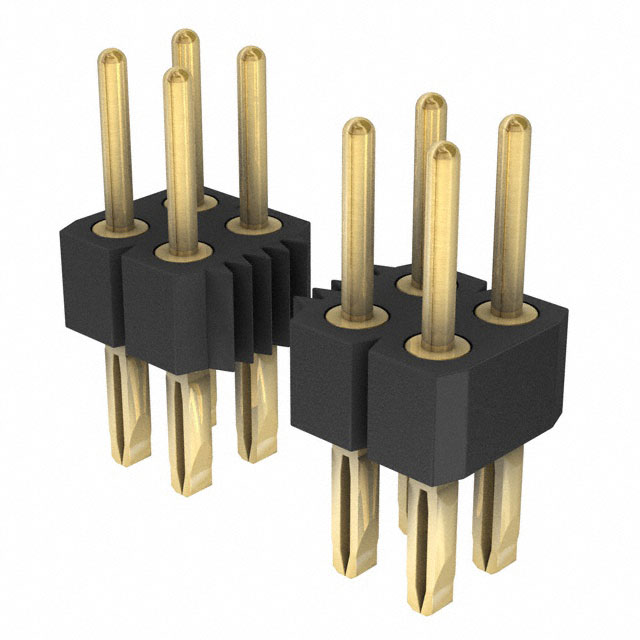

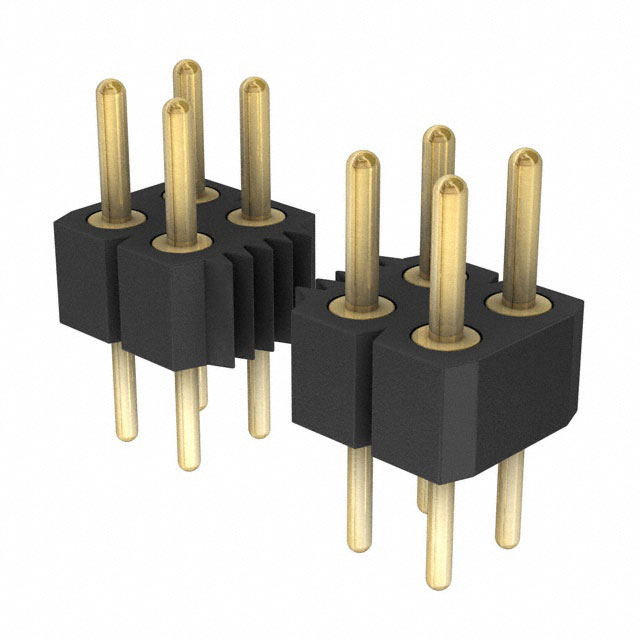

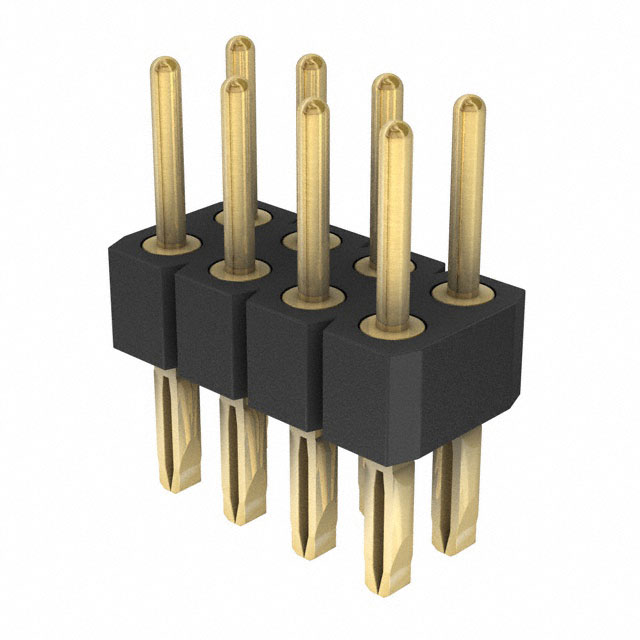

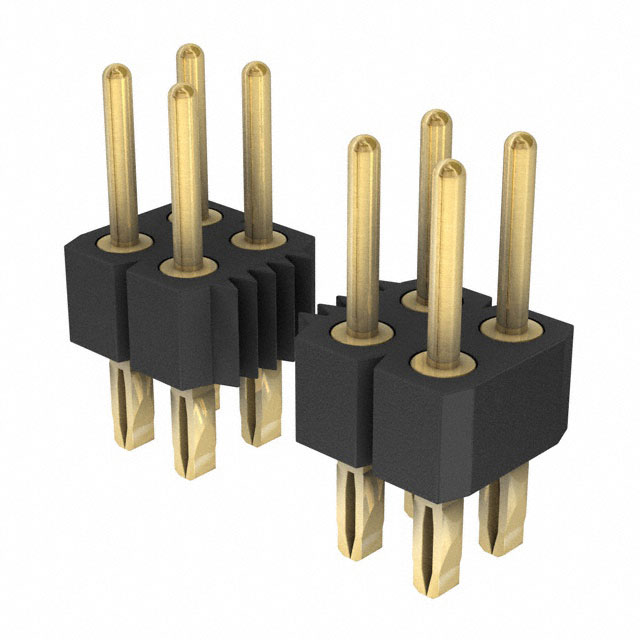

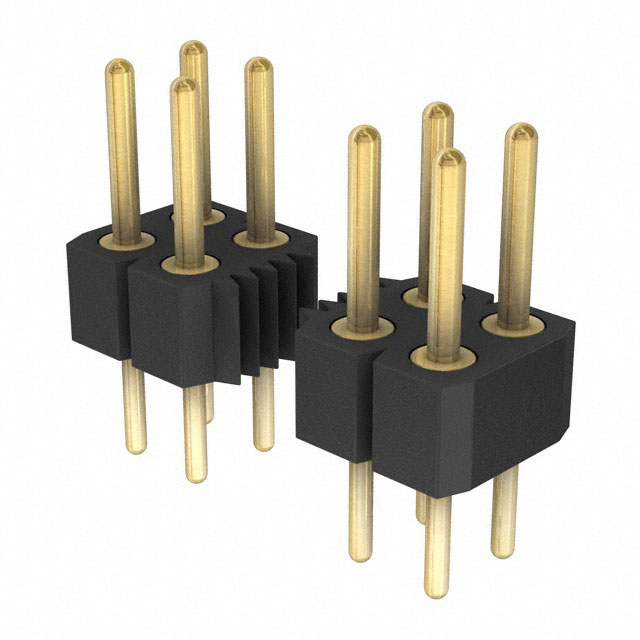

802-10 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER VERT 70POS 2.54MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Insulation Color	Insulation Material	Contact Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Positions	Shrouding	Number of Positions Loaded	Mounting Type	Connector Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Termination	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Features	Contact Length - Post [custom]
Preci-Dip 802-10-070-66-001101	10 Áin	0.25 çm	3 A	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Bronze	0.25 µm	10 µin	Push-Pull	Gold	-55 C	125 °C	150 VDC	70	Unshrouded	All	Through Hole	Header	UL94 V-0	0.1 "	2.54 mm	2	Gold	0.1 in	2.54 mm	3.81 mm	0.15 in	Circular	Press-Fit Solder	4.85 mm	0.191 in	0.467 in	11.85 mm
Preci-Dip 802-10-008-66-001101	10 Áin	0.25 çm	3 A	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Bronze	0.25 µm	10 µin	Push-Pull	Gold	-55 C	125 °C	150 VDC	8	Unshrouded	All	Through Hole	Header	UL94 V-0	0.1 "	2.54 mm	2	Gold	0.1 in	2.54 mm	3.81 mm	0.15 in	Circular	Press-Fit Solder	4.85 mm	0.191 in	0.467 in	11.85 mm
Preci-Dip 802-10-046-10-002101	10 Áin	0.25 çm	3 A	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass	0.25 µm	10 µin	Push-Pull	Gold	-55 C	125 °C	150 VDC	46	Unshrouded	All	Through Hole	Header	UL94 V-0	0.1 "	2.54 mm	2	Gold	0.1 in	2.54 mm			Circular	Solder	3.6 mm	0.141 in			0.118 in	3 mm
Preci-Dip 802-10-042-10-001101	10 Áin	0.25 çm	3 A	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass	0.25 µm	10 µin	Push-Pull	Gold	-55 C	125 °C	150 VDC	42	Unshrouded	All	Through Hole	Header	UL94 V-0	0.1 "	2.54 mm	2	Gold	0.1 in	2.54 mm			Circular	Solder	4.85 mm	0.191 in	0.438 in	11.12 mm	0.121 in	3.08 mm
Preci-Dip 802-10-070-10-002101	10 Áin	0.25 çm	3 A	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass	0.25 µm	10 µin	Push-Pull	Gold	-55 C	125 °C	150 VDC	70	Unshrouded	All	Through Hole	Header	UL94 V-0	0.1 "	2.54 mm	2	Gold	0.1 in	2.54 mm			Circular	Solder	3.6 mm	0.141 in			0.118 in	3 mm
Preci-Dip 802-10-072-10-001101	10 Áin	0.25 çm	3 A	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass	0.25 µm	10 µin	Push-Pull	Gold	-55 C	125 °C	150 VDC	72	Unshrouded	All	Through Hole	Header	UL94 V-0	0.1 "	2.54 mm	2	Gold	0.1 in	2.54 mm			Circular	Solder	4.85 mm	0.191 in	0.438 in	11.12 mm	0.121 in	3.08 mm

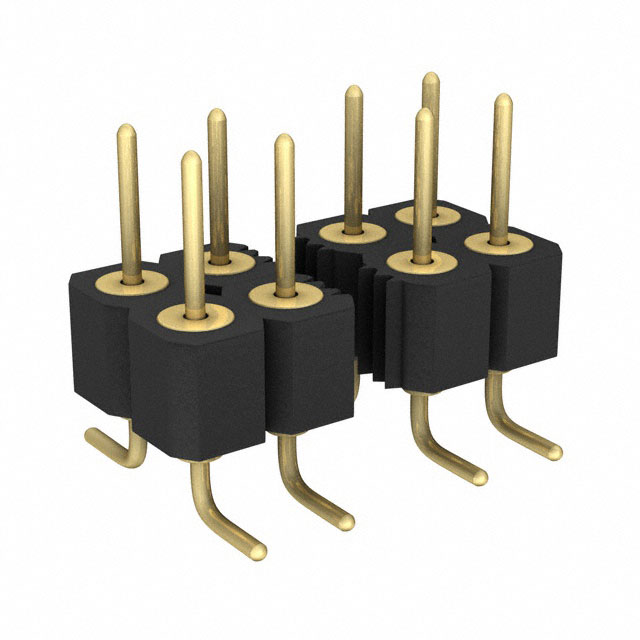

Preci-Dip 802-10-018-30-001191	10 Áin	0.25 çm	3 A	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass	0.25 µm	10 µin	Push-Pull	Gold	-55 C	125 °C	150 VDC	18	Unshrouded	All	Surface Mount	Header	UL94 V-0	0.1 "	2.54 mm	2	Gold	0.1 in	2.54 mm			Circular	Solder	4.85 mm	0.191 in					Pick and Place

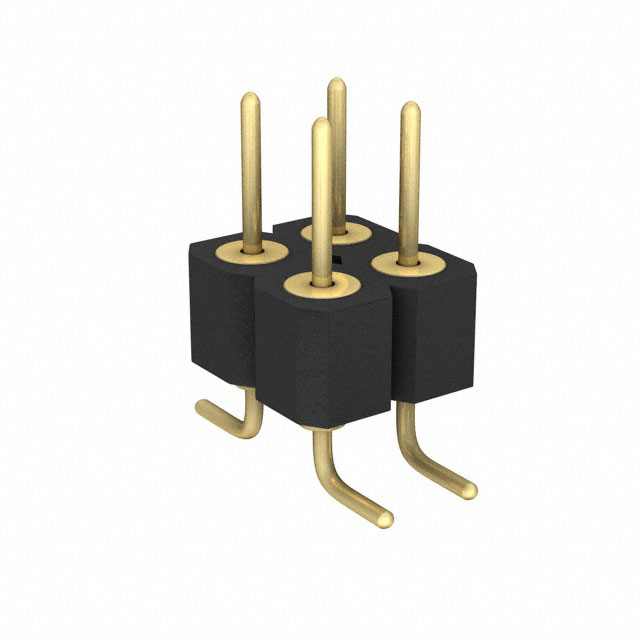

Preci-Dip 802-10-004-30-001191	10 Áin	0.25 çm	3 A	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass	0.25 µm	10 µin	Push-Pull	Gold	-55 C	125 °C	150 VDC	4	Unshrouded	All	Surface Mount	Header	UL94 V-0	0.1 "	2.54 mm	2	Gold	0.1 in	2.54 mm			Circular	Solder	4.85 mm	0.191 in					Pick and Place
Preci-Dip 802-10-056-65-001101	10 Áin	0.25 çm	3 A	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Bronze	0.25 µm	10 µin	Push-Pull	Gold	-55 C	125 °C	150 VDC	56	Unshrouded	All	Through Hole	Header	UL94 V-0	0.1 "	2.54 mm	2	Gold	0.1 in	2.54 mm			Circular	Press-Fit Solder	4.85 mm	0.191 in	0.427 in	10.85 mm		2.79 mm		0.11 in
Preci-Dip 802-10-040-66-001101	10 Áin	0.25 çm	3 A	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Bronze	0.25 µm	10 µin	Push-Pull	Gold	-55 C	125 °C	150 VDC	40	Unshrouded	All	Through Hole	Header	UL94 V-0	0.1 "	2.54 mm	2	Gold	0.1 in	2.54 mm	3.81 mm	0.15 in	Circular	Press-Fit Solder	4.85 mm	0.191 in	0.467 in	11.85 mm
