XRCGE Series

Catalog

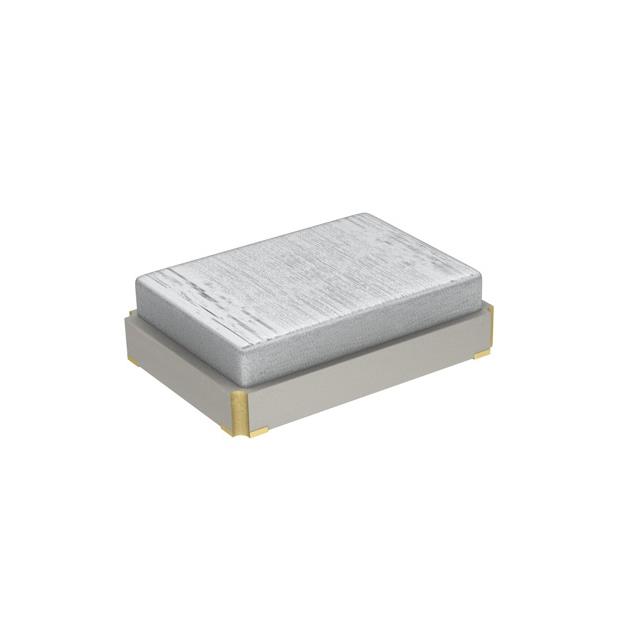

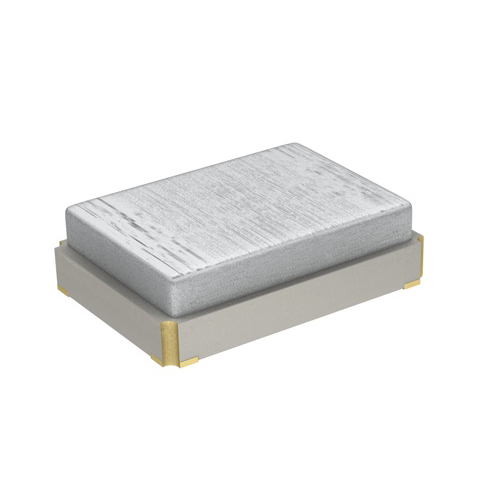

CRYSTALS 2.0X1.6MM 30.0MHZ CRYSTAL +/-30PPM INITIAL TOLERANCE

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Load Capacitance	Frequency Stability	ESR (Equivalent Series Resistance)	Frequency	Mounting Type	Frequency Tolerance	Operating Mode	Ratings	Package / Case
Murata Electronics XRCGE30M000F3A1AR0	0.7 mm	0.028 "	MHz Crystal	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	6 pF	45 ppm	70 Ohm	30 MHz	Surface Mount	30 ppm	Fundamental	AEC-Q200	4-SMD No Lead
Murata Electronics XRCGE26M000FBA1AR0	0.7 mm	0.028 "	MHz Crystal	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	6 pF	35 ppm	80 Ohm	26 MHz	Surface Mount	15 ppm	Fundamental	AEC-Q200	4-SMD No Lead
Murata Electronics XRCGE27M600FBA1AR0	0.7 mm	0.028 "	MHz Crystal	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	6 pF	35 ppm	80 Ohm	27.6 MHz	Surface Mount	15 ppm	Fundamental	AEC-Q200	4-SMD No Lead
Murata Electronics XRCGE24M545FBA1BR0	0.7 mm	0.028 "	MHz Crystal	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	8 pF	35 ppm	100 Ohms		Surface Mount	15 ppm	Fundamental	AEC-Q200	4-SMD No Lead
Murata Electronics XRCGE27M000FBA1AR0	0.7 mm	0.028 "	MHz Crystal	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	6 pF	35 ppm	80 Ohm	27 MHz	Surface Mount	15 ppm	Fundamental	AEC-Q200	4-SMD No Lead
