A3AA-91L Series

Catalog

SWITCH PUSH SPST-NO 6A 125V

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Actuator Type	Voltage Rating - DC	Current Rating (Amps)	Actuator Marking	Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Ingress Protection	Color - Actuator/Cap	Switch Function	Illumination Type, Color	Illumination Voltage (Nominal)

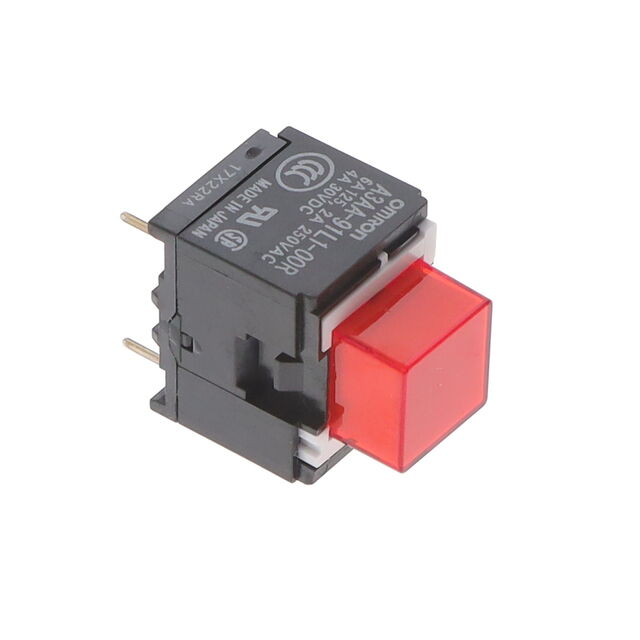

Omron Automation and Safety A3AA-91L1-00R	50000 Cycles	50000 Cycles	125 V	Button Square	30 V	4 A 6 A	No Marking	Standard	SPST-NO	55 °C	-10 °C	Through Hole	PC Pin	IP00	Red	Off-On
Omron Automation and Safety A3AA-91L1-00Y	50000 Cycles	50000 Cycles	125 V	Button Square	30 V	4 A 6 A	No Marking	Standard	SPST-NO	55 °C	-10 °C	Through Hole	PC Pin	IP00	Yellow	Off-On
Omron Automation and Safety A3AA-91L1-00EY	50000 Cycles	50000 Cycles	125 V	Button Square	30 V	4 A 6 A	No Marking	Illuminated Standard	SPST-NO	55 °C	-10 °C	Through Hole	PC Pin	IP00	Yellow	Off-On	LED Yellow	2.1 VDC
Omron Automation and Safety A3AA-91L1-00B	50000 Cycles	50000 Cycles	125 V	Button Square	30 V	4 A 6 A	No Marking	Standard	SPST-NO	55 °C	-10 °C	Through Hole	PC Pin	IP00	Black	Off-On
Omron Automation and Safety A3AA-91L1-00ER	50000 Cycles	50000 Cycles	125 V	Button Square	30 V	4 A 6 A	No Marking	Illuminated Standard	SPST-NO	55 °C	-10 °C	Through Hole	PC Pin	IP00	Red	Off-On	LED Red	2 VDC
