TPS54531 Series
Manufacturer: Texas Instruments
Beta
⌘K

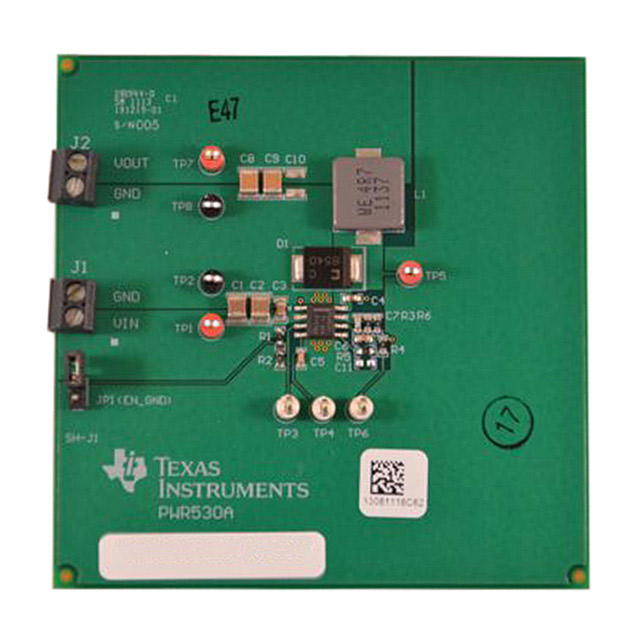

EVAL MODULE FOR TPS54531
| Part | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Regulator Topology | Utilized IC / Part | Main Purpose | Frequency - Switching | Outputs and Type | Outputs and Type | Board Type | Voltage - Output | Current - Output | Output Configuration | Supplier Device Package | Output Type | Function | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [y] | Package / Case [x] | Package / Case | Voltage - Output (Min/Fixed) | Voltage - Input (Max) [Max] | Synchronous Rectifier | Topology | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | 28 V | 8 V | Buck | TPS54531 | DC/DC Step Down | 570 kHz | Non-Isolated | 1 | Fully Populated | 5 V | 5 A | |||||||||||||||||
 Texas Instruments | 570 kHz | 5 A | Positive | 8-SO PowerPad | Adjustable | Step-Down | 3.5 V | 1 | 26.04 V | 85 °C | -40 °C | 3.9 mm | 0.154 in | 8-PowerSOIC | 0.8 V | 28 V | Buck | Surface Mount |
