Pcm0 Series Series

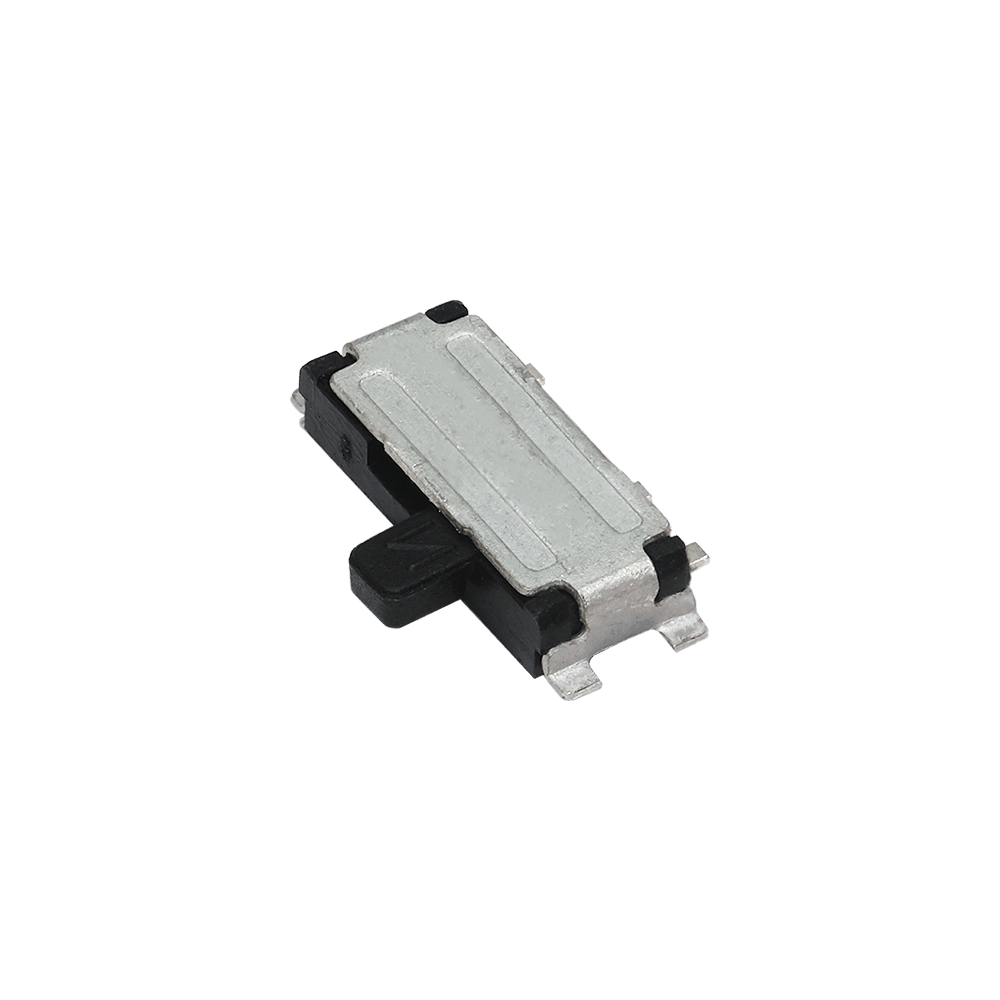

Ultraminiature Surface Mount Slide Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Ultraminiature Surface Mount Slide Switch

Part	Voltage Rating - DC	Contact Material	Contact Finish	Contact Timing	Mechanical Life	Actuator Type	Current Rating (Amps)	Circuit	Switch Travel	Actuator Length [x]	Mounting Type	Termination Style	Switch Function	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life
Littelfuse/Commercial Vehicle Products PCM12SMTR	6 V	Copper Alloy	Silver	Not Specified	10000 Steps	Standard	300 mA	SPDT	1.5 mm	1.5 mm	Surface Mount Right Angle	Gull Wing	On-On	Nylon 4/6 Polyamide (PA46)	85 °C	-20 C
Littelfuse/Commercial Vehicle Products PCM13SMTR	6 V	Copper Alloy	Silver	Not Specified	10000 Steps	Standard	300 mA	SP3T	1.5 mm	1.5 mm	Surface Mount Right Angle	Gull Wing	On-On-On	Nylon 4/6 Polyamide (PA46)	85 °C	-20 C
Littelfuse/Commercial Vehicle Products PCM12SMTBR	6 V	Copper Alloy	Gold	Not Specified		Standard	300 mA	SPDT	1.5 mm	1.5 mm	Surface Mount Right Angle	Gull Wing	On-On	Nylon 4/6 Polyamide (PA46)	85 °C	-20 C	10000 Cycles

Catalog

Ultraminiature Surface Mount Slide Switch

Key Features

• Ultraminiature surface mount

• Low profile

• SPDT & SP3T models

Description

Makers of computer peripherals, network products, telecommunication products and test & measurement equipment choose the PCM series ultraminiature surface mount slide switches from C&K when they need a long-lasting, low-profile switch. PCM switches are available in SPDT or SP3T models.
