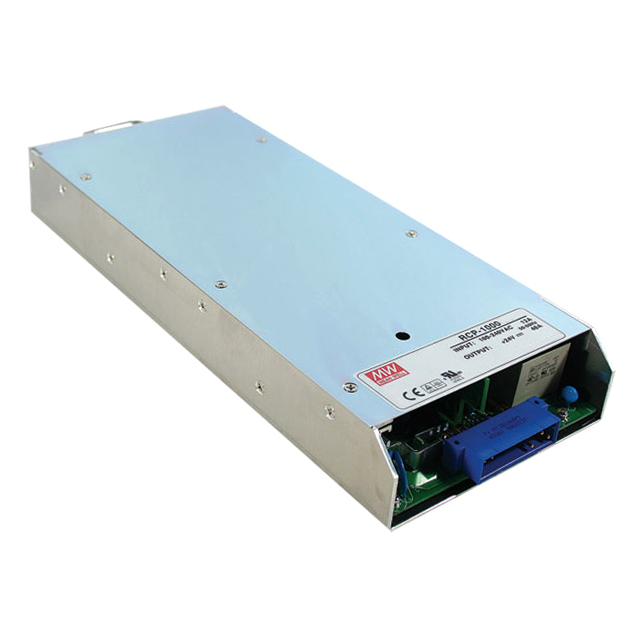

RCP-1000 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 48V 1008W
| Part | Minimum Load Required | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Isolation | Mounting Type | Approval Agency | Type | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Power (Watts) | Voltage - Output 1 | Features | Applications | Current - Output 1 | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 60 °C | -20 °C | 89 % | 3000 V | Rack Mount | CB CE cURus TUV | Enclosed | 264 VAC 370 VDC | 90 VAC 127 VDC | 1 | 1.008 kW | 48 V | Adjustable Output PFC Remote On/Off Universal Input | ITE (Commercial) | 21 A | 1.61 " | 295 mm | 5 in | 11.61 in | 5 in | 41 mm | |
MEAN WELL USA Inc. | 60 °C | -20 °C | 89 % | 3000 V | Rack Mount | CB CE cURus TUV | Enclosed | 264 VAC 370 VDC | 90 VAC 127 VDC | 1 | 1.008 kW | 48 V | Adjustable Output I2C Interface PFC Remote On/Off Universal Input | ITE (Commercial) | 21 A | 1.61 " | 295 mm | 5 in | 11.61 in | 5 in | 41 mm | |
MEAN WELL USA Inc. | 60 °C | -20 °C | 81 % | 3000 V | Rack Mount | CB CE cURus TUV | Enclosed | 264 VAC 370 VDC | 90 VAC 127 VDC | 1 | 720 W | 12 V | Adjustable Output I2C Interface PFC Remote On/Off Universal Input | ITE (Commercial) | 60 A | 1.61 " | 295 mm | 5 in | 11.61 in | 5 in | 41 mm | |
MEAN WELL USA Inc. | 60 °C | -20 °C | 81 % | 3000 V | Rack Mount | CB CE cURus TUV | Enclosed | 264 VAC 370 VDC | 90 VAC 127 VDC | 1 | 720 W | 12 V | Adjustable Output PFC Remote On/Off Universal Input | ITE (Commercial) | 60 A | 1.61 " | 295 mm | 5 in | 11.61 in | 5 in | 41 mm | |
MEAN WELL USA Inc. | 60 °C | -20 °C | 87 % | 3000 V | Rack Mount | CB CE cURus TUV | Enclosed | 264 VAC 370 VDC | 90 VAC 127 VDC | 1 | 960 W | 24 V | Adjustable Output I2C Interface PFC Remote On/Off Universal Input | ITE (Commercial) | 40 A | 1.61 " | 295 mm | 5 in | 11.61 in | 5 in | 41 mm |
