170043 Series

Catalog

110 SERIES FASTON REC

Part	Length - Overall [x]	Length - Overall [x]	Terminal Type	Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Tab Length	Tab Length	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Gender	Termination	Contact Finish	Contact Material
TE Connectivity Raychem Cable Protection 170043-6	15.4 mm	0.606 in	Standard	Non-Insulated	20 AWG	24 AWG	Free Hanging (In-Line)	0.252 in	6.4 mm	0.02 "	0.51 mm	2.79 mm	0.11 "	2 mm	0.118 in	0.079 in	3 mm	Female	Crimp

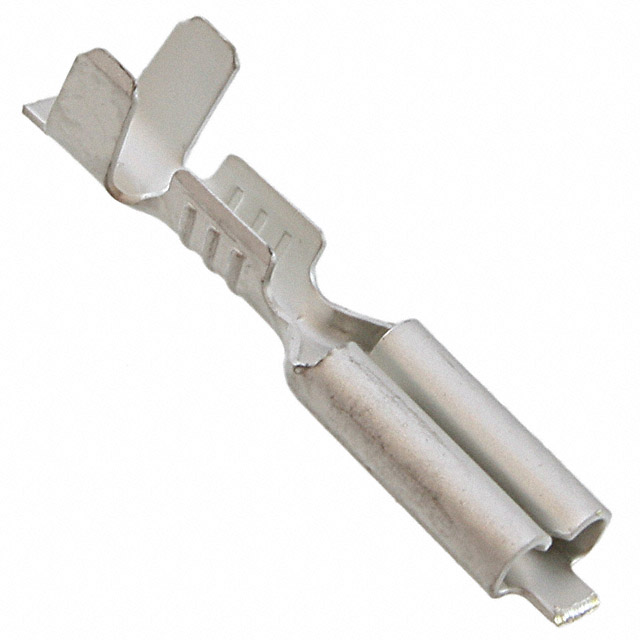

TE Connectivity Raychem Cable Protection 170043-2	15.4 mm	0.606 in	Standard	Non-Insulated	20 AWG	24 AWG	Free Hanging (In-Line)	0.252 in	6.4 mm	0.02 "	0.51 mm	2.79 mm	0.11 "	2 mm	0.118 in	0.079 in	3 mm	Female	Crimp	Tin	Brass

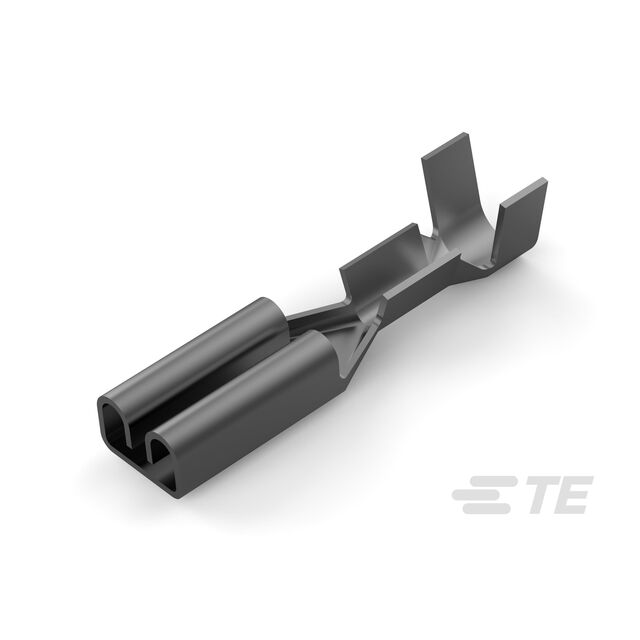

TE Connectivity Raychem Cable Protection 170043-4	15.4 mm	0.606 in	Standard	Non-Insulated	20 AWG	24 AWG	Free Hanging (In-Line)	0.252 in	6.4 mm	0.02 "	0.51 mm	2.79 mm	0.11 "	2 mm	0.118 in	0.079 in	3 mm	Female	Crimp
TE Connectivity Raychem Cable Protection 170043-7	15.4 mm	0.606 in	Standard	Non-Insulated	20 AWG	24 AWG	Free Hanging (In-Line)	0.252 in	6.4 mm	0.02 "	0.51 mm	2.79 mm	0.11 "	2 mm	0.118 in	0.079 in	3 mm	Female	Crimp
