1546147 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

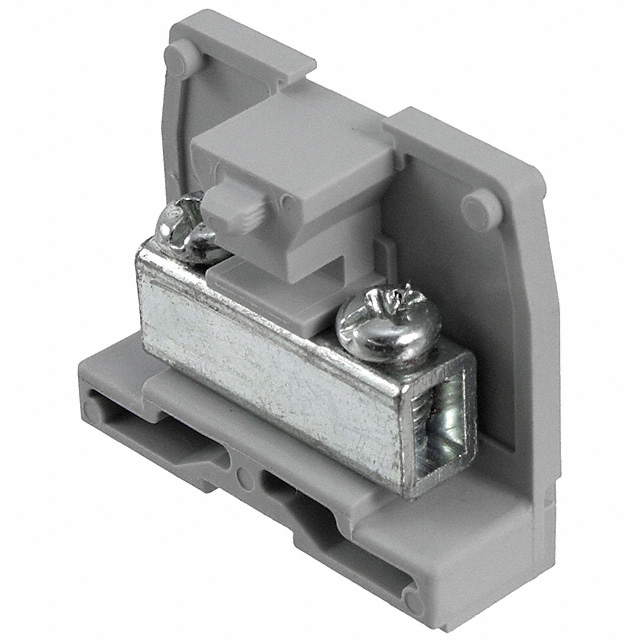

TERM BLK NEMA 2POS 10.85MM GRAY
| Part | Operating Temperature | Material Flammability Rating | Material - Insulation | Length | Length | Height (Max) [z] | Terminal - Width [y] | Number of Levels | Type | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Current - UL | Housing Color | Mounting Type | Number of Positions | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 150 °C | UL94 V-0 | Polyester | 31.27 mm | 1.231 in | 1.225 in 31.12 mm | 10.9 mm | 1 | NEMA Open Construction | 22 AWG | 8 AWG | 50 A | Gray | Direct Mount | 2 | Tubular Screw |
 TE Connectivity AMP Connectors | 150 °C | UL94 V-0 | Polyester | 31.27 mm | 1.231 in | 1.225 in 31.12 mm | 10.9 mm | 1 | NEMA Open Construction | 22 AWG | 8 AWG | 50 A | Gray | Direct Mount | 2 | Tubular Screw |
