1571988 Series

Catalog

SWITCH ROCKER SPDT 0.4VA 20V

Part	Electrical Life	Ingress Protection	Color - Actuator/Cap	Features	Actuator Type	Voltage Rating - AC	Current Rating (Amps)	Switch Function	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating - DC	Circuit	Actuator Marking
TE Connectivity AMP Connectors 1-1571988-8	6000 Cycles	IP67 - Dust Tight Waterproof	Black	Epoxy Sealed Terminals	Concave	20 V	0.4 VA	On-On	Through Hole	85 °C	-30 ░C	PC Pin	20 V	SPDT	No Marking
TE Connectivity AMP Connectors 1571988-1	6000 Cycles	IP67 - Dust Tight Waterproof	Black	Epoxy Sealed Terminals	Concave	20 V	0.4 VA	On-On	Right Angle Through Hole	85 °C	-30 ░C	PC Pin	20 V	SPDT	No Marking
TE Connectivity AMP Connectors 1571988-5	6000 Cycles	IP67 - Dust Tight Waterproof	Black	Epoxy Sealed Terminals	Concave	20 V	0.4 VA	On-On	Through Hole	85 °C	-30 ░C	PC Pin	20 V	SPDT	No Marking
TE Connectivity AMP Connectors 1-1571988-0	6000 Cycles	IP67 - Dust Tight Waterproof	Black	Epoxy Sealed Terminals	Concave	20 V	0.4 VA	Mom-Off-Mom	Through Hole	85 °C	-30 ░C	PC Pin	20 V	SPDT	No Marking
TE Connectivity AMP Connectors 1571988-3	6000 Cycles	IP67 - Dust Tight Waterproof	Yellow	Epoxy Sealed Terminals	Concave	120 V	5 A	On-On	Right Angle Through Hole	85 °C	-30 ░C	PC Pin	28 V	SPDT	No Marking

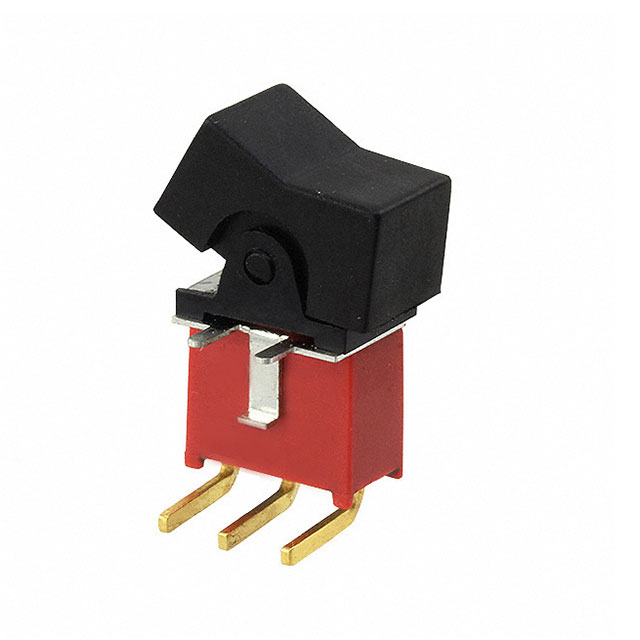

TE Connectivity AMP Connectors 1-1571988-3	6000 Cycles	IP67 - Dust Tight Waterproof	Black	Epoxy Sealed Terminals	Concave	120 V	5 A	On-Off-Mom	Right Angle Through Hole	85 °C	-30 ░C	PC Pin	28 V	SPDT	No Marking
