TMB-V86 Series

Catalog

BUZZER PIEZO 35.81MM PNL MNT

Part	Current - Supply [Max]	Current - Supply [Min]	Port Location	Operating Mode	Frequency	Termination	Termination	Termination	Voltage Range [Min]	Voltage Range [Max]	Sound Pressure Level (SPL)	Approval Agency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Technology	Ingress Protection	Driver Circuitry	Mounting Type	Input Type	Current - Supply [Max] [x]	Current - Supply [Min] [x]	Size / Dimension [diameter]
Floyd Bell Inc TMB-V86-531-S(S)	15 mA	2 mA	Top	Pulse Slow	2.9 kHz	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	5 VDC	24 V	95 dB	UL UR	1.25 "	31.75 mm	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	Indicator Internally Driven	Panel Mount
Floyd Bell Inc TMB-V86-948-Q(F)			Top	Fast Pulse	2.9 kHz	0.25 "	Quick Connect Tab	6.35 mm	9 V	48 V	95 dB	UL UR	1.25 "	31.75 mm	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	Indicator Internally Driven	Panel Mount	DC	10 mA	2 mA

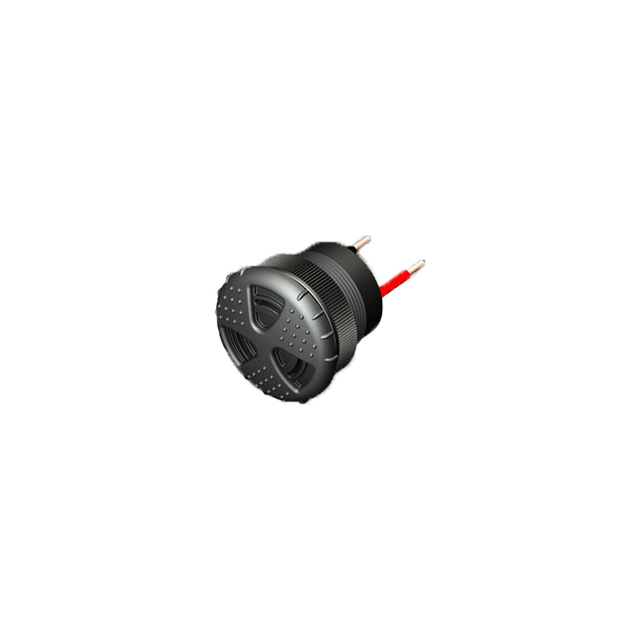

Floyd Bell Inc TMB-V86-531-W(F)	15 mA	2 mA	Top	Fast Pulse	2.9 kHz		Wire Leads		5 VDC	24 V	95 dB	UL UR	1.25 "	31.75 mm	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	Indicator Internally Driven	Panel Mount
Floyd Bell Inc TMB-V86-530-Q(F)			Top	Fast Pulse	2.9 kHz	0.25 "	Quick Connect Tab	6.35 mm	5 VDC	30 V	95 dB	UL UR	1.25 "	31.75 mm	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	Indicator Internally Driven	Panel Mount	DC	10 mA	2 mA
Floyd Bell Inc TMB-V86-530-W(F)			Top	Fast Pulse	2.9 kHz		Wire Leads		5 VDC	30 V	95 dB	UL UR	1.25 "	31.75 mm	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	Indicator Internally Driven	Panel Mount	DC	10 mA	2 mA

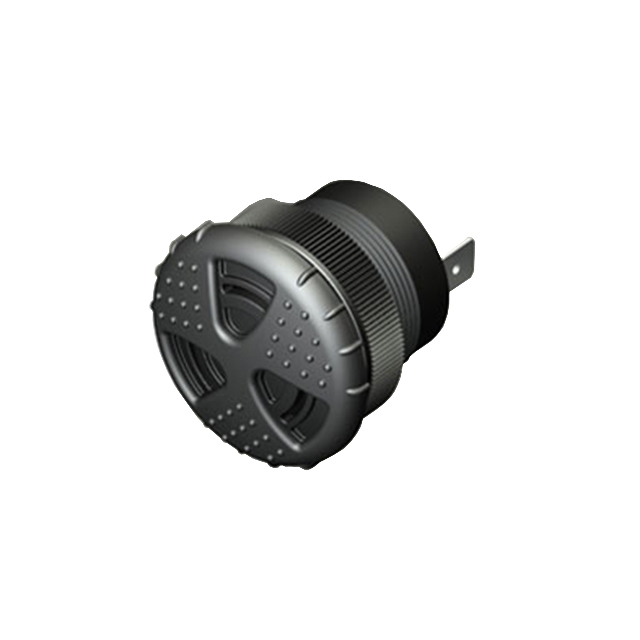

Floyd Bell Inc TMB-V86-201-Q(S)	15 mA	2 mA	Top	Pulse Slow	2.9 kHz	0.25 "	Quick Connect Tab	6.35 mm	30 VDC	120 V	95 dB	UL UR	1.25 "	31.75 mm		1.409 in	Piezo	IP68 - Dust Tight Waterproof	Indicator Internally Driven	Panel Mount	AC			35.8 mm
Floyd Bell Inc TMB-V86-948-W(S)			Top	Pulse Slow	2.9 kHz		Wire Leads		9 V	48 V	95 dB	UL UR	1.25 "	31.75 mm	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	Indicator Internally Driven	Panel Mount	DC	10 mA	2 mA

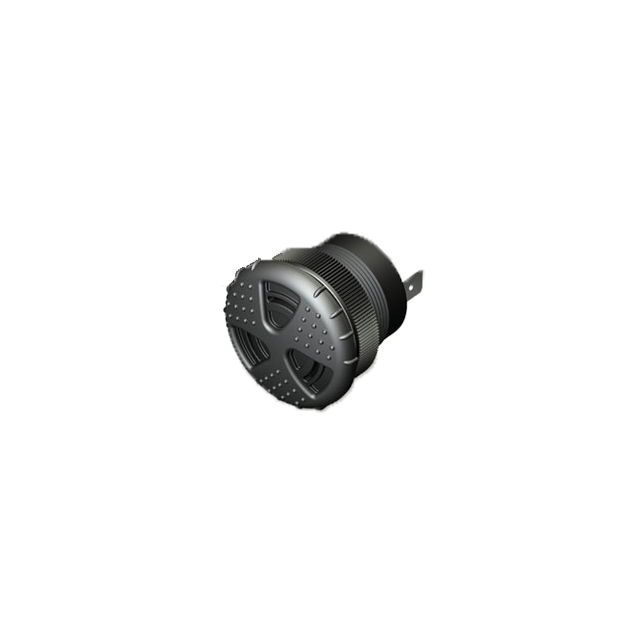

Floyd Bell Inc TMB-V86-531-S(F)	15 mA	2 mA	Top	Fast Pulse	2.9 kHz	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	5 VDC	24 V	95 dB	UL UR	1.25 "	31.75 mm	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	Indicator Internally Driven	Panel Mount
Floyd Bell Inc TMB-V86-531-Q(F)	15 mA	2 mA	Top	Fast Pulse	2.9 kHz	0.25 "	Quick Connect Tab	6.35 mm	5 VDC	24 V	95 dB	UL UR	1.25 "	31.75 mm	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	Indicator Internally Driven	Panel Mount
Floyd Bell Inc TMB-V86-531-Q(S)	15 mA	2 mA	Top	Pulse Slow	2.9 kHz	0.25 "	Quick Connect Tab	6.35 mm	5 VDC	24 V	95 dB	UL UR	1.25 "	31.75 mm	1.41 in	35.81 mm	Piezo	IP68 - Dust Tight Waterproof	Indicator Internally Driven	Panel Mount
