ELG-200 Series

Catalog

LED CC AC/DC DRIVER 200W

Part	Mounting Type	Termination Style	Features	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Voltage - Isolation	Voltage - Input (Max) [Max]	Efficiency	Type	Voltage - Output [Min]	Voltage - Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Current - Output (Max) [Max]	Approval Agency	Topology	Ratings	Voltage - Output	Size / Dimension [y]	Size / Dimension [z]	Dimming
MEAN WELL USA Inc. ELG-200-C1050A-3Y	Chassis Mount	Wire Leads	OTP OVP SCP	100 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	1	3750 VDC	305 VAC	93 %	Constant Current	95 V	190 V	85 °C	-40 C	200 Watts	1.05 A	CB CCC CE cURus EAC ENEC KC RCM	AC DC Converter	IP65
MEAN WELL USA Inc. ELG-200-C1750A-3Y	Chassis Mount	Wire Leads	OTP OVP SCP	100 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	1	3750 VDC	305 VAC	92 %	Constant Current	57 V	114 V	85 °C	-40 C	200 Watts	1.75 A	CB CCC CE cURus EAC ENEC KC RCM	AC DC Converter	IP65
MEAN WELL USA Inc. ELG-200-48DA	Chassis Mount	Wire Leads	OCP OTP OVP SCP	100 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	1	3750 VDC	305 VAC	93 %	Constant Current Voltage			90 °C	-40 C	200 Watts	4.16 A	CB CCC CE cURus EAC ENEC KC RCM	AC DC Converter	IP67	48 V
MEAN WELL USA Inc. ELG-200-54	Chassis Mount	Wire Leads	OCP OTP OVP SCP	100 VAC	2.8 in		200 mm	7.87 in		1.48 "	1	3750 VDC	305 VAC	93 %	Constant Current Voltage			90 °C	-40 C	201 W	3.72 A	CB CCC CE cURus ENEC	AC DC Converter	IP67	54 V	71 mm	37.5 mm
MEAN WELL USA Inc. ELG-200-C700	Chassis Mount	Wire Leads	OTP OVP SCP	100 VAC	2.8 in		200 mm	7.87 in		1.48 "	1	3750 VDC	305 VAC	93 %	Constant Current	142 V	286 V	85 °C	-40 C	200 Watts	700 mA	CB CCC CE cURus ENEC	AC DC Converter	IP67		71 mm	37.5 mm

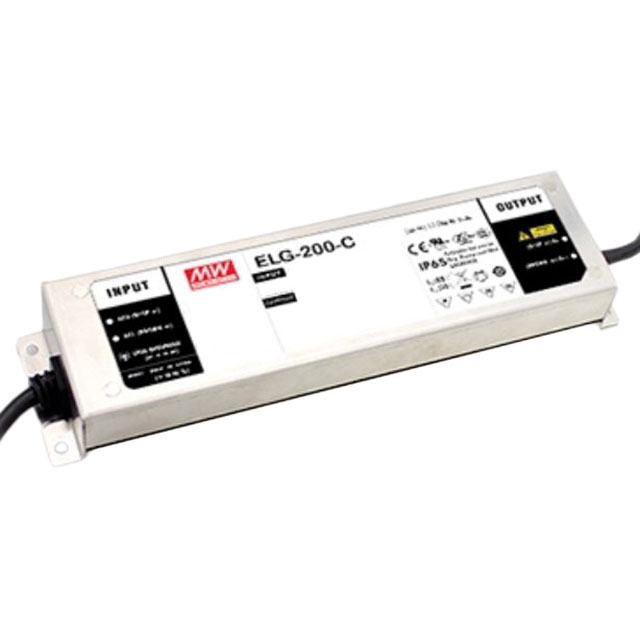

MEAN WELL USA Inc. ELG-200-C1050B	Chassis Mount	Wire Leads	OTP OVP SCP	100 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	1	3750 VDC	305 VAC	93 %	Constant Current	95 V	190 V	85 °C	-40 C	200 Watts	1.05 A	CB CCC CE cURus EAC ENEC RCM	AC DC Converter	IP67				Analog PWM
MEAN WELL USA Inc. ELG-200-C1400A-3Y	Chassis Mount	Wire Leads	OTP OVP SCP	100 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	1	3750 VDC	305 VAC	92 %	Constant Current	71 V	142 V	85 °C	-40 C	199 W	1.4 A	CB CCC CE cURus EAC ENEC KC RCM	AC DC Converter	IP65
MEAN WELL USA Inc. ELG-200-24	Chassis Mount	Wire Leads	OCP OTP OVP SCP	100 VAC	2.8 in		200 mm	7.87 in		1.48 "	1	3750 VDC	305 VAC	92 %	Constant Current Voltage			90 °C	-40 C	202 W	8.4 A	CB CCC CE cURus ENEC	AC DC Converter	IP67	24 V	71 mm	37.5 mm
MEAN WELL USA Inc. ELG-200-12D2	Chassis Mount	Wire Leads	OCP OTP OVP SCP	100 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	1	3750 VDC	305 VAC	90 %	Constant Current Voltage			90 °C	-40 C	192 W	16 A	CB CCC CE cURus EAC ENEC RCM	AC DC Converter	IP67	12 V
MEAN WELL USA Inc. ELG-200-C2100A	Chassis Mount	Wire Leads	OTP OVP SCP	100 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	1	3750 VDC	305 VAC	92 %	Constant Current	48 V	96 V	85 °C	-40 C	202 W	2.1 A	CB CCC CE cURus EAC ENEC KC RCM	AC DC Converter	IP65
