C14610A010 Series

Catalog

INSERT MALE 10POS+1GND SCREW

Part	Contact Finish	Contact Material	Material Flammability Rating	Color	Housing Material	Termination Style	Voltage Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Type	Gender	Size	Contact Type

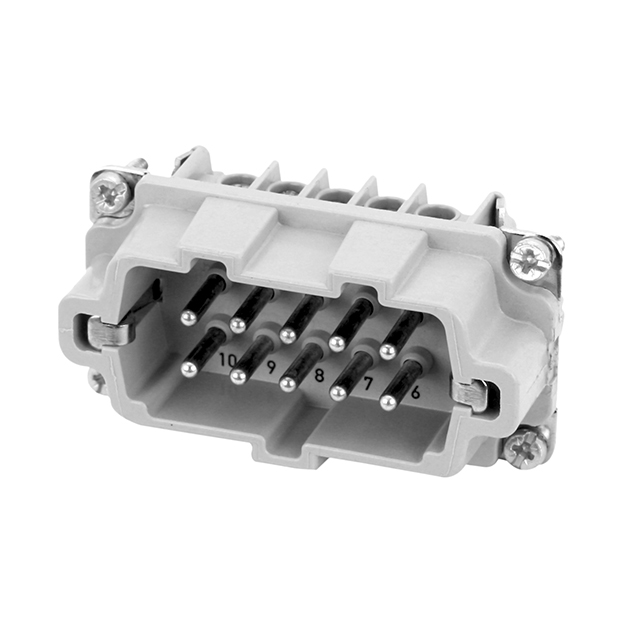

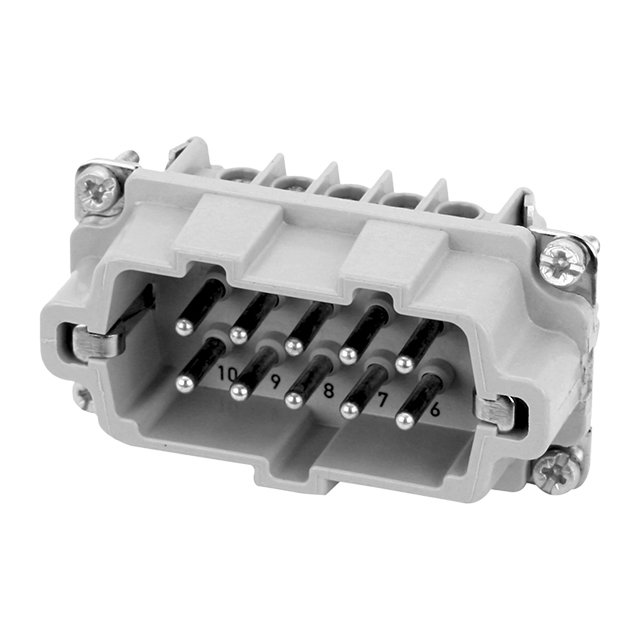

Amphenol Tuchel Industrial C14610A0101021	Silver	Brass	UL94 V-0	Gray	Glass Filled Polycarbonate (PC)	Screw	600 V	10+Ground	125 °C	-40 C	10 A	Insert	Male	E10

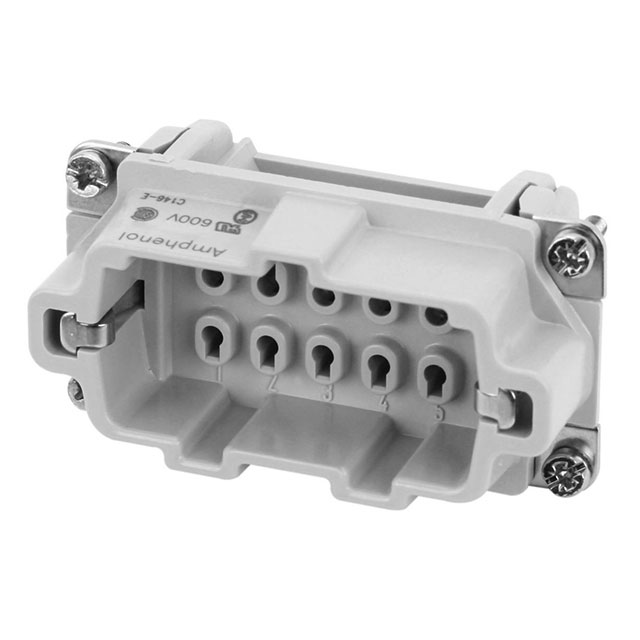

Amphenol Tuchel Industrial C14610A0100001			UL94 V-0	Gray	Glass Filled Polycarbonate (PC)	Crimp	600 V	10+Ground	125 °C	-40 C	10 A	Insert without Contacts	Male	E10	C 16-3
Amphenol Tuchel Industrial C14610A0100021	Silver	Brass	UL94 V-0	Gray	Glass Filled Polycarbonate (PC)	Screw	600 V	10+Ground	125 °C	-40 C	10 A	Insert	Male	E10

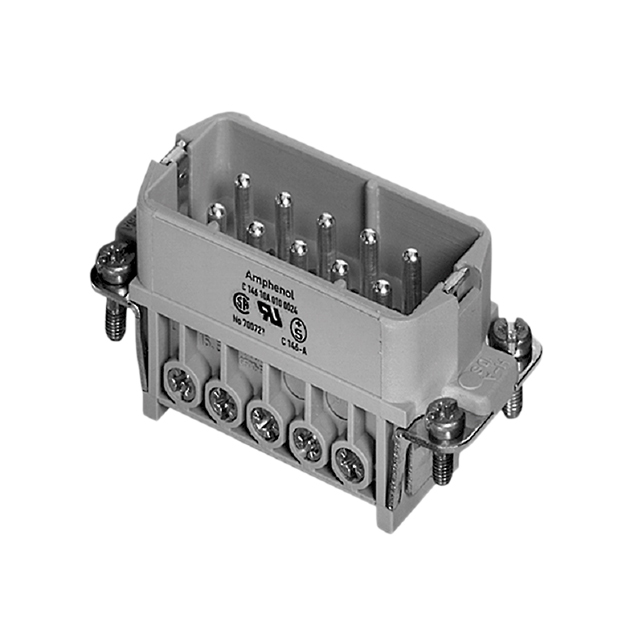

Amphenol Tuchel Industrial C14610A0100024	Silver	Brass	UL94 V-0		Polybutylene Terephthalate (PBT)	Screw	250 V	10+Ground	100 °C	-40 C	14 A	Insert	Male	A10

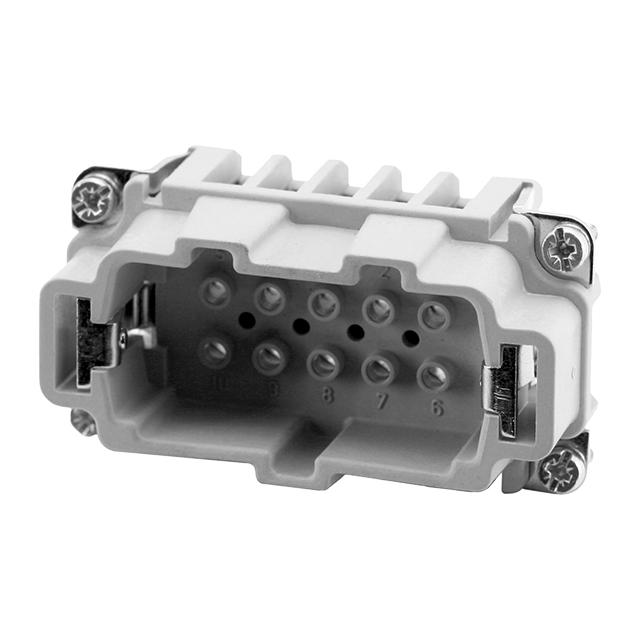

Amphenol Tuchel Industrial C14610A0105001			UL94 V-0	Gray	Glass Filled Polycarbonate (PC)	Crimp	600 V	10+Ground	125 °C	-40 C	10 A	Insert without Contacts	Male	E10	heavy\|mate® C146 E EE
