M13143 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

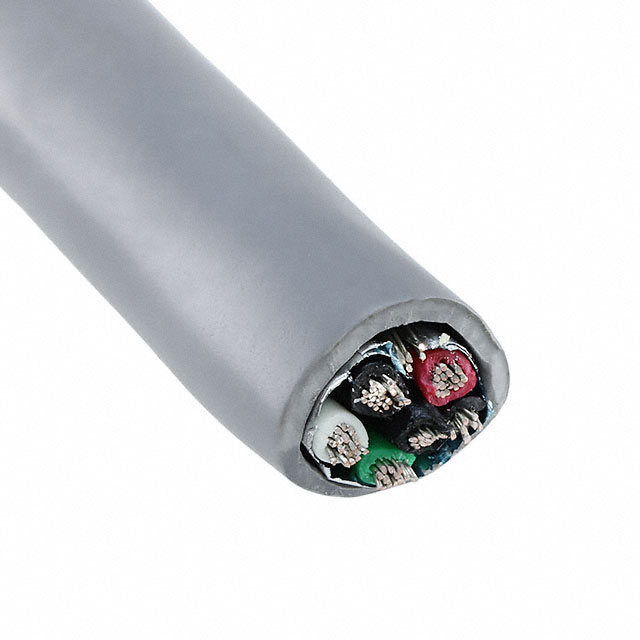

MULTI-CONDUCTOR CABLES 20 AWG 3 PAIR COMMUNICATION CABLES, FOIL, 500 FT - SLATE
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Voltage | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Shield Type | Jacket Color | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Ratings | Length | Length | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 0.813 mm | 0.032 in | Polyethylene (PE) | 300 VDC | Multi-Pair | 28 AWG | 7 | 6 | Foil | Slate | Poly-Vinyl Chloride (PVC) | 8.23 mm | 0.324 " | 80 °C | -20 ░C | 20 AWG | UL Style 2919 | 152.4 m | 500 ft | Copper Tinned | ||
ALPHA WIRE | Aluminum | 100 % | 0.813 mm | 0.032 in | Polyethylene (PE) | 300 VDC | Multi-Pair | 28 AWG | 7 | 6 | Foil | Slate | Poly-Vinyl Chloride (PVC) | 8.23 mm | 0.324 " | 80 °C | -20 ░C | 20 AWG | UL Style 2919 | 304.8 m | 1000 ft | Copper Tinned | ||
ALPHA WIRE | Aluminum | 100 % | 0.813 mm | 0.032 in | Polyethylene (PE) | 300 VDC | Multi-Pair | 28 AWG | 7 | 6 | Foil | Slate | Poly-Vinyl Chloride (PVC) | 8.23 mm | 0.324 " | 80 °C | -20 ░C | 20 AWG | UL Style 2919 | Copper Tinned | 100 ft | 30.5 m |
