087267 Series

Manufacturer: Molex

Catalog

CONN HEADER SMD 30POS 2MM

Part	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Applications	Contact Type	Contact Material	Style	Termination	Contact Finish - Post	Contact Finish - Mating	Shrouding	Number of Rows	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Positions Loaded	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Contact Shape	Insulation Material	Fastening Type	Number of Positions	Connector Type

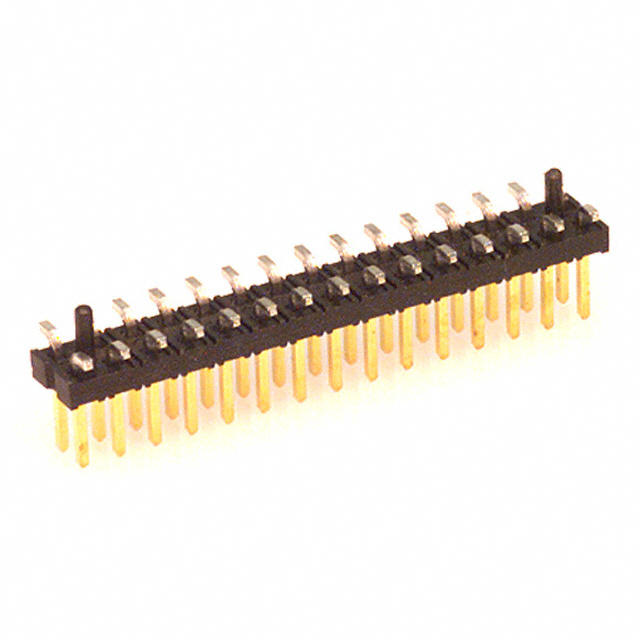

Molex 0872673050	Board Guide	74.8 Áin	1.9 Ám	UL94 V-0	Automotive General Purpose Telecommunications	Male Pin	Phosphor Bronze	Board to Cable/Wire	Solder	Tin-Lead	Gold	Unshrouded	2	Surface Mount	0.079 in	2 mm	15 µin	0.38 µm	Black	All	1.5 mm	0.059 "	0.079 in	2 mm	0.15 in	3.81 mm	Square	Nylon Polyamide (PA)	Push-Pull	30	Header

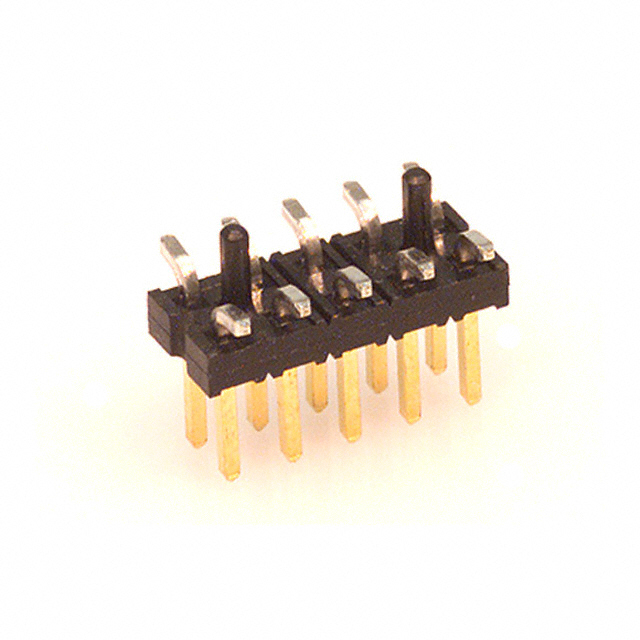

Molex 0872671050	Board Guide	74.8 Áin	1.9 Ám	UL94 V-0	Automotive General Purpose Telecommunications	Male Pin	Phosphor Bronze	Board to Cable/Wire	Solder	Tin-Lead	Gold	Unshrouded	2	Surface Mount	0.079 in	2 mm	15 µin	0.38 µm	Black	All	1.5 mm	0.059 "	0.079 in	2 mm	0.15 in	3.81 mm	Square	Nylon Polyamide (PA)	Push-Pull	10	Header

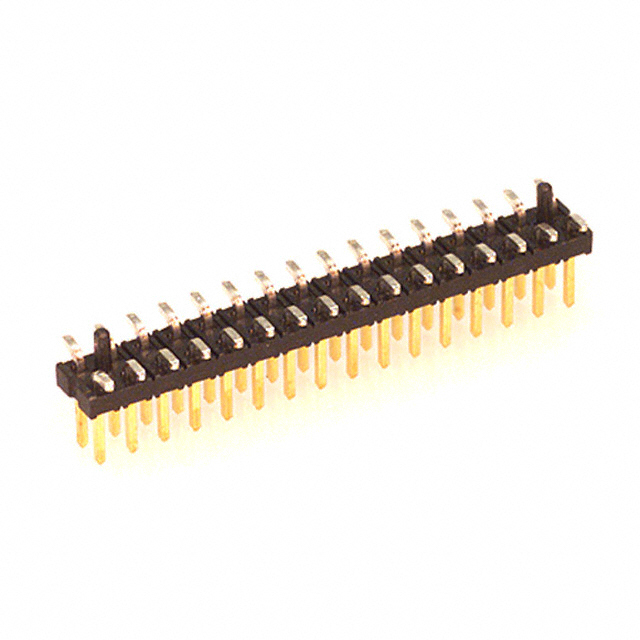

Molex 0872673250	Board Guide	74.8 Áin	1.9 Ám	UL94 V-0	Automotive General Purpose Telecommunications	Male Pin	Phosphor Bronze	Board to Cable/Wire	Solder	Tin-Lead	Gold	Unshrouded	2	Surface Mount	0.079 in	2 mm	15 µin	0.38 µm	Black	All	1.5 mm	0.059 "	0.079 in	2 mm	0.15 in	3.81 mm	Square	Nylon Polyamide (PA)	Push-Pull		Header

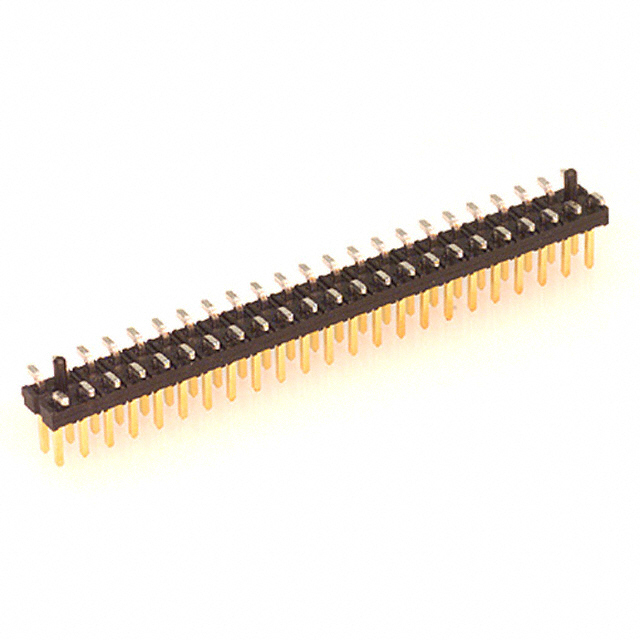

Molex 0872674650	Board Guide	74.8 Áin	1.9 Ám	UL94 V-0	Automotive General Purpose Telecommunications	Male Pin	Phosphor Bronze	Board to Cable/Wire	Solder	Tin-Lead	Gold	Unshrouded	2	Surface Mount	0.079 in	2 mm	15 µin	0.38 µm	Black	All	1.5 mm	0.059 "	0.079 in	2 mm	0.15 in	3.81 mm	Square	Nylon Polyamide (PA)	Push-Pull	46	Header

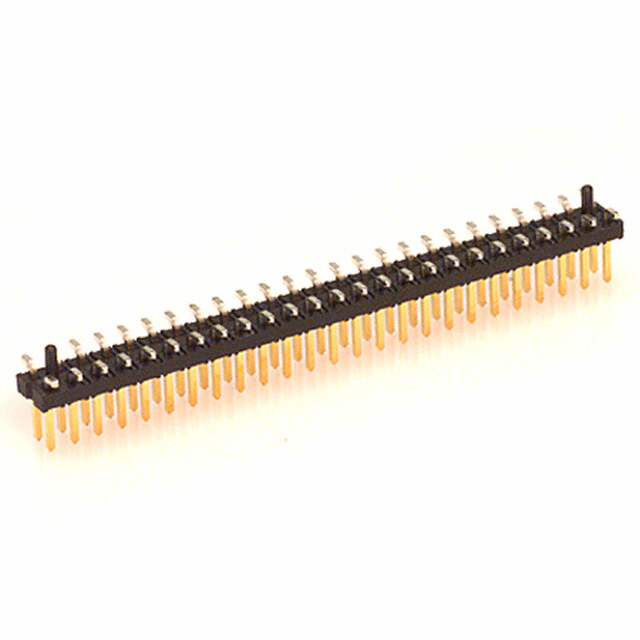

Molex 0872675050	Board Guide	74.8 Áin	1.9 Ám	UL94 V-0	Automotive General Purpose Telecommunications	Male Pin	Phosphor Bronze	Board to Cable/Wire	Solder	Tin-Lead	Gold	Unshrouded	2	Surface Mount	0.079 in	2 mm	15 µin	0.38 µm	Black	All	1.5 mm	0.059 "	0.079 in	2 mm	0.15 in	3.81 mm	Square	Nylon Polyamide (PA)	Push-Pull	50	Header
