68697 Series

Catalog

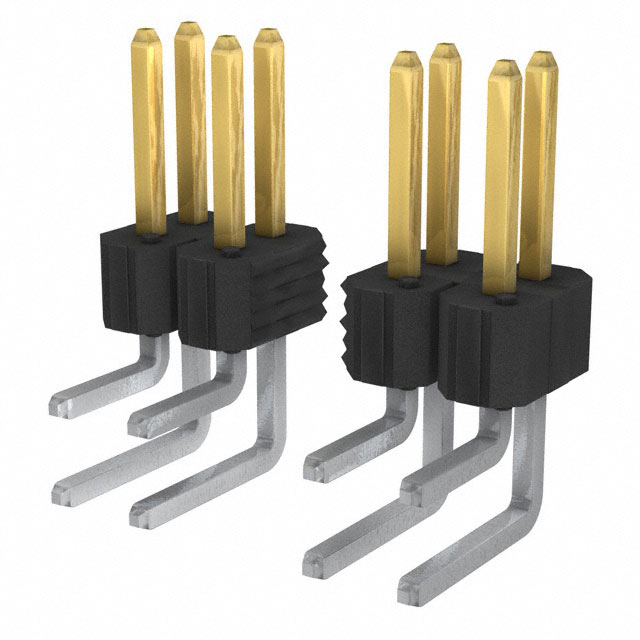

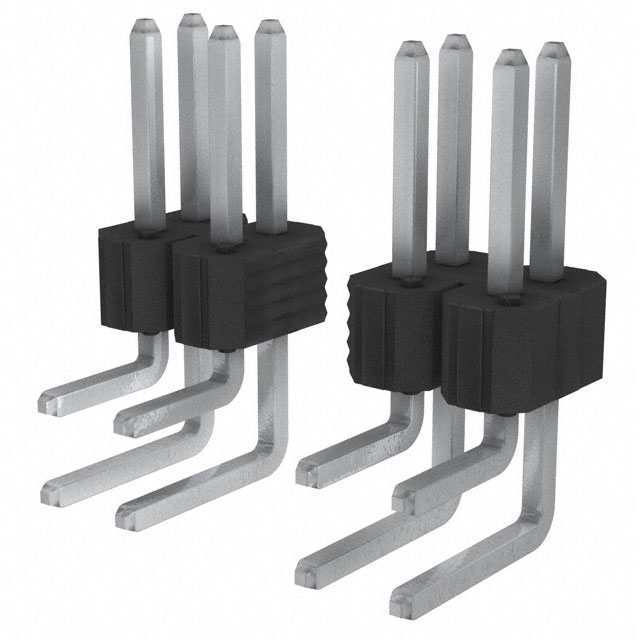

CONN HEADER R/A 70POS 2.54MM

Part	Voltage Rating	Contact Material	Current Rating (Amps)	Contact Finish - Post	Contact Type	Number of Positions Loaded	Mounting Type	Termination	Contact Shape	Number of Positions	Insulation Color	Number of Rows	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Fastening Type	Connector Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Contact Finish - Mating
Amphenol ICC (FCI) 68697-470HLF	110 VDC	Phosphor Bronze	5 A	Tin	Male Pin	All	Through Hole Right Angle	Solder	Square	70	Black	2	UL94 V-0	2.54 mm	0.1 in	0.23 in	5.84 mm	2.54 çm	100 çin	4.83 mm	0.19 in	Push-Pull	Header	0.1 in	2.54 mm	3.18 mm	0.125 in	Unshrouded
Amphenol ICC (FCI) 68697-272HLF	110 VDC	Phosphor Bronze	5 A		Male Pin	All	Through Hole Right Angle	Solder	Square	72	Black	2	UL94 V-0	2.54 mm	0.1 in	0.23 in	5.84 mm	0.38 µm	15 µin	4.83 mm	0.19 in	Push-Pull	Header	0.1 in	2.54 mm	3.18 mm	0.125 in	Unshrouded	Gold or Gold GXT™
Amphenol ICC (FCI) 68697-446HLF	110 VDC	Phosphor Bronze	5 A	Tin	Male Pin	All	Through Hole Right Angle	Solder	Square	46	Black	2	UL94 V-0	2.54 mm	0.1 in	0.23 in	5.84 mm	2.54 çm	100 çin	4.83 mm	0.19 in	Push-Pull	Header	0.1 in	2.54 mm	3.18 mm	0.125 in	Unshrouded
Amphenol ICC (FCI) 68697-472		Phosphor Bronze			Male Pin	All	Through Hole Right Angle	Solder	Square	72	Black	2	UL94 V-0	2.54 mm	0.1 in	0.23 in	5.84 mm	2.54 çm	100 çin	4.83 mm	0.19 in	Push-Pull	Header	0.1 in	2.54 mm	3.18 mm	0.125 in	Unshrouded
Amphenol ICC (FCI) 68697-448HLF	110 VDC	Phosphor Bronze	5 A	Tin	Male Pin	All	Through Hole Right Angle	Solder	Square	48	Black	2	UL94 V-0	2.54 mm	0.1 in	0.23 in	5.84 mm	2.54 çm	100 çin	4.83 mm	0.19 in	Push-Pull	Header	0.1 in	2.54 mm	3.18 mm	0.125 in	Unshrouded
Amphenol ICC (FCI) 68697-272		Phosphor Bronze			Male Pin	All	Through Hole Right Angle	Solder	Square	72	Black	2	UL94 V-0	2.54 mm	0.1 in	0.23 in	5.84 mm	0.38 µm	15 µin	4.83 mm	0.19 in	Push-Pull	Header	0.1 in	2.54 mm	3.18 mm	0.125 in	Unshrouded	Gold or Gold GXT™
Amphenol ICC (FCI) 68697-472HLF	110 VDC	Phosphor Bronze	5 A	Tin	Male Pin	All	Through Hole Right Angle	Solder	Square	72	Black	2	UL94 V-0	2.54 mm	0.1 in	0.23 in	5.84 mm	2.54 çm	100 çin	4.83 mm	0.19 in	Push-Pull	Header	0.1 in	2.54 mm	3.18 mm	0.125 in	Unshrouded
Amphenol ICC (FCI) 68697-458HLF	110 VDC	Phosphor Bronze	5 A	Tin	Male Pin	All	Through Hole Right Angle	Solder	Square	58	Black	2	UL94 V-0	2.54 mm	0.1 in	0.23 in	5.84 mm	2.54 çm	100 çin	4.83 mm	0.19 in	Push-Pull	Header	0.1 in	2.54 mm	3.18 mm	0.125 in	Unshrouded

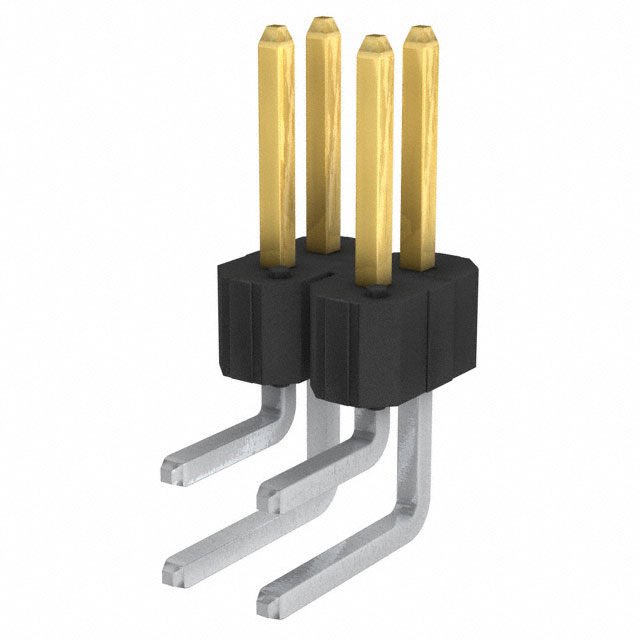

Amphenol ICC (FCI) 68697-104HLF	110 VDC	Phosphor Bronze	5 A		Male Pin	All	Through Hole Right Angle	Solder	Square	4	Black	2	UL94 V-0	2.54 mm	0.1 in	0.23 in	5.84 mm	0.76 Ám	30 Áin	4.83 mm	0.19 in	Push-Pull	Header	0.1 in	2.54 mm	3.18 mm	0.125 in	Unshrouded	Gold or Gold GXT™
Amphenol ICC (FCI) 68697-468HLF	110 VDC	Phosphor Bronze	5 A	Tin	Male Pin	All	Through Hole Right Angle	Solder	Square	68	Black	2	UL94 V-0	2.54 mm	0.1 in	0.23 in	5.84 mm	2.54 çm	100 çin	4.83 mm	0.19 in	Push-Pull	Header	0.1 in	2.54 mm	3.18 mm	0.125 in	Unshrouded
