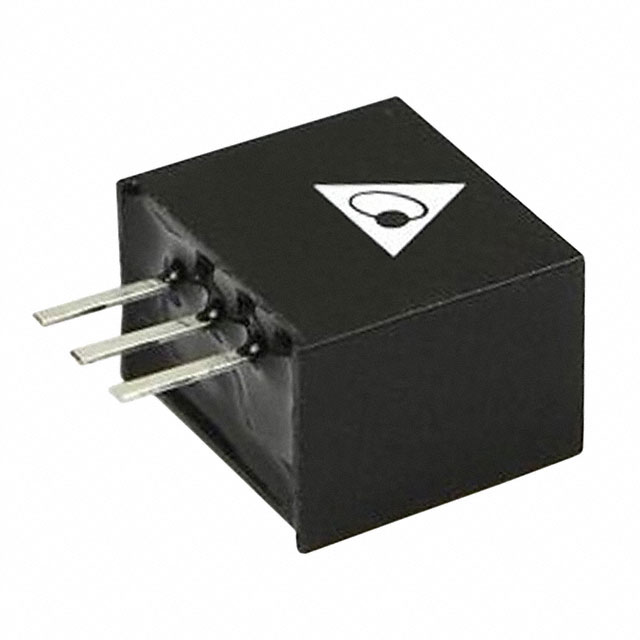

PM05S Series
Manufacturer: Delta Electronics
Beta
⌘K
DC DC CONVERTER 3.3V 2W
| Part | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Number of Outputs | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Applications | Efficiency | Current - Output (Max) [Max] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Package / Case | Power (Watts) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 32 V | 4.75 V | 1 | Through Hole | 0.45 " | 0.3 " | 10.2 mm | 11.5 mm | 7.6 mm | 0.4 " | ITE (Commercial) | 91 % | 500 mA | Linear Regulator Replacement | 90 °C | -40 C | 3.3 V | 3-SIP Module | 2 W | OCP OTP SCP |
Delta Electronics | 32 V | 4.75 V | 1 | Through Hole | 0.45 " | 0.3 " | 10.2 mm | 11.5 mm | 7.6 mm | 0.4 " | ITE (Commercial) | 500 mA | Linear Regulator Replacement | 90 °C | -40 C | 1.8 V | 3-SIP Module | 0.9 W | OCP OTP SCP | |
Delta Electronics | 32 V | 18 V | 1 | Through Hole | 0.45 " | 0.3 " | 10.2 mm | 11.5 mm | 7.6 mm | 0.4 " | ITE (Commercial) | 97 % | 500 mA | Linear Regulator Replacement | 90 °C | -40 C | 15 V | 3-SIP Module | 8 W | OCP OTP SCP |
Delta Electronics | 32 V | 4.75 V | 1 | Through Hole | 0.45 " | 0.3 " | 10.2 mm | 11.5 mm | 7.6 mm | 0.4 " | ITE (Commercial) | 87 % | 500 mA | Linear Regulator Replacement | 90 °C | -40 C | 2.5 V | 3-SIP Module | OCP OTP SCP | |
Delta Electronics | 32 V | 15 V | 1 | Through Hole | 0.45 " | 0.3 " | 10.2 mm | 11.5 mm | 7.6 mm | 0.4 " | ITE (Commercial) | 97 % | 500 mA | Linear Regulator Replacement | 90 °C | -40 C | 12 V | 3-SIP Module | 6 W | OCP OTP SCP |
 Delta Electronics | 32 V | 11 V | 1 | Through Hole | 0.45 " | 0.3 " | 10.2 mm | 11.5 mm | 7.6 mm | 0.4 " | ITE (Commercial) | 96 % | 500 mA | Linear Regulator Replacement | 90 °C | -40 C | 9 V | 3-SIP Module | 5 W | OCP OTP SCP |
