DME-04 Series

Manufacturer: Adam Tech

Catalog

WIRE TO BOARD FEMALE 6.35 MM SINGLE ROW

Part	Contact Material	Applications	Insulation Material	Contact Shape	Insulation Color	Pitch - Mating	Pitch - Mating	Connector Type	Number of Rows	Termination	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Type	Contact Finish - Post	Fastening Type	Mounting Type	Number of Positions	Contact Length - Post [x]	Shrouding	Style	Features

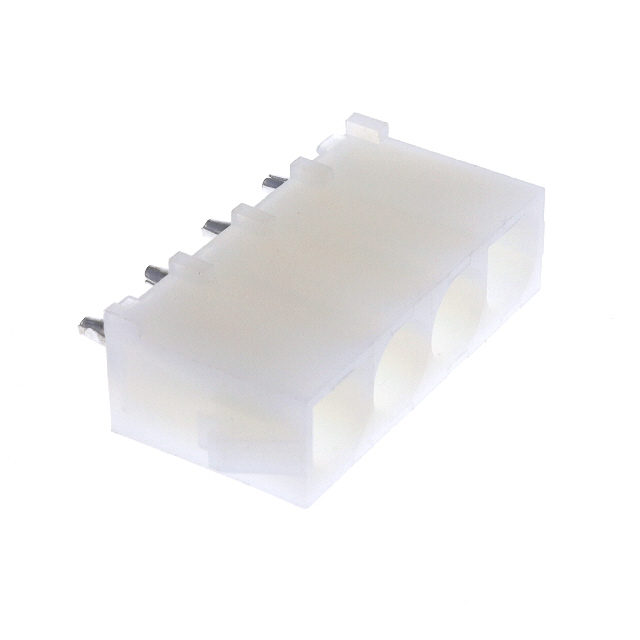

Adam Tech DME-04-S-S	Brass	General Purpose	Nylon 6/6 Polyamide (PA66)	Circular	Natural	6.35 mm	0.25 in	Receptacle	1	Solder	UL94 V-2	4.5 mm	0.177 in	All	85 °C	-25 °C	600 VAC	13 A	0.55 in	13.97 mm	Female Socket	Tin	Locking Ramp	Through Hole	4
Adam Tech DME-04-S2-S	Phosphor Bronze		Nylon 6/6 Polyamide (PA66)	Circular	Natural	6.35 mm	0.25 in	Header	1	Solder	UL94 V-2	4 mm		All	105 ░C	-40 C		12 Amps	0.581 "	14.75 mm 14.76 mm	Male Pin	Tin	Locking Ramp	Through Hole	4	0.157 in	Shrouded - 4 Wall	Board to Cable/Wire

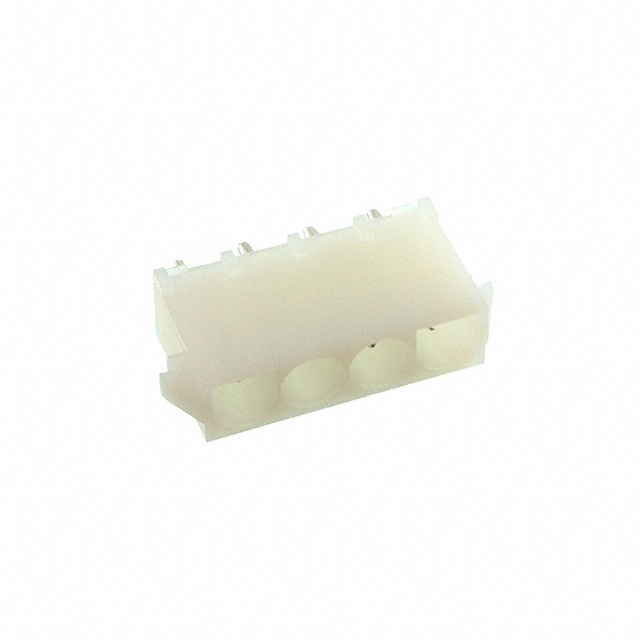

Adam Tech DME-04-S-P-S	Phosphor Bronze	General Purpose	Nylon 6/6 Polyamide (PA66)	Circular	Natural	6.35 mm	0.25 in	Receptacle	1	Solder	UL94 V-2	4.5 mm	0.177 in	All	85 °C	-25 °C	600 VAC	13 A	0.55 in	13.97 mm	Female Socket	Tin	Locking Ramp	Through Hole	4				Board Guide

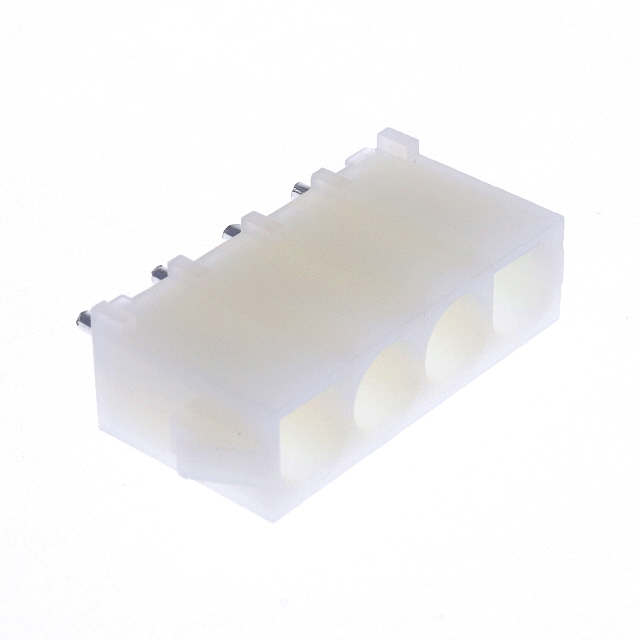

Adam Tech DME-04-S2-P-S	Phosphor Bronze		Nylon 6/6 Polyamide (PA66)	Circular	Natural	6.35 mm	0.25 in	Header	1	Solder	UL94 V-2	4 mm		All	105 ░C	-40 C		12 Amps	0.581 "	14.75 mm 14.76 mm	Male Pin	Tin	Locking Ramp	Through Hole	4	0.157 in	Shrouded - 4 Wall	Board to Cable/Wire	Board Guide
