7203-1571 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

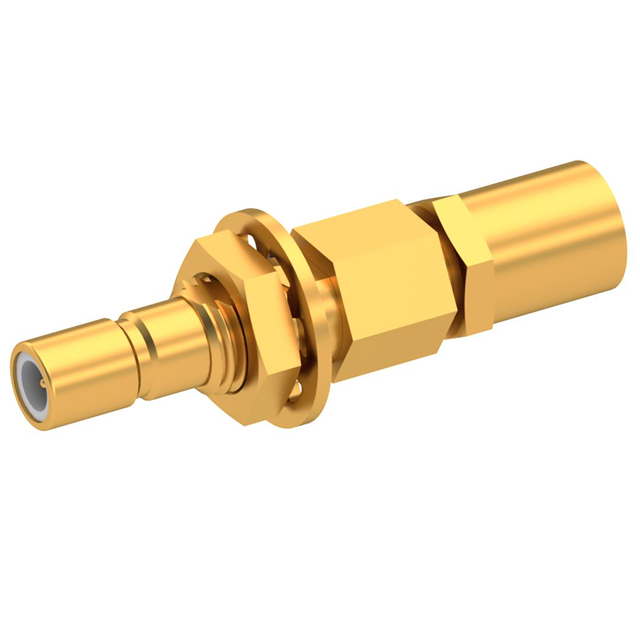

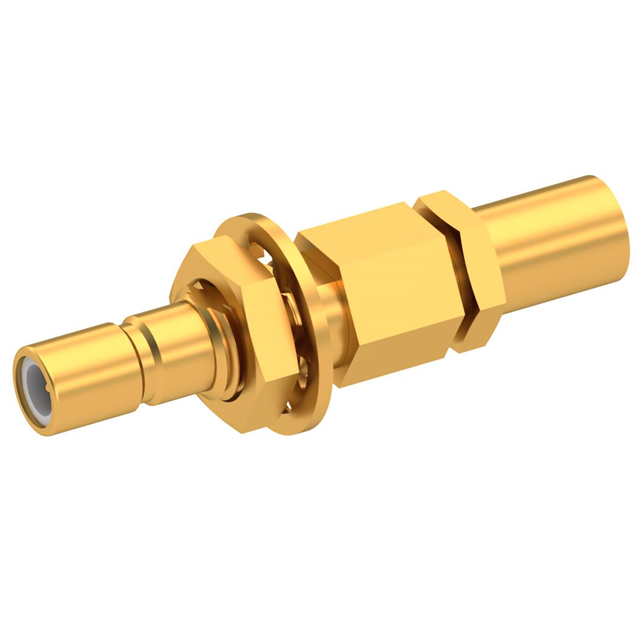

SSMB / STRAIGHT JACK MALE CRIMP
| Part | Body Material | Dielectric Material | Body Finish | Center Contact Plating | Mounting Type | Contact Termination | Number of Ports | Connector Style | Connector Type | Center Contact Material | Fastening Type | Mounting Feature | Housing Color | Cable Group | Shield Termination | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Includes | Frequency - Max [Max] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Gold | Gold | Panel Mount | Crimp | 1 | SSMB | Jack Male Pin | Brass | Snap-On | Bulkhead - Front Side Nut | Gold | RG-196 | Crimp | |||||||
 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Gold | Gold | Panel Mount | Crimp | 1 | SSMB | Jack Male Pin | Beryllium Copper | Snap-On | Bulkhead - Front Side Nut | Gold | RG-174 RG-179 RG-316 | Crimp | 250 V | -65 ░C | 165 °C | 500 | 1 Connector 1 Lockwasher 1 Nut | 12.4 GHz | 50 Ohms |
