DHU301 Series

Catalog

SWITCH PB SPDT 16A 125V

Part	Electrical Life	Type	Ingress Protection	Actuator Type	Actuator Marking	Mounting Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Color - Actuator/Cap	Voltage Rating - AC	Circuit	Switch Function	Termination Style	Termination Style [custom]	Termination Style [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Features

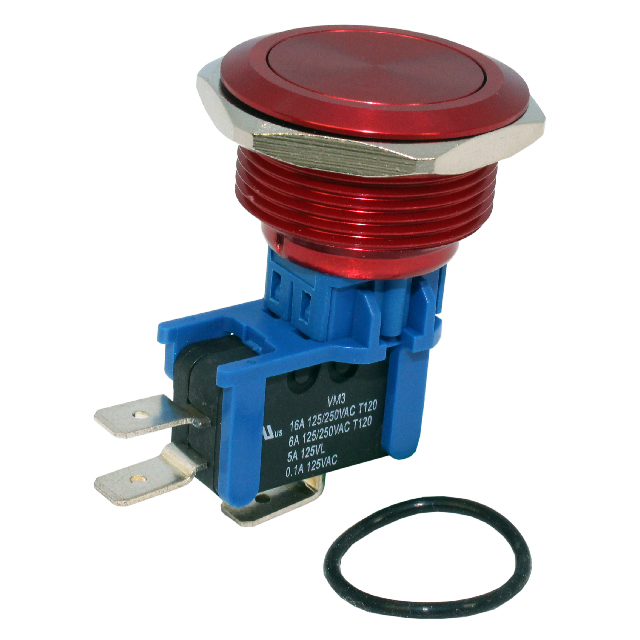

CIT Relay and Switch DHU301NARXZB	100000 Cycles	Anti-Vandal	IP67 - Dust Tight Waterproof	Button Flush Round	No Marking	Panel Mount Front	30 mm	16 A	Red	125 V	SPDT	On-Mom	Quick Connect	0.11 in	0.25 in	85 °C	-40 C

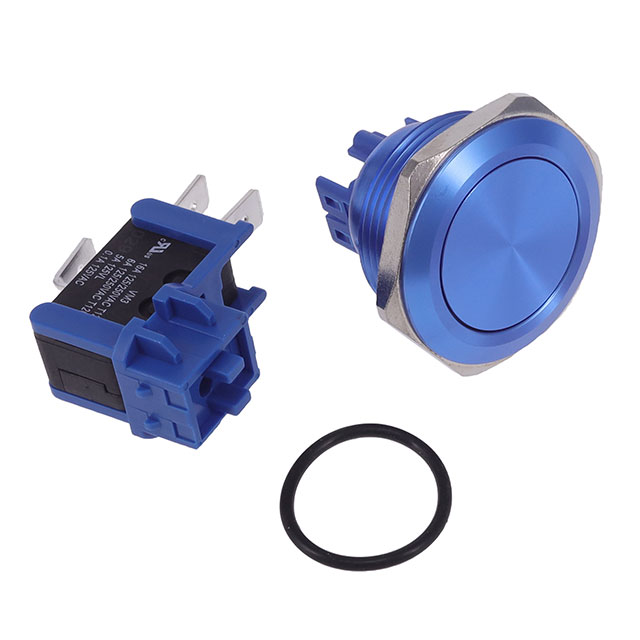

CIT Relay and Switch DHU301NAUXZB	100000 Cycles	Anti-Vandal	IP67 - Dust Tight Waterproof	Button Flush Round	No Marking	Panel Mount Front	30 mm	16 A	Blue	125 V	SPDT	On-Mom	Quick Connect	0.11 in	0.25 in	85 °C	-40 C

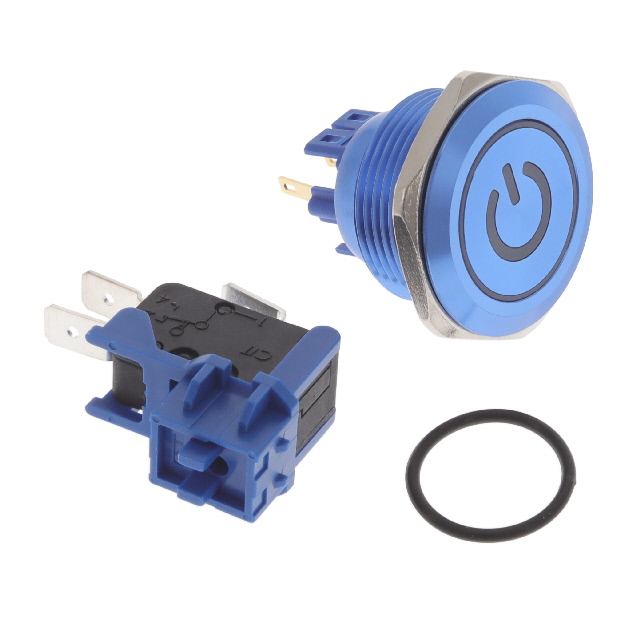

CIT Relay and Switch DHU301NGUBNB	100000 Cycles	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	Button Flush Round	No Marking	Panel Mount Front	30 mm	16 A	Blue	125 V	SPDT	On-Mom	Quick Connect	0.11 in	0.25 in	85 °C	-40 C	Blue LED
CIT Relay and Switch DHU301NGSRNB	100000 Cycles	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	Button Flush Round	No Marking	Panel Mount Front	30 mm	16 A	Silver	125 V	SPDT	On-Mom	Quick Connect	0.11 in	0.25 in	85 °C	-40 C	LED Red	Stainless Steel
CIT Relay and Switch DHU301LBRRGNB	100000 Cycles	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	Button Flush Round	No Marking	Panel Mount Front	30 mm	16 A	Red	125 V	SPDT	On-On	Quick Connect	0.11 in	0.25 in	85 °C	-40 C	Green/Red LED

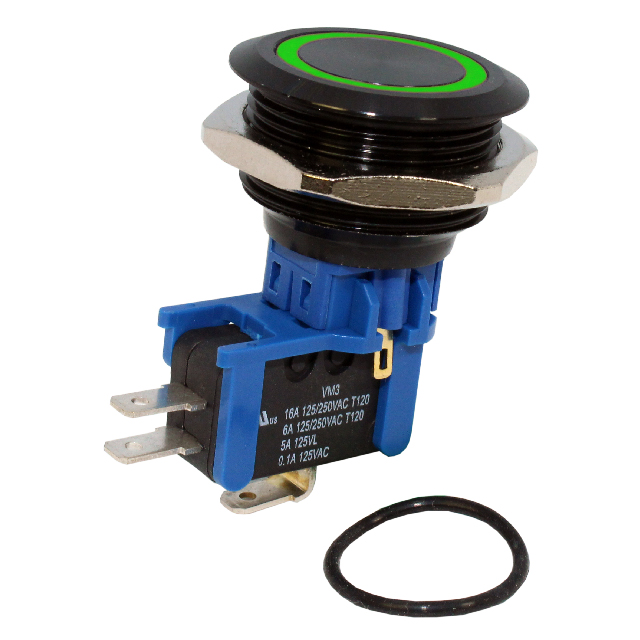

CIT Relay and Switch DHU301LBBGNB	100000 Cycles	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	Button Flush Round	No Marking	Panel Mount Front	30 mm	16 A	Black	125 V	SPDT	On-On	Quick Connect	0.11 in	0.25 in	85 °C	-40 C	Green LED

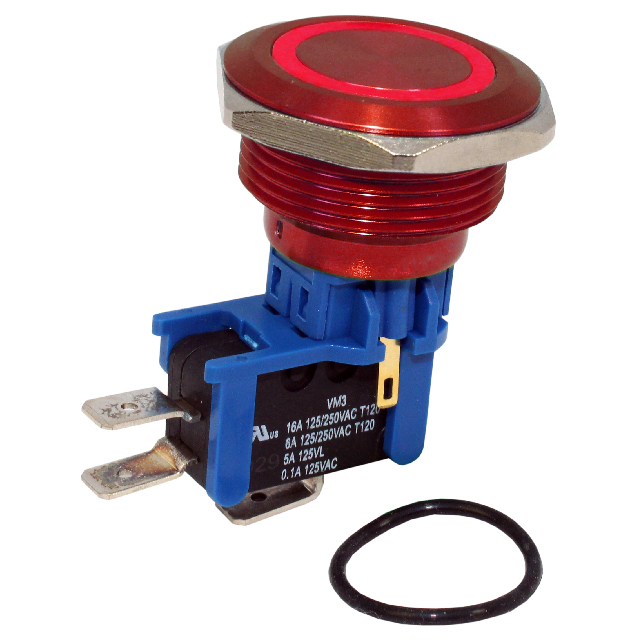

CIT Relay and Switch DHU301LBRRNB	100000 Cycles	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	Button Flush Round	No Marking	Panel Mount Front	30 mm	16 A	Red	125 V	SPDT	On-On	Quick Connect	0.11 in	0.25 in	85 °C	-40 C	LED Red
CIT Relay and Switch DHU301LBSRGNB	100000 Cycles	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	Button Flush Round	No Marking	Panel Mount Front	30 mm	16 A	Silver	125 V	SPDT	On-On	Quick Connect	0.11 in	0.25 in	85 °C	-40 C	Green/Red LED	Stainless Steel

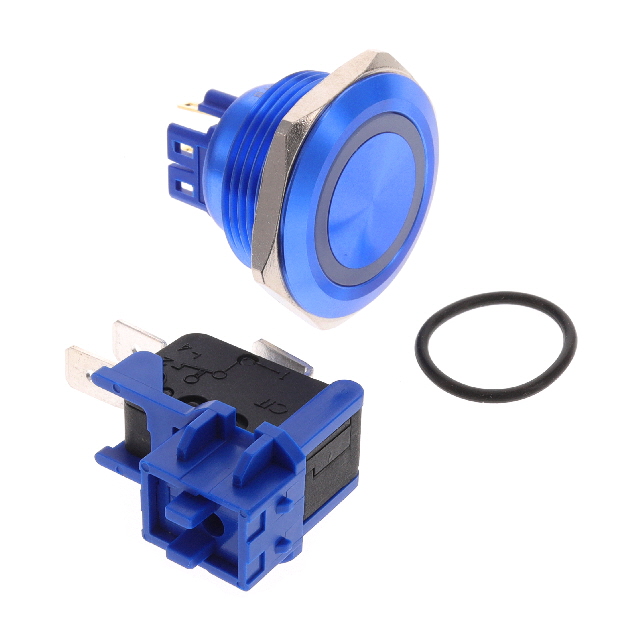

CIT Relay and Switch DHU301NBUBNB	100000 Cycles	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	Button Flush Round	No Marking	Panel Mount Front	30 mm	16 A	Blue	125 V	SPDT	On-Mom	Quick Connect	0.11 in	0.25 in	85 °C	-40 C	Blue LED

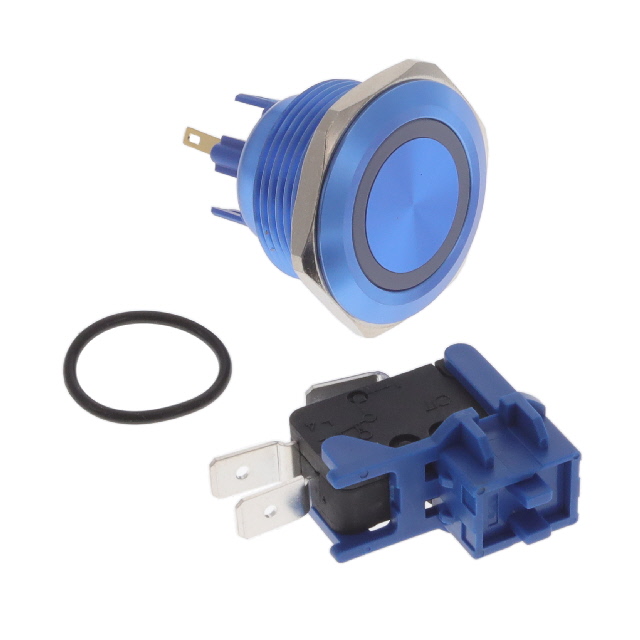

CIT Relay and Switch DHU301LBUBNB	100000 Cycles	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	Button Flush Round	No Marking	Panel Mount Front	30 mm	16 A	Blue	125 V	SPDT	On-On	Quick Connect	0.11 in	0.25 in	85 °C	-40 C	Blue LED
