LCBSM Series

Catalog

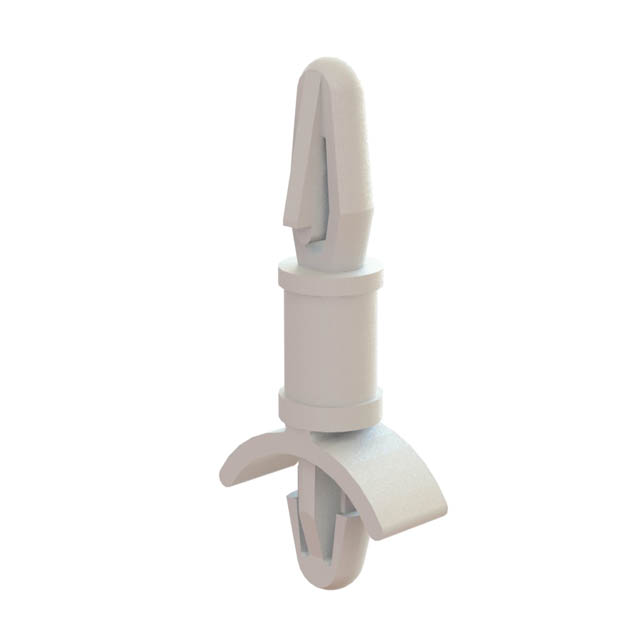

BRD SPT SNAP LOCK NYLON 5/8"

Part	Holding Type	Between Board Height	Between Board Height	Between Board Height	Material	Length - Overall [x]	Length - Overall [x]	Features	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Mounting Type	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Length - Overall	Length - Overall
Essentra Components LCBSM-10-01	Snap Lock	15.88 mm	0.625 in	5 8	Nylon	31.1 mm	1.224 in	Winged	1.57 mm	0.062 in	0.0625 in	3.18 mm	0.125 in	0.125 in	0.125 in	0.125 in	3.18 mm	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm
Essentra Components LCBSM-4-01	Snap Lock	0.25 in	6.35 mm		Nylon	21.6 mm	0.85 in	Winged	1.57 mm	0.062 in	0.0625 in	3.18 mm	0.125 in	0.125 in	0.125 in	0.125 in	3.18 mm	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm
Essentra Components LCBSM-3-01	Snap Lock	0.1875 in	0.188 in		Nylon	20 mm	0.787 in	Winged	1.57 mm	0.062 in	0.0625 in	3.18 mm	0.125 in	0.125 in	0.125 in	0.125 in	3.18 mm	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm
Essentra Components LCBSM-6-01	Snap Lock	9.53 mm	0.375 in	0.375 "	Nylon			Winged	1.57 mm	0.062 in	0.0625 in	3.18 mm	0.125 in	0.125 in	0.125 in	0.125 in	3.18 mm	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	24.7 mm	0.972 in
