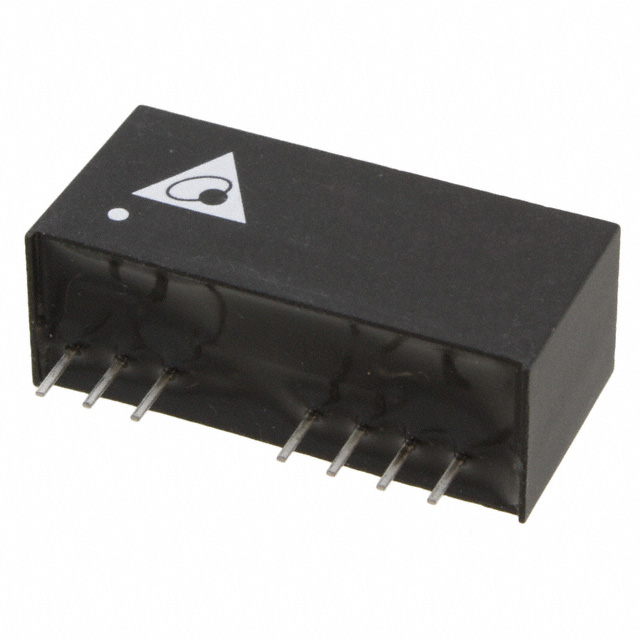

PH02D Series
Manufacturer: Delta Electronics
Beta
⌘K
DC DC CONVERTER +/-12V 2W
| Part | Voltage - Input (Min) [Min] | Efficiency | Voltage - Input (Max) [Max] | Power (Watts) | Voltage - Isolation | Applications | Mounting Type | Features | Type | Package / Case | Voltage - Output 2 | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Control Features | Current - Output (Max) | Current - Output (Max) | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 18 V | 76 % | 75 V | 2 W | 1.5 kV | Medical | Through Hole | Remote On/Off SCP UVLO | Isolated Module | 9-SIP Module 7 Leads | -12 V | 2 | 0.49 " 12.4 mm | 0.36 in 9.1 mm | 1.02 " 25.9 mm | 12 V | Active Low Enable | 83 mA | 83 mA | 85 °C | -40 C |
