DS3911 Series

Temperature-Controlled, Nonvolatile, I²C Quad DAC

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Temperature-Controlled, Nonvolatile, I²C Quad DAC

Part	Mounting Type	Package / Case	Number of D/A Converters	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Architecture	INL/DNL (LSB)	Reference Type	Differential Output	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Voltage - Supply, Digital [Min] [custom]	Voltage - Supply, Digital [Max] [custom]	Number of Bits	Data Interface	Supplier Device Package

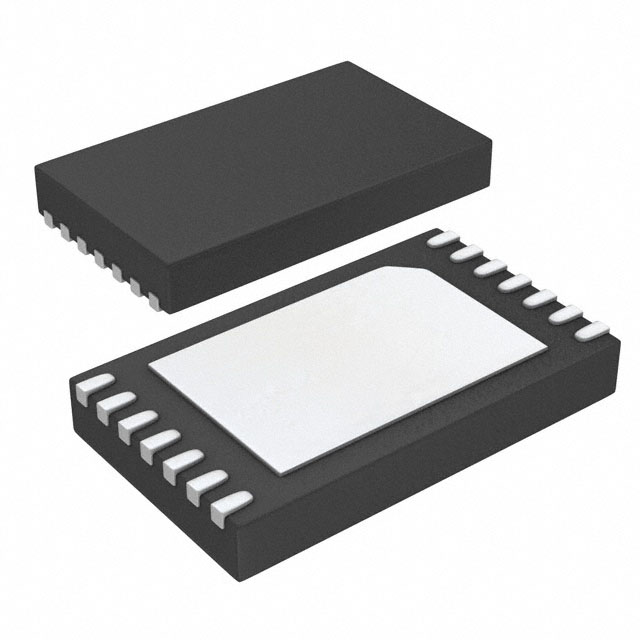

Analog Devices Inc./Maxim Integrated DS3911T+	Surface Mount	14-WFDFN Exposed Pad	4	-40 C	100 °C	Voltage - Buffered	Sigma-Delta	12 LSB	External		2.8 V	5.5 V	2.8 V	5.5 V	10	I2C	14-TDFN (3x5)
Analog Devices Inc./Maxim Integrated DS3911T+T	Surface Mount	14-WFDFN Exposed Pad	4	-40 C	100 °C	Voltage - Buffered	Sigma-Delta	12 LSB	External		2.8 V	5.5 V	2.8 V	5.5 V	10	I2C	14-TDFN (3x5)

Catalog

Temperature-Controlled, Nonvolatile, I²C Quad DAC

Description

The DS3911 is a quad, 10-bit delta-sigma output, nonvolatile (NV) controller that features an on-chip temperature sensor and associated analog-to-digital converter (ADC). The integrated temperature sensor indexes the up to 2°C resolution NV lookup tables (LUTs), encompassing a -40°C to +100°C temperature range. The LUT directly drives the delta-sigma digital-to-analog converter (DAC) outputs. This flexible LUT-based architecture allows the device to provide a temperature-compensated DAC output with arbitrary slope. Programming is accomplished by an I²C-compatible interface that operates at speeds of up to 400kHz.ApplicationsActive Optical CablesInstrumentation and Industrial ControlsLinear and Nonlinear CompensationOptical Transceivers
