RSC141C Series
Manufacturer: E-Switch
Beta
⌘K

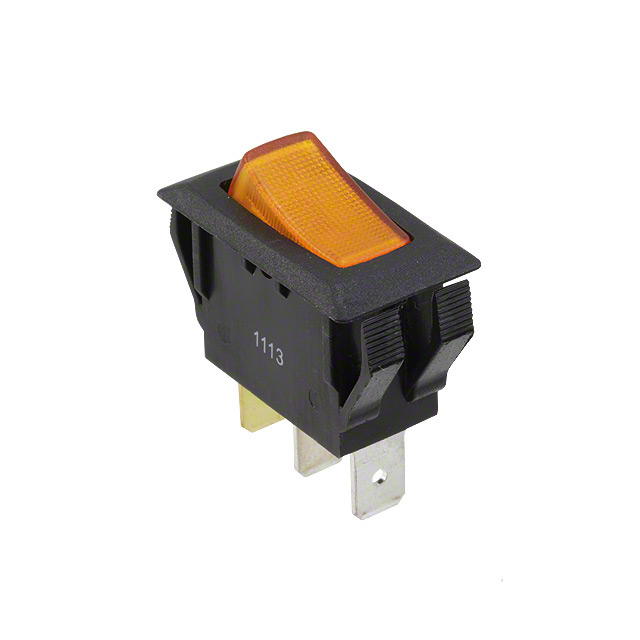

SWITCH ROCKER SPST 15A 125V
| Part | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Illumination Type, Color | Mounting Type | Switch Function | Illumination Voltage (Nominal) | Actuator Type | Circuit | Voltage Rating - AC | Color - Actuator/Cap | Approval Agency | Termination Style | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | -20 ░C | 105 ░C | 15 A | 13.9 mm | 28.6 mm | Neon Amber | Panel Mount Snap-In | On-Off | 125 VAC | Concave (Curved) - Illuminated | SPST | 125 V | Amber | CSA UL | Quick Connect - 0.250" (6.3mm) | No Marking |
 E-Switch | 10000 Cycles | -20 ░C | 105 ░C | 15 A | 13.9 mm | 28.6 mm | Neon Amber | Panel Mount Snap-In | On-Off | 250 VAC | Concave (Curved) - Illuminated | SPST | 125 V | Black | CSA UL | Quick Connect - 0.250" (6.3mm) | No Marking |
