R12532 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

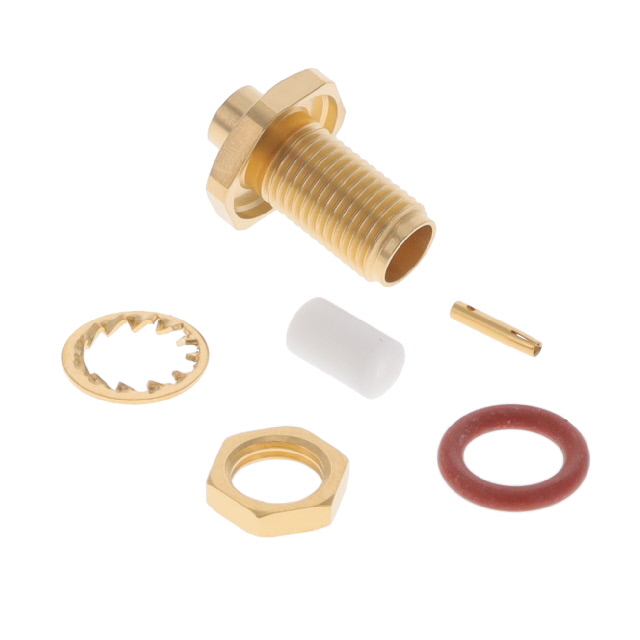

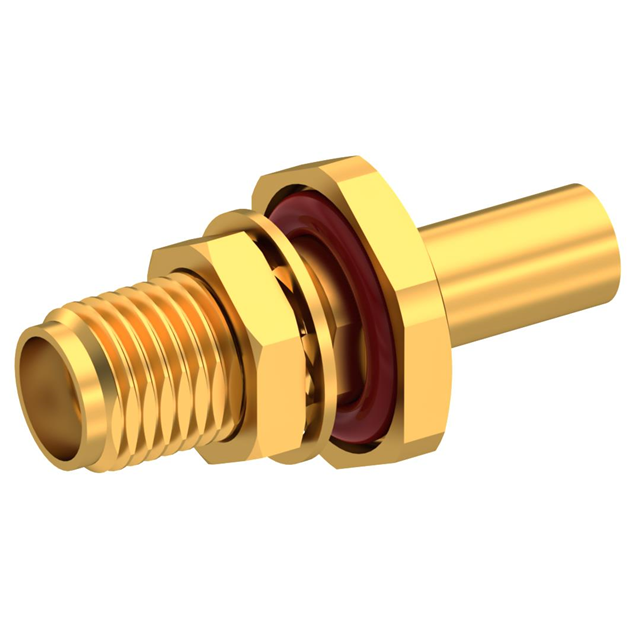

SMA / STRAIGHT BULKHEAD JACK PAN
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Finish | Voltage Rating | Center Contact Plating | Body Material | Fastening Type | Contact Termination | Center Contact Material | Impedance | Shield Termination | Mounting Type | Connector Type | Frequency - Max [Max] | Connector Style | Number of Ports | Mounting Feature | Housing Color | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 105 ░C | -65 ░C | 500 | Gold | 250 V | Gold | Stainless Steel | Threaded | Solder | Beryllium Copper | 50 Ohms | Solder | Panel Mount | Female Socket Jack | 18 GHz | SMA | 1 | Bulkhead - Front Side Nut | Gold | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 165 °C | -65 ░C | 500 | Gold | 500 V | Gold | Stainless Steel | Threaded | Crimp | Beryllium Copper | 50 Ohms | Crimp | Panel Mount | Female Socket Jack | 12.4 GHz | SMA | 1 | Bulkhead - Front Side Nut | Gold | RG-316DS |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 105 ░C | -65 ░C | 500 | Gold | 250 V | Gold | Stainless Steel | Threaded | Solder | Beryllium Copper | 50 Ohms | Solder | Panel Mount | Female Socket Jack | 18 GHz | SMA | 1 | Bulkhead - Front Side Nut | Gold | RG-405 (.085" Semi Rigid) |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 105 ░C | -65 ░C | 500 | Gold | 500 V | Gold | Stainless Steel | Threaded | Solder | Beryllium Copper | 50 Ohms | Solder | Panel Mount | Female Socket Jack | 18 GHz | SMA | 1 | Bulkhead - Front Side Nut | Gold |
