741W-J Series
Manufacturer: Qualtek
Beta
⌘K

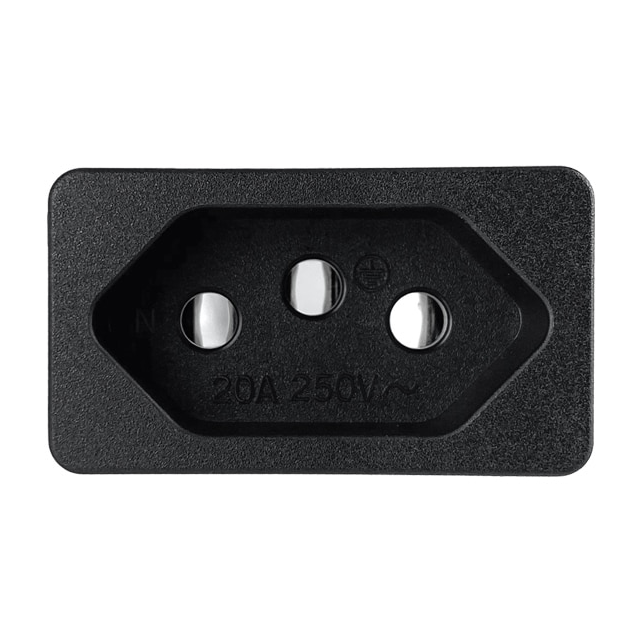

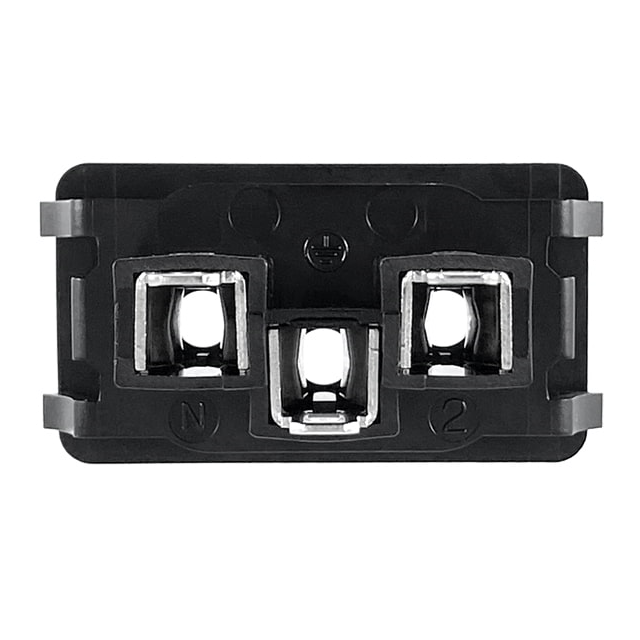

SNAP-IN BRAZIL OUTLET RECEPTACLE
| Part | Panel Thickness [Min] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Termination | Termination | Termination | Approval Agency | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Connector Type | Mounting Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 0.039 in | 1 mm | 0.078 in | 2 mm | 0.189 " | 4.8 mm | Quick Connect | TUV | 21.7 mm | 40.5 mm | Receptacle Female Sockets | Panel Mount Snap-In | NBR 14136 |
 Qualtek | 0.039 in | 1 mm | 0.078 in | 2 mm | 0.25 " | 6.3 mm | Quick Connect | TUV | 21.7 mm | 40.5 mm | Receptacle Female Sockets | Panel Mount Snap-In | NBR 14136 |
