0034.1510 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

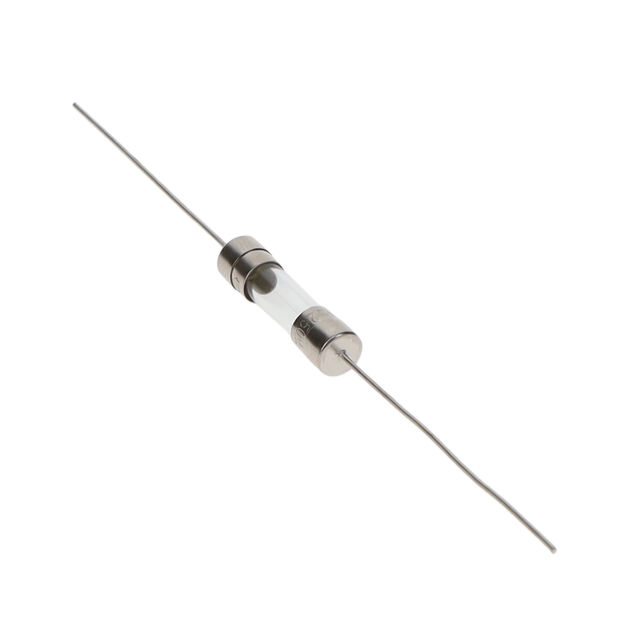

FUSE GLASS 250MA 250VAC 5X20MM
| Part | Voltage Rating - AC | Current Rating (Amps) | Package / Case [y] | Package / Case | Package / Case [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Melting I²t | Mounting Type | Fuse Type | Breaking Capacity @ Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 250 V | 0.25 A | 20 mm | Axial | 5 mm | 0.213 in | 0.886 in | 22.5 mm | 5.4 mm | Fast Blow | -55 C | 125 °C | 0.0159 | Through Hole | Cartridge Glass | 35 A |
