02K109 Series
Manufacturer: Rosenberger
Beta
⌘K
PRECISION 2.92 ADAPTER
| Part | Dielectric Material | Insertion Loss | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Body Material | Center Contact Plating | Mounting Type | Convert To (Adapter End) | Convert To (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Frequency - Max [Max] | Center Gender | Conversion Type | Adapter Series | Impedance | Style | Adapter Type | Convert To (Adapter End) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

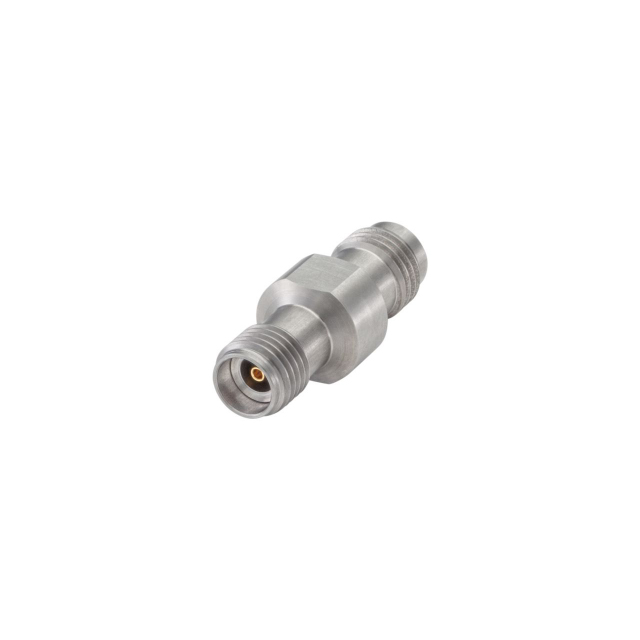

 Rosenberger | Polystyrene (PS) | 0.32 dB | 500 | 85 °C | -40 C | Beryllium Copper | Stainless Steel | Gold | Free Hanging (In-Line) | 2.4 mm | (APC-2.4 OS-50) Jack Female Socket | OS-2.9 | Jack Female Socket | 2.92 mm | 40 GHz | Female to Female | Between Series | RPC-2.40 RPC-2.92 | 50 Ohms | Straight | Jack to Jack | |

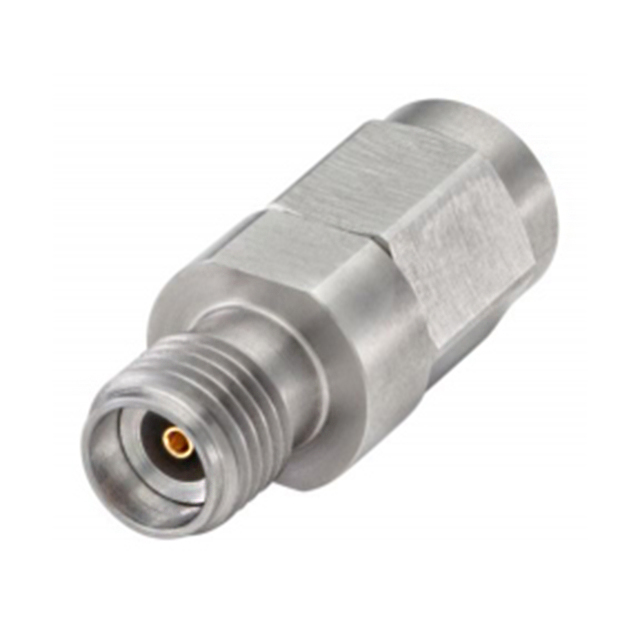

 Rosenberger | Polystyrene (PS) | 0.32 dB | 500 | 85 °C | -40 C | Beryllium Copper | Stainless Steel | Gold | Free Hanging (In-Line) | OS-2.9 | Jack Female Socket | 2.92 mm | 40 GHz | Between Series | RPC-2.40 RPC-2.92 | 50 Ohms | Straight | Plug to Jack | 2.4 mm |
