NWE49 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN PCI EXP FMALE 98POS 0.039
| Part | Material - Insulation | Contact Finish Thickness | Contact Type | Contact Finish | Card Type | Contact Material | Pitch | Pitch | Gender | Number of Rows [custom] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Features | Card Thickness | Card Thickness | Color | Read Out | Number of Positions | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

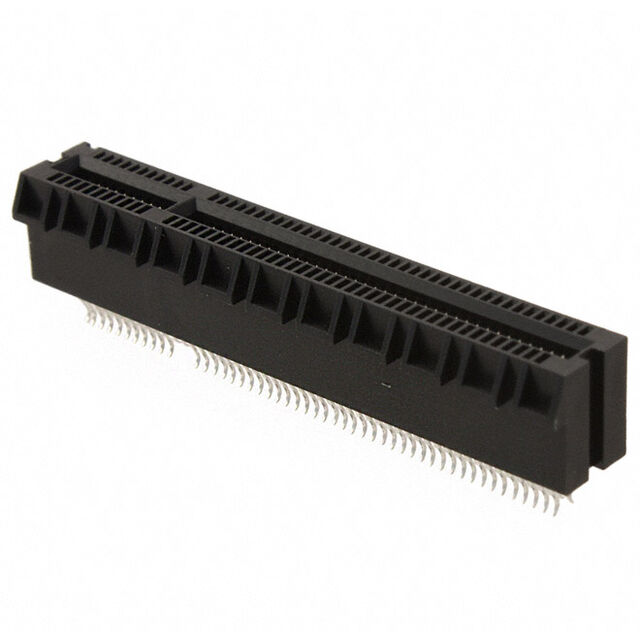

 Sullins Connector Solutions | Polyamide (PA46) Nylon 4/6 | Flash | Cantilever | Gold | PCI Express™ | Phosphor Bronze | 1 mm | 0.039 in | Female | 2 | Solder | -55 C | 105 ░C | Card Extender Locking Ramp | 1.57 mm | 0.062 in | Black | Dual | 98 | 38 | 11 | Board Edge Straddle Mount |

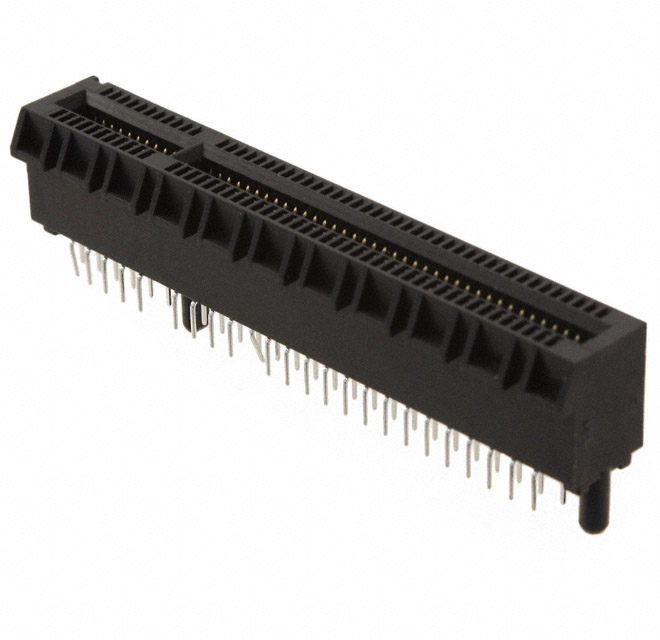

 Sullins Connector Solutions | Polyamide (PA46) Nylon 4/6 | Flash | Cantilever | Gold | PCI Express™ | Phosphor Bronze | 1 mm | 0.039 in | Female | 2 | Solder Staggered | -55 C | 85 °C | Board Guide Locking Ramp | 1.57 mm | 0.062 in | Black | Dual | 98 | 38 | 11 | Through Hole |
