090571 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Material Flammability Rating	Style	Features	Termination	Connector Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Finish - Post	Number of Rows	Contact Finish - Mating	Contact Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Color	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Mounting Type	Number of Positions Loaded

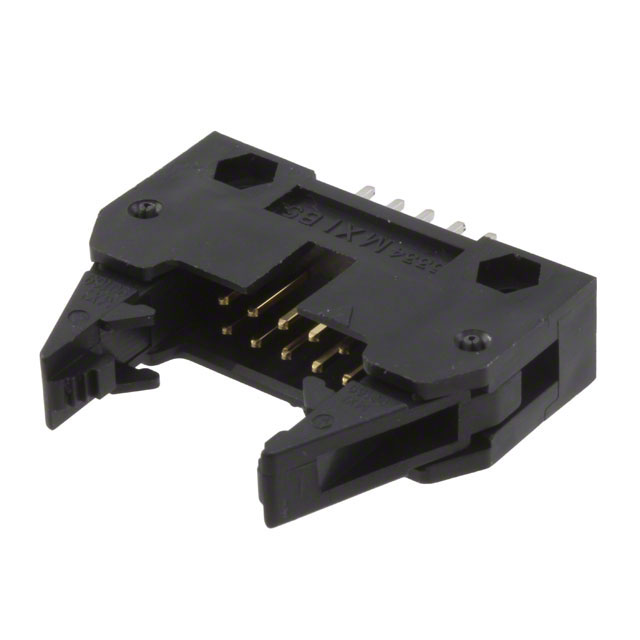

Molex 0905711101	UL94 V-0	Board to Cable/Wire	Mounting Flange	Solder	Header	Shrouded - 4 Wall	0.099 µm	3.9 µin	Polyester Glass Filled	Tin	2	Gold	Brass	Square	3 µm	118.1 µin	16.7 mm	0.657 in	0.1 in	2.54 mm	10	Black	Male Pin	2.54 mm	0.1 in	Latch Lock/Eject Hooks	0.228 in	5.8 mm	3.5 mm	0.138 in	Through Hole	All

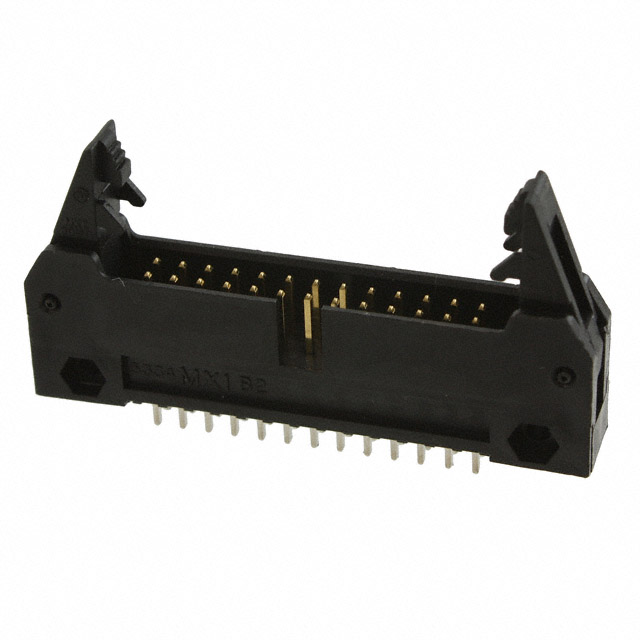

Molex 0905711261	UL94 V-0	Board to Cable/Wire	Mounting Flange	Solder	Header	Shrouded - 4 Wall	0.099 µm	3.9 µin	Polyester Glass Filled	Tin	2	Gold	Brass	Square	3 µm	118.1 µin	16.7 mm	0.657 in	0.1 in	2.54 mm	26	Black	Male Pin	2.54 mm	0.1 in	Latch Lock/Eject Hooks	0.228 in	5.8 mm	3.5 mm	0.138 in	Through Hole	All
Molex 0905711401	UL94 V-0	Board to Cable/Wire	Mounting Flange	Solder	Header	Shrouded - 4 Wall	0.099 µm	3.9 µin	Polyester Glass Filled	Tin	2	Gold	Brass	Square	3 µm	118.1 µin	16.7 mm	0.657 in	0.1 in	2.54 mm	40	Black	Male Pin	2.54 mm	0.1 in	Latch Lock/Eject Hooks	0.228 in	5.8 mm	3.5 mm	0.138 in	Through Hole	All

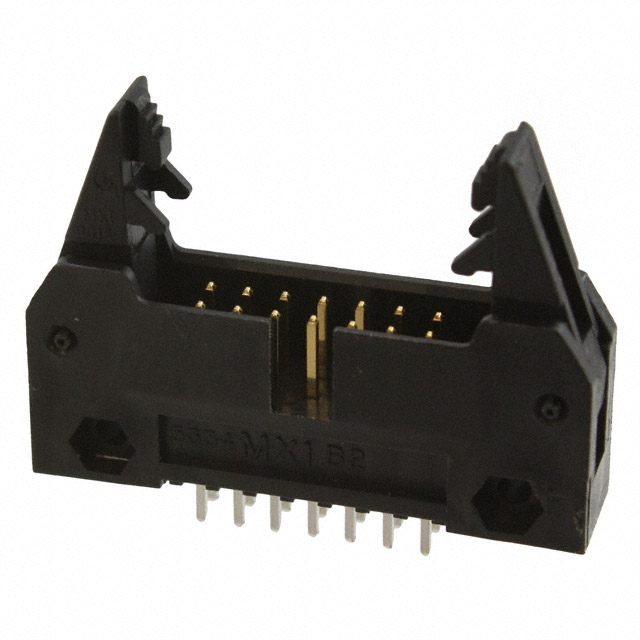

Molex 0905711141	UL94 V-0	Board to Cable/Wire	Mounting Flange	Solder	Header	Shrouded - 4 Wall	0.099 µm	3.9 µin	Polyester Glass Filled	Tin	2	Gold	Brass	Square	3 µm	118.1 µin	16.7 mm	0.657 in	0.1 in	2.54 mm	14	Black	Male Pin	2.54 mm	0.1 in	Latch Lock/Eject Hooks	0.228 in	5.8 mm	3.5 mm	0.138 in	Through Hole	All

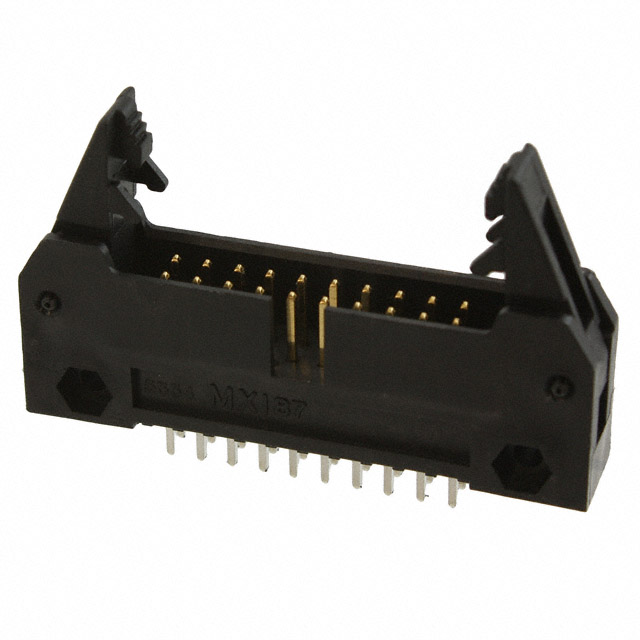

Molex 0905711201	UL94 V-0	Board to Cable/Wire	Mounting Flange	Solder	Header	Shrouded - 4 Wall	0.099 µm	3.9 µin	Polyester Glass Filled	Tin	2	Gold	Brass	Square	3 µm	118.1 µin	16.7 mm	0.657 in	0.1 in	2.54 mm	20	Black	Male Pin	2.54 mm	0.1 in	Latch Lock/Eject Hooks	0.228 in	5.8 mm	3.5 mm	0.138 in	Through Hole	All
