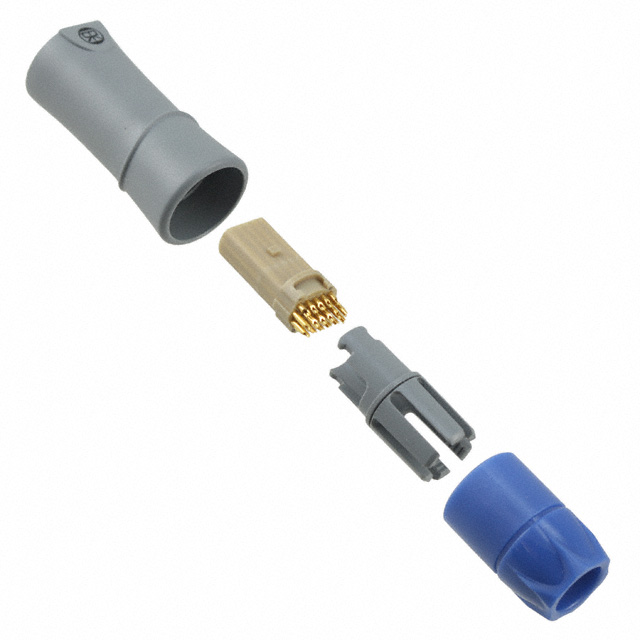

XRN.M22 Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 22P SOLDER CUP

Part	Current Rating (Amps)	Color	Fastening Type	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Orientation	Shell Material	Ingress Protection	Features	Contact Finish - Mating	Connector Type	Applications	Shielding	Primary Material	Mounting Type	Backshell Material, Plating	Insert Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Cable Opening
LEMO XRN.M22.GLL.6A	2 A	Blue Gray	Push-Pull	6.5 mm	0.209 in	0.256 in	5.3 mm	N (Normal)	Sulfone	IP50 - Dust Protected	Backshell	Gold	Receptacle Female Sockets	Industrial Medical Testing Equipment & Measurement	Unshielded	Plastic	Free Hanging (In-Line)	Sulfone	Polyetheretherketone (PEEK)	22	170 °C	-50 °C	M22
LEMO XRN.M22.GLL.6G	2 A	Gray	Push-Pull	6.5 mm	0.209 in	0.256 in	5.3 mm	N (Normal)	Sulfone	IP50 - Dust Protected	Backshell	Gold	Receptacle Female Sockets	Industrial Medical Testing Equipment & Measurement	Unshielded	Plastic	Free Hanging (In-Line)	Sulfone	Polyetheretherketone (PEEK)	22	170 °C	-50 °C	M22
LEMO XRN.M22.GLL.5G	2 A	Gray	Push-Pull		0.157 in	0.205 in		N (Normal)	Sulfone	IP50 - Dust Protected	Backshell	Gold	Receptacle Female Sockets	Industrial Medical Testing Equipment & Measurement	Unshielded	Plastic	Free Hanging (In-Line)	Sulfone	Polyetheretherketone (PEEK)	22	170 °C	-50 °C	M22	4 mm 5.2 mm
