78035 Series
Manufacturer: ALPHA WIRE
Catalog

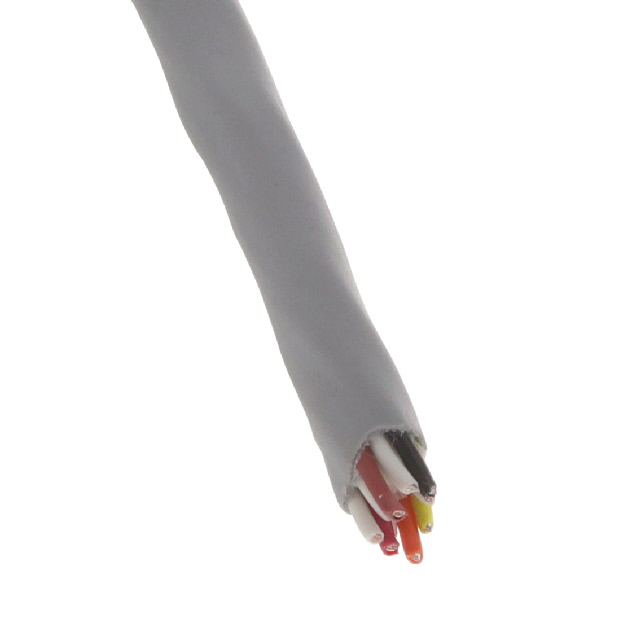

MULTI-PAIR 10COND 22AWG
| Part | Jacket Color | Conductor Material | Conductor Insulation | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Wire Gauge | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Number of Conductors | Cable Type | Jacket (Insulation) Material | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | Copper Tinned | Polyphenylene Ether Modified (mPPE) | 0.381 mm | 0.015 in | 0.239 " | 6.07 mm | Biological Compatibility Rip Cord | 22 AWG | 300 VDC | 80 °C | -40 C | ISO 10993 UL Style 21460 | 10 | Multi-Pair | Polyphenylene Ether Modified (mPPE) | 304.8 m | 1000 ft | 34 AWG | 19 |
