76385 Series

Catalog

CONN HEADER VERT 14POS 2.54MM

Part	Number of Rows	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Material	Contact Type	Shrouding	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Style	Termination	Contact Finish - Mating	Current Rating (Amps)	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions
Amphenol ICC (FCI) 76385-307PLF	2	Through Hole	125 °C	-40 °C	30 Áin	0.76 Ám	Header	Black	2.54 mm	0.1 in	Friction Lock	Copper Alloy	Male Pin	Shrouded - 2 Wall	9.35 mm	0.368 in	2 çm	78.7 çin	14	Board to Cable/Wire	Solder	Gold GXT™	3 A	Square	0.1 in	2.54 mm	All	Tin	0.197 in	5 mm	UL94 V-0	0.134 in	3.4 mm

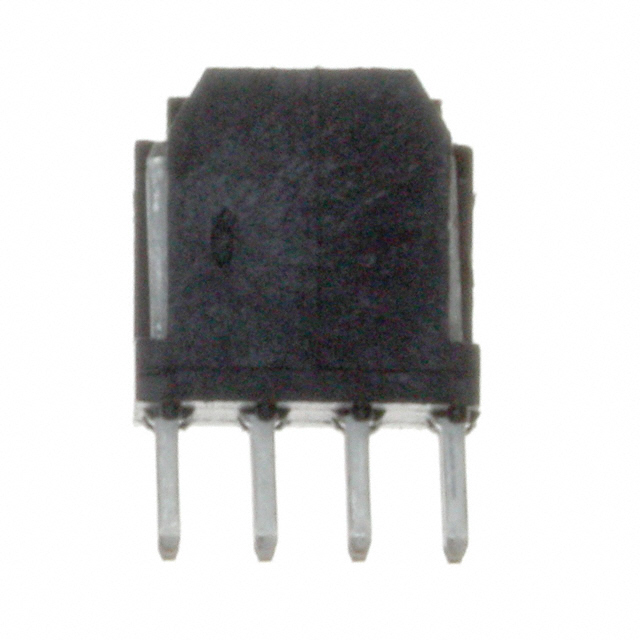

Amphenol ICC (FCI) 76385-404LF	2	Through Hole	125 °C	-40 °C	78.7 µin	2 µm	Header	Black	2.54 mm	0.1 in	Friction Lock	Copper Alloy	Male Pin	Shrouded - 2 Wall	9.35 mm	0.368 in	2 çm	78.7 çin	8	Board to Cable/Wire	Solder		3 A	Square	0.1 in	2.54 mm	All	Tin	0.197 in	5 mm	UL94 V-0	0.134 in	3.4 mm
Amphenol ICC (FCI) 76385-306	2	Through Hole			30 Áin	0.76 Ám	Header	Blue	2.54 mm	0.1 in	Friction Lock	Copper Alloy	Male Pin	Shrouded - 2 Wall	9.35 mm	0.368 in	3.81 Ám	150 Áin	12	Board to Cable/Wire	Solder	Gold		Square	0.1 in	2.54 mm	All	Tin-Lead	0.197 in	5 mm	UL94 V-0	0.134 in	3.4 mm
Amphenol ICC (FCI) 76385-308	2	Through Hole			30 Áin	0.76 Ám	Header	Blue	2.54 mm	0.1 in	Friction Lock	Copper Alloy	Male Pin	Shrouded - 2 Wall	9.35 mm	0.368 in	3.81 Ám	150 Áin		Board to Cable/Wire	Solder	Gold		Square	0.1 in	2.54 mm	All	Tin-Lead	0.197 in	5 mm	UL94 V-0	0.134 in	3.4 mm	16
Amphenol ICC (FCI) 76385-412	2	Through Hole			196.9 µin	5 µm	Header	Blue	2.54 mm	0.1 in	Friction Lock	Copper Alloy	Male Pin	Shrouded - 2 Wall	9.35 mm	0.368 in	3.81 Ám	150 Áin	24	Board to Cable/Wire	Solder	Tin-Lead		Square	0.1 in	2.54 mm	All	Tin-Lead	0.197 in	5 mm	UL94 V-0	0.134 in	3.4 mm
Amphenol ICC (FCI) 76385-417	2	Through Hole			196.9 µin	5 µm	Header	Blue	2.54 mm	0.1 in	Friction Lock	Copper Alloy	Male Pin	Shrouded - 2 Wall	9.35 mm	0.368 in	3.81 Ám	150 Áin	34	Board to Cable/Wire	Solder	Tin-Lead		Square	0.1 in	2.54 mm	All	Tin-Lead	0.197 in	5 mm	UL94 V-0	0.134 in	3.4 mm
Amphenol ICC (FCI) 76385-313	2	Through Hole			30 Áin	0.76 Ám	Header	Blue	2.54 mm	0.1 in	Friction Lock	Copper Alloy	Male Pin	Shrouded - 2 Wall	9.35 mm	0.368 in	3.81 Ám	150 Áin	26	Board to Cable/Wire	Solder	Gold		Square	0.1 in	2.54 mm	All	Tin-Lead	0.197 in	5 mm	UL94 V-0	0.134 in	3.4 mm
Amphenol ICC (FCI) 76385-413	2	Through Hole			196.9 µin	5 µm	Header	Blue	2.54 mm	0.1 in	Friction Lock	Copper Alloy	Male Pin	Shrouded - 2 Wall	9.35 mm	0.368 in	3.81 Ám	150 Áin	26	Board to Cable/Wire	Solder	Tin-Lead		Square	0.1 in	2.54 mm	All	Tin-Lead	0.197 in	5 mm	UL94 V-0	0.134 in	3.4 mm

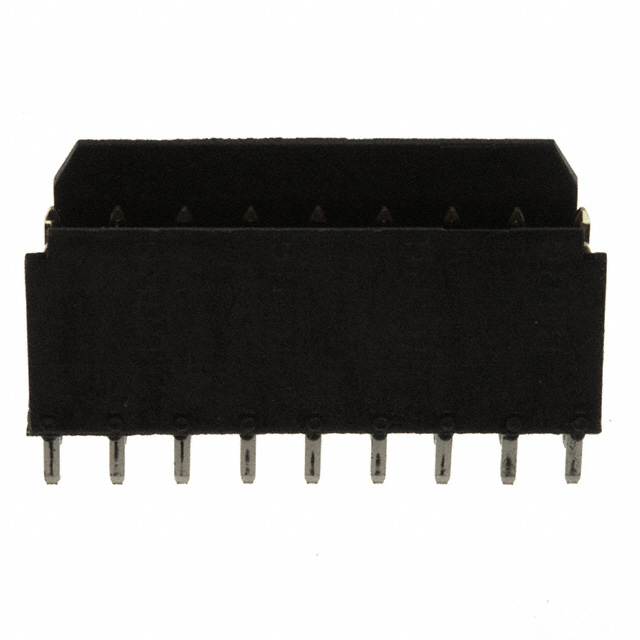

Amphenol ICC (FCI) 76385-309LF	2	Through Hole	125 °C	-40 °C	30 Áin	0.76 Ám	Header	Black	2.54 mm	0.1 in	Friction Lock	Copper Alloy	Male Pin	Shrouded - 2 Wall	9.35 mm	0.368 in	2 çm	78.7 çin	18	Board to Cable/Wire	Solder	Gold GXT™	3 A	Square	0.1 in	2.54 mm	All	Tin	0.197 in	5 mm	UL94 V-0	0.134 in	3.4 mm

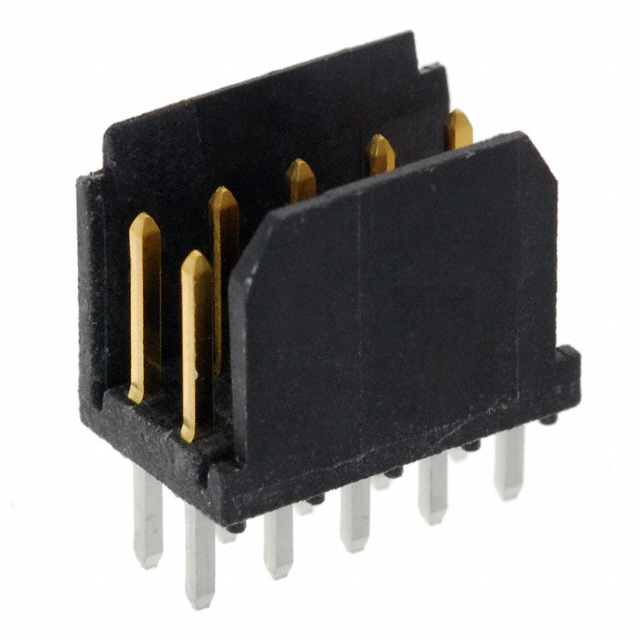

Amphenol ICC (FCI) 76385-305LF	2	Through Hole	125 °C	-40 °C	30 Áin	0.76 Ám	Header	Black	2.54 mm	0.1 in	Friction Lock	Copper Alloy	Male Pin	Shrouded - 2 Wall	9.35 mm	0.368 in	2 çm	78.7 çin	10	Board to Cable/Wire	Solder	Gold GXT™	3 A	Square	0.1 in	2.54 mm	All	Tin	0.197 in	5 mm	UL94 V-0	0.134 in	3.4 mm
